Toyota Corolla/trueno TE31 CARBURETOR ASSEMBLY

TE31R-KDFN (1975)

Toyota Corolla/Trueno

Production Mar 1975 - Apr 1980

Engine 2T

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

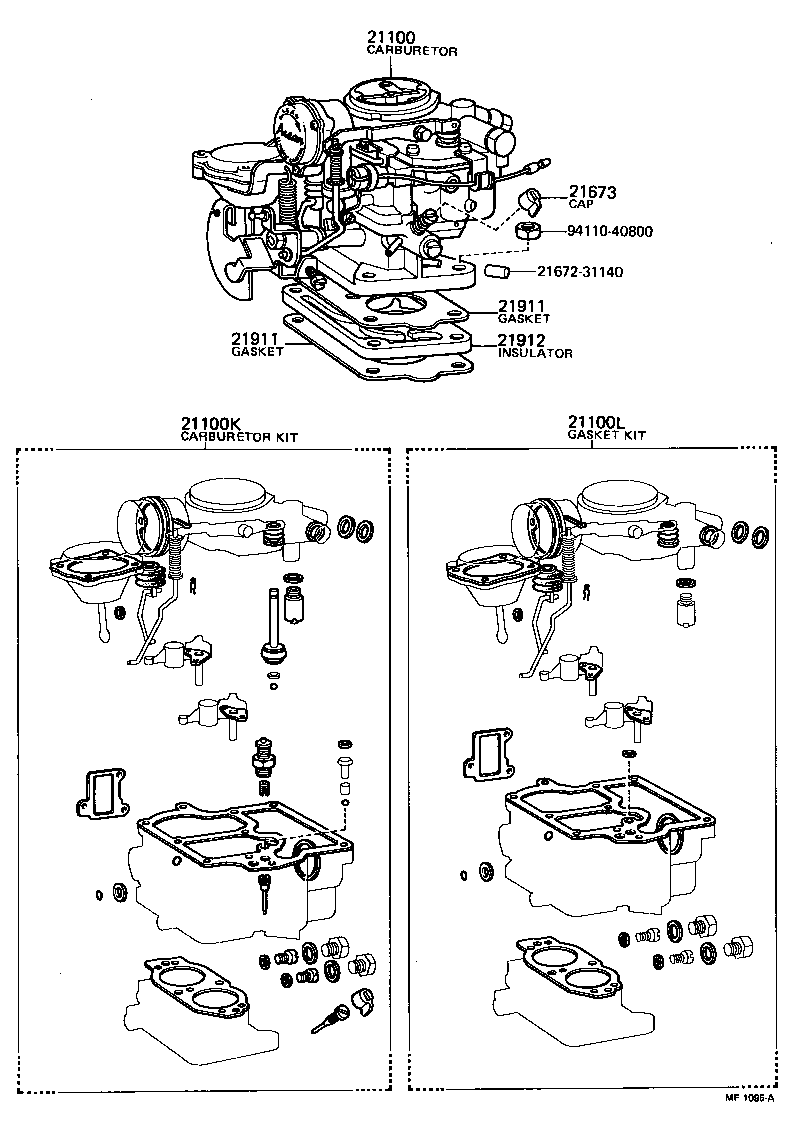

Click highlighted areas on diagram

Part #	Description	Period	Qty
21100 - CARBURETOR ASSY
21100-26500	2T..TE3#,47..RHD..MTM	11/1975 - 01/1976	1
21100-26320	2T..TE3#,47..RHD	08/1974 - 11/1975	1
21100-26502	2T..TE3#,47,51..RHD..MTM	03/1976 - 06/1976	1
21100-26501	2T..TE3#,47..RHD..MTM	01/1976 - 03/1976	1
21100-26503	2T..TE3#,47,51..RHD..MTM	06/1976 - 11/1976	1
21100-26660	2T..TE3#..MTM	11/1976 - 01/1977	1
21100-26661	2T..TE31..MTM	01/1977 - 04/1978	1
21100-26662	2T..TE31..MTM	04/1978 - 04/1980	1
21100K - CARBURETOR KIT
04211-26050	2T..TE3#,47	08/1974 - 11/1975	1
04211-26120	2T..TE3#,47	11/1975 - 01/1976	1
04211-26150	2T..TE3#,47,51	01/1976 - 04/1980	1
21100L - GASKET KIT, CARBURETOR
04212-26040	2T..TE3#,47,51	11/1975 - 04/1980	1
21673 - CAP, IDLE LIMIT
21673-24010	2T,2TB..TE3#,47,51	11/1975 - 04/1976	2
21673-36010	2T,2TB..TE3#,47	08/1974 - 11/1975	2
21911 - GASKET, CARBURETOR
21911-25010	2T,2TB..TE3#,47,51	08/1974 - 04/1980	2
21911 - GASKET, CARBURETOR
21911-25010	2T,2TB..TE3#,47,51	08/1974 - 04/1980	2
21912 - INSULATOR, CARBURETOR HEAT
21912-25010	2T..TE3#,47	08/1974 - 01/1976	1
21912-26020	2T..TE3#,47,51	01/1976 - 04/1980	1
Common parts
21672-31140
94110-40800

Click highlighted areas on diagram

Part #	Description	Period	Qty
21100 - CARBURETOR ASSY
21100-26500	2T..TE3#,47..RHD..MTM	11/1975 - 01/1976	1
21100-26320	2T..TE3#,47..RHD	08/1974 - 11/1975	1
21100-26502	2T..TE3#,47,51..RHD..MTM	03/1976 - 06/1976	1
21100-26501	2T..TE3#,47..RHD..MTM	01/1976 - 03/1976	1
21100-26503	2T..TE3#,47,51..RHD..MTM	06/1976 - 11/1976	1
21100-26660	2T..TE3#..MTM	11/1976 - 01/1977	1
21100-26661	2T..TE31..MTM	01/1977 - 04/1978	1
21100-26662	2T..TE31..MTM	04/1978 - 04/1980	1
21100K - CARBURETOR KIT
04211-26050	2T..TE3#,47	08/1974 - 11/1975	1
04211-26120	2T..TE3#,47	11/1975 - 01/1976	1
04211-26150	2T..TE3#,47,51	01/1976 - 04/1980	1
21100L - GASKET KIT, CARBURETOR
04212-26040	2T..TE3#,47,51	11/1975 - 04/1980	1
21673 - CAP, IDLE LIMIT
21673-24010	2T,2TB..TE3#,47,51	11/1975 - 04/1976	2
21673-36010	2T,2TB..TE3#,47	08/1974 - 11/1975	2
21911 - GASKET, CARBURETOR
21911-25010	2T,2TB..TE3#,47,51	08/1974 - 04/1980	2
21911 - GASKET, CARBURETOR
21911-25010	2T,2TB..TE3#,47,51	08/1974 - 04/1980	2
21912 - INSULATOR, CARBURETOR HEAT
21912-25010	2T..TE3#,47	08/1974 - 01/1976	1
21912-26020	2T..TE3#,47,51	01/1976 - 04/1980	1
Common parts
94110-40800
