KE55R-SHDQ (1978)

Toyota Corolla/Trueno

Production Aug 1978 - Jul 1981
Engine 4KC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8004- )KE38,55

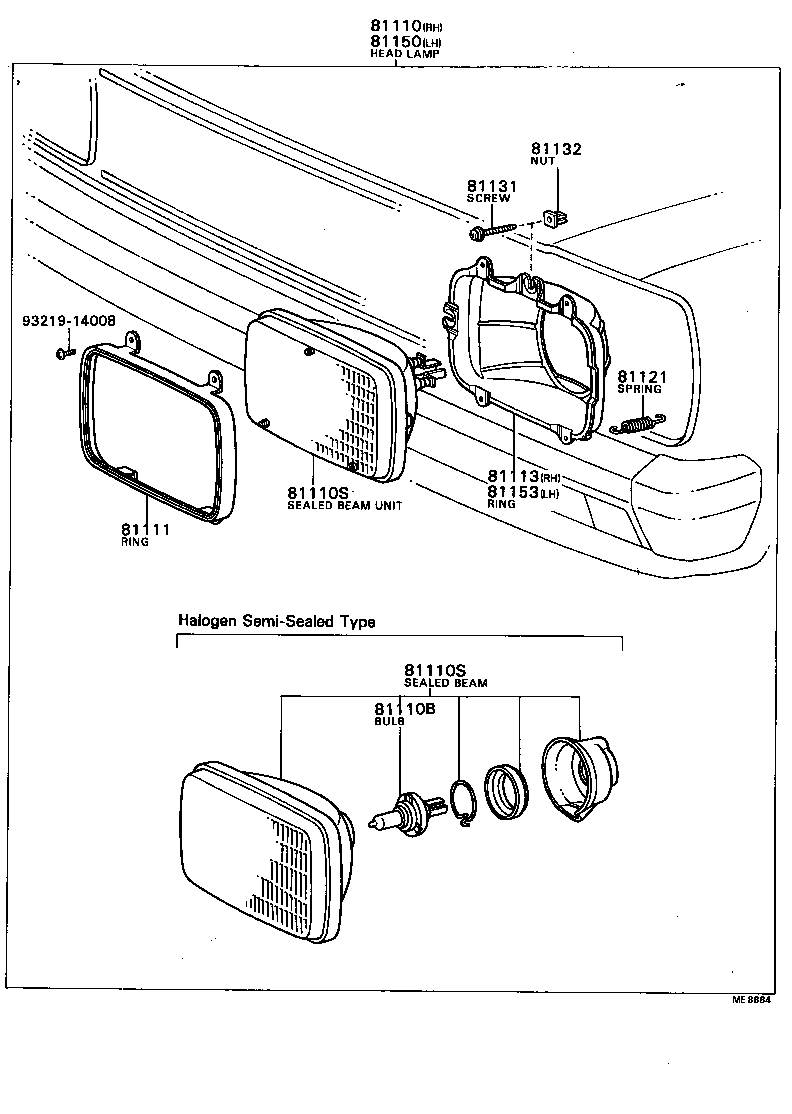

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81110S 81111 81113 81121 81131 81132 81150 81153 9321914008
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80023

KE38,55

*RET,KOITO

 1
81110-19955

KE38,55..DV,HT,SED,WG

IKI

 1
81110-80037

KE38,55

*RET,HALOGEN,KOITO

 1
81110-19945

KE38,55..DV,HT,SED,WG

KOITO

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

KE38,55

12V 60/55W,*HAL *WH,12V 60/55W,*RET,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04001

KE38,55

12V 65/55W,*WB,12V 65/55W,*RET,KOITO

 2
90981-01015

KE3#,5#,TE3#,47,51..RHD

12V 50/40W,KOITO

 2
90981-04011

KE38,55

12V 60/55W,*HWS,12V 60/55W,*RET,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04001

KE38,55

12V 65/55W,*WB,12V 65/55W,*RET,KOITO

 2
90981-01015

KE3#,5#,TE3#,47,51..RHD

12V 50/40W,KOITO

 2
90981-04011

KE38,55

12V 60/55W,*HWS,12V 60/55W,*RET,HALOGEN

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

KE38,55

*RET,KOITO

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16020

KE38,55

*RET,KOITO

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

KE38,55

KOITO

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

KE38,55

KOITO

 4
81132 - NUT, HEADLAMP SELF LOCKING
90189-05013

KE3#,5#,TE3#,51

 4
81150 - HEADLAMP ASSY, LH
81150-19885

KE38,55..DV,HT,SED,WG

KOITO

 1
81150-19895

KE38,55..DV,HT,SED,WG

IKI

 1
81150-80037

KE38,55

*RET,HALOGEN,*KOITO

 1
81150-80023

KE38,55

*RET,KOITO

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16020

KE38,55

*RET,KOITO

 1
Common parts
93219-14008
