KE55R-SHDQ (1978)

Toyota Corolla/Trueno

Production Aug 1978 - Jul 1981
Engine 4KC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8012- )4KC

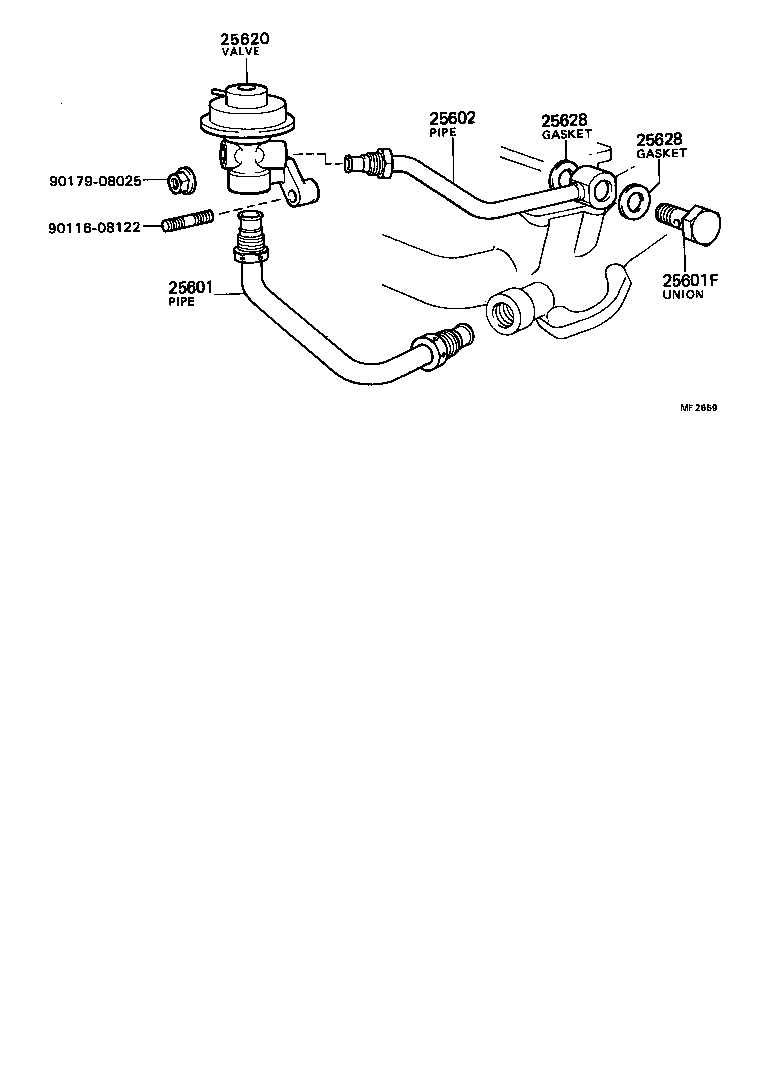

Click highlighted areas on diagram

diagram 25601 25601F 25602 25620 25628 25628 9011608122 9017908025
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-13030

4KC..KE38,55

 1
25601F - UNION(FOR EGR PIPE, NO.1)
90401-18005

4KC..KE38,55

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-13010

4KC..KE38,55

 1
25620 - VALVE ASSY, EGR
25620-13120

4KC..KE55..3FC

 1
25628 - GASKET, EGR INLET
90430-18006

4KC..KE38,55

 1
25628 - GASKET, EGR INLET
90430-18006

4KC..KE38,55

 1
Common parts
90116-08122
90179-08025
