KE55R-SHDQ (1978)

Toyota Corolla/Trueno

Production Aug 1978 - Jul 1981
Engine 4KC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )4KC

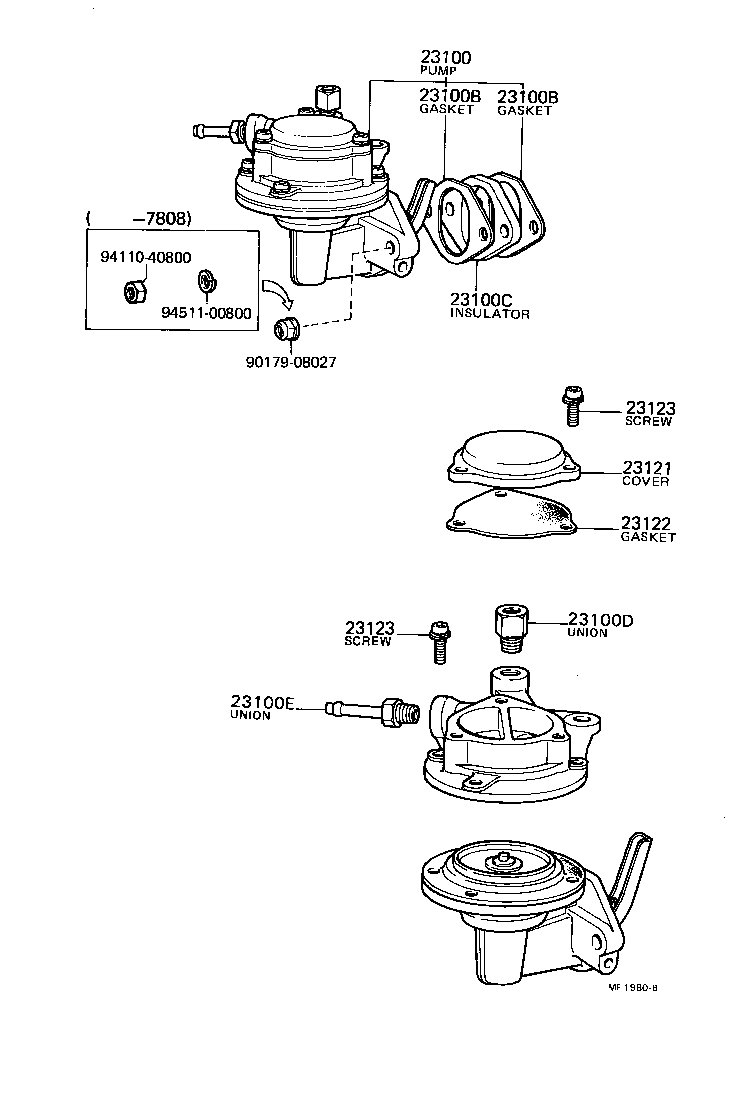

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23121 23122 23123 23123 9017908027 9411040800 9451100800
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19045

4KC..KE38,55

 1
23100B - GASKET, FUEL PUMP
90923-05006

3K#,4KC..KE3#,5#

 2
23100B - GASKET, FUEL PUMP
90923-05006

3K#,4KC..KE3#,5#

 2
23100C - INSULATOR, FUEL PUMP
90923-06003

3K#,4KC..KE3#,5#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
23116-24010

3K#,4KC..KE3#,5#

 1
23116-24010

4KC..KE38,55

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
90404-51244

3K#,4KC..KE3#,5#

 1
23121 - COVER, FUEL PUMP
23121-24040

4KC..KE38,55

 1
23122 - GASKET, FUEL PUMP COVER
23122-24040

4KC..KE38,55

 1
23123 - SCREW, COVER SET, NO.1
93319-15014

4KC..KE38,55

 8
23123 - SCREW, COVER SET, NO.1
93319-15014

4KC..KE38,55

 8
Common parts
90179-08027
94110-40800
94511-00800
