KE55R-SHDQ (1978)

Toyota Corolla/Trueno

Production Aug 1978 - Jul 1981
Engine 4KC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3K#,4KC ; (7408- )2T#

Click highlighted areas on diagram

diagram 27020 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330A 27330B 27350 27351 27353 27356 27357 27359 27362 27370 27371 27372 2737826020 2737838040 2738731011 2738745022 27410 27411 27412 27441 2744724061 9009900862 9009902310 9009902310 9009904259 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908023 9017906158 9411041000 9451101000 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-13060

3KH,4KC..KE3#,55

12V 40A,12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-15030

3KH,4KC..KE3#,55

12V 40A

 1
27039-18011

3KH,4KC..KE3#,55

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-31011

3K#,4KC,2T#..KE3#,5#,TE3#,47,51

12V 40A,45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-13050

3KH,4KC..KE3#,55

12V 40A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

3K#,4KC..KE3#,5#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10126

3KH,4KC..KE3#,55

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004

3K#,4KC,2T#..KE3#,5#,TE3#,47,51

12V 40A,45A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27313-31011

3K#,4KC,2T#..KE3#,5#,TE3#,47,51

12V 40A,45A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

3KH,4KC..KE3#,55

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

3KH,4KC..KE3#,55

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

3KH,4KC..KE3#,55

12V 40A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15030

3KH,4KC..KE3#,55

12V 40A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

3K#,4KC,2T#..KE3#,5#,TE3#,47,51

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

3K#,4KC,2T#..KE3#,5#,TE3#,47,51

 2
27410 - STATOR ASSY, ALTERNATOR
27410-15030

3KH,4KC..KE3#,55

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

3K#,4KC..KE3#,5#

12V 40A,45A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

3K#,4KC..KE3#,5#

 1
Common parts
27378-26020
27378-38040
27387-31011
27387-45022
27447-24061
90099-00862
90099-02310
90099-04259
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08023
90179-06158
94110-41000
94511-01000
94511-01400
94612-11001

(7908- )3KH,4KC

Click highlighted areas on diagram

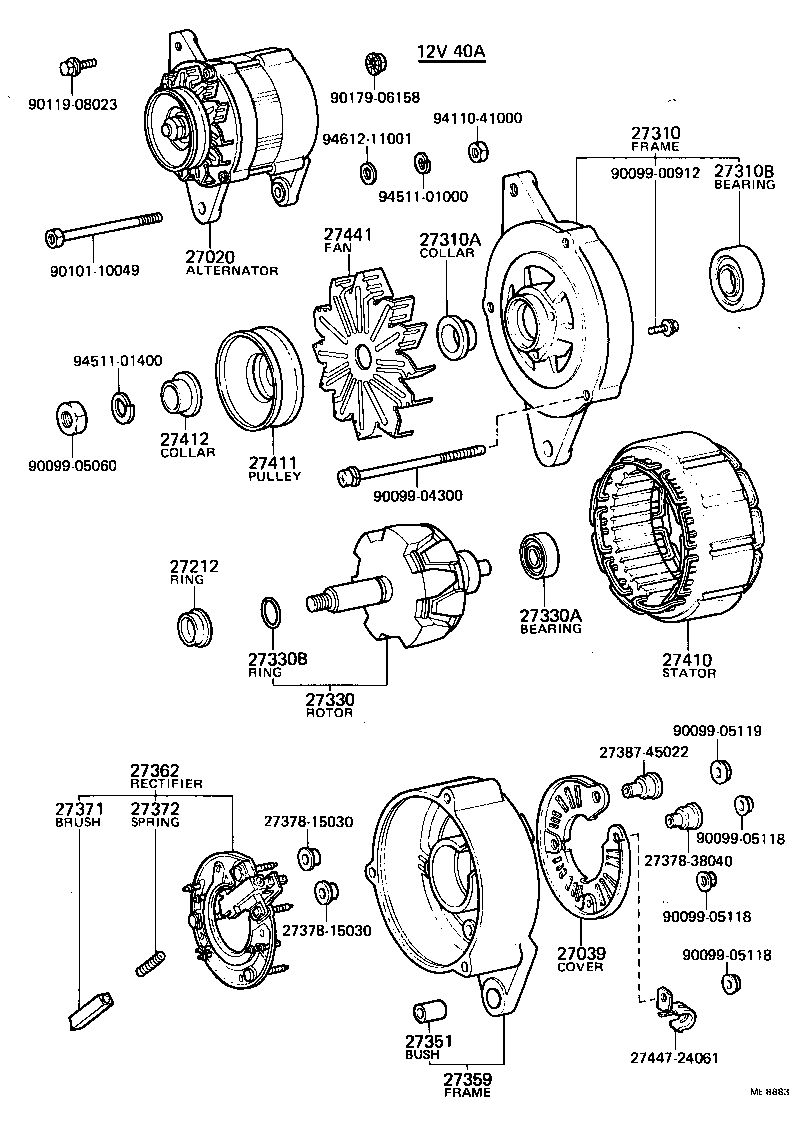

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27351 27359 27362 27371 27372 2737815030 2737815030 2737838040 2738745022 27410 27411 27412 27441 2744724061 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908023 9017906158 9411041000 9451101000 9451101400 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-13060

3KH,4KC..KE3#,55

12V 40A,12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-15030

3KH,4KC..KE3#,55

12V 40A

 1
27039-18011

3KH,4KC..KE3#,55

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-13050

3KH,4KC..KE3#,55

12V 40A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

3K#,4KC..KE3#,5#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10126

3KH,4KC..KE3#,55

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

3KH,4KC..KE3#,55

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10111

3KH,4KC..KE3#,55

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

3KH,4KC..KE3#,55

12V 40A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-15030

3KH,4KC..KE3#,55

12V 40A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

3K#,4KC,2T#..KE3#,5#,TE3#,47,51

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

3K#,4KC,2T#..KE3#,5#,TE3#,47,51

 2
27410 - STATOR ASSY, ALTERNATOR
27410-15030

3KH,4KC..KE3#,55

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

3K#,4KC..KE3#,5#

12V 40A,45A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

3K#,4KC..KE3#,5#

 1
Common parts
27378-15030
27378-38040
27387-45022
27447-24061
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08023
90179-06158
94110-41000
94511-01000
94511-01400
94612-11001
