KE55R-SHDQ (1978)

Toyota Corolla/Trueno

Production Aug 1978 - Jul 1981
Engine 4KC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )4KC

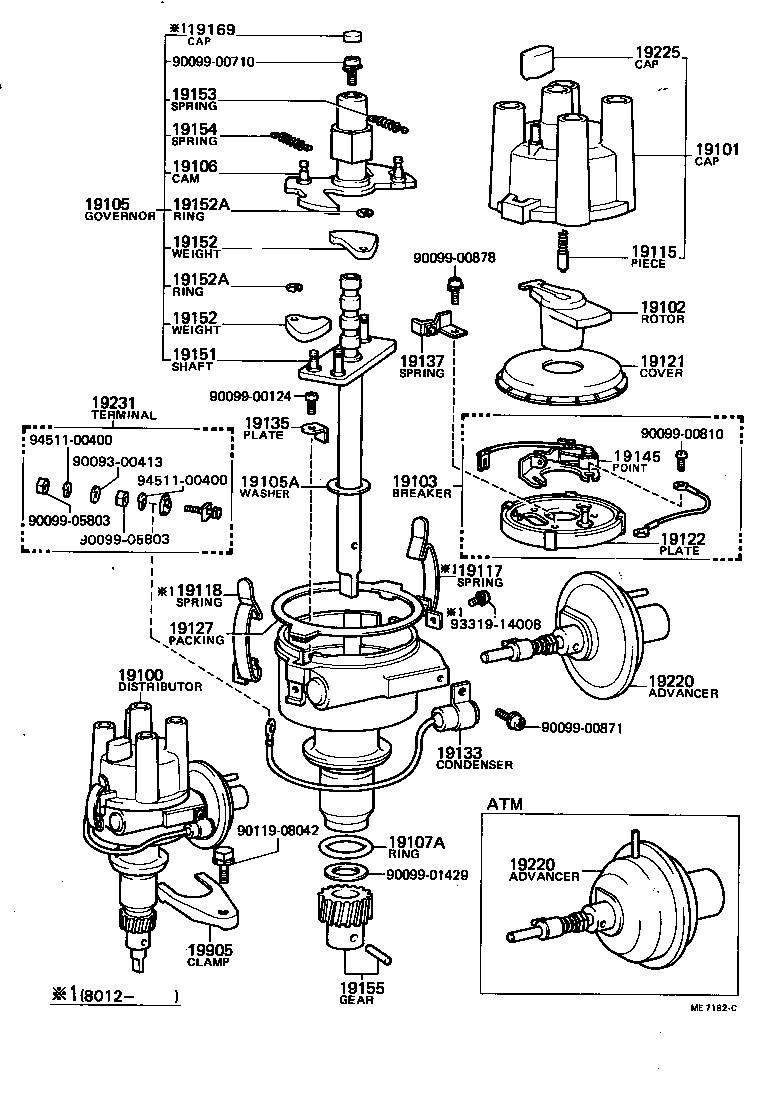

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19105A 19106 19107A 19115 19117 19118 19121 19122 19127 19133 19135 19137 19145 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19220 19225 19231 19905 9009300413 9009900124 9009900710 9009900810 9009900871 9009900878 9009901429 9009905803 9009905803 9011908042 9331914008 9451100400 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-13040

4KC..KE55..3FC

 1
19100-13031

4KC..KE38,55

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-25070

4KC..KE38,55

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-33012

4KC..KE38,55

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-13070

4KC..KE38,55

 1
19103-33013

4KC..KE38,55

 1
19103-33013

4KC..KE38,55

 1
19105 - GOVERNOR SUB-ASSY
19105-13030

4KC..KE38,55

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01386

4KC..KE38,55

T=2.7,T=2.7

 1
90099-01387

4KC..KE38,55

T=2.9,T=2.9

 1
90099-01412

4KC..KE38,55

T=2.3,T=2.3

 1
90099-01385

4KC..KE38,55

T=2.5,T=2.5

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-34013

4KC..KE38,55

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

3K#,4KC..KE3#,5#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3K#,4KC..KE3#,5#

 1
19117 - SPRING, DISTRIBUTOR CAP, A
19117-24080

4KC..KE38,55

 1
19118 - SPRING, DISTRIBUTOR CAP, B
19117-24080

4KC..KE38,55

 1
19121 - COVER, DUST PROOF
19121-38030

4KC..KE38,55

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-33013

4KC..KE38,55

 1
19127 - PACKING, DUST PROOF
19127-88251

4KC..KE38,55

 1
19135 - PLATE, HOLDER
19135-24080

4KC..KE38,55

 2
19145 - POINT, DISTRIBUTOR
19145-26060

3K#,4KC..KE3#,5#

 1
19151 - SHAFT, GOVERNOR
19151-24081

4KC..KE38,55

 1
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07104

4KC..KE38,55

 2
90099-07109

4KC..KE38,55

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07104

4KC..KE38,55

 2
90099-07109

4KC..KE38,55

 2
19153 - SPRING, GOVERNOR, A
19153-13030

4KC..KE38,55

 1
19154 - SPRING, GOVERNOR, B
19154-13030

4KC..KE38,55

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-24081

4KC..KE38,55

 1
19169 - STOPPER, CAM GREASE
19169-32010

4KC..KE38,55

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-13040

4KC..KE55..3FC

 1
19220-13032

4KC..KE38,55

 1
19220-13031

4KC..KE38,55

 1
19220-13031

4KC..KE38,55

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-13040

4KC..KE55..3FC

 1
19220-13032

4KC..KE38,55

 1
19220-13031

4KC..KE38,55

 1
19220-13031

4KC..KE38,55

 1
19225 - CAP, RUBBER
19225-25070

4KC..KE38,55

 1
19231 - TERMINAL, DISTRIBUTOR
19231-38011

4KC..KE38,55

 1
Common parts
90093-00413
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-01429
90099-05803
90119-08042
93319-14008
94511-00400
