KE55R-SHDQ (1978)
Toyota Corolla/Trueno
Production
Aug 1978
-
Jul 1981
Engine
4KC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

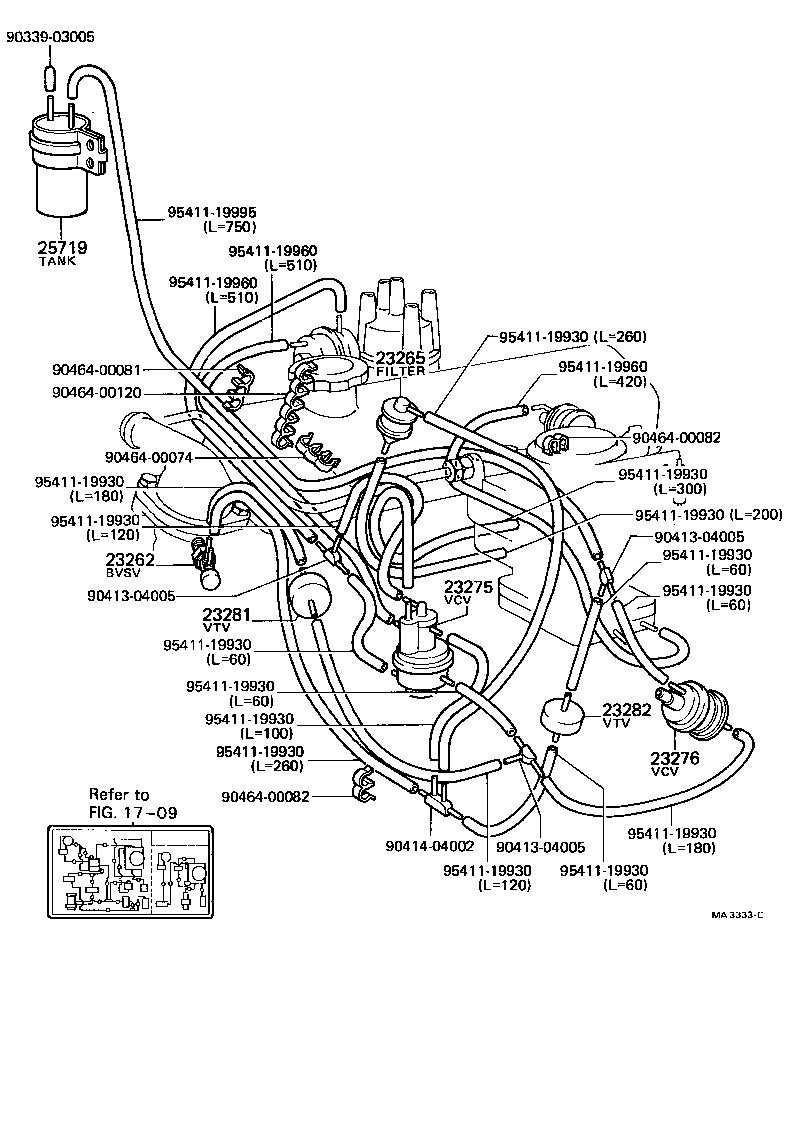

(7808-8012)4KC..KE55..3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-13020 |
4KC..KE55..3FC |
1 | ||
| 25810-24010 |
4KC..KE55..3FC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
4KC..KE55..3FC |
1 | ||
| 90917-11009 |
4KC..KE38,55 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03019 |
4KC..KE55..3FC |
1 | ||
| 90925-03113 |
4KC..KE38,55 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03073 |
4KC..KE55..3FC |
1 | ||
| 90925-03115 |
4KC..KE55..3FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01029 |
4KC..KE55..3FC |
1 | ||
| 90925-01062 |
4KC..KE38,55 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
4KC..KE55..3FC |
1 | ||
| 90925-01064 |
4KC..KE55..3FC |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-13010 |
4KC..KE55..3FC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00120 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 1709 | ||||

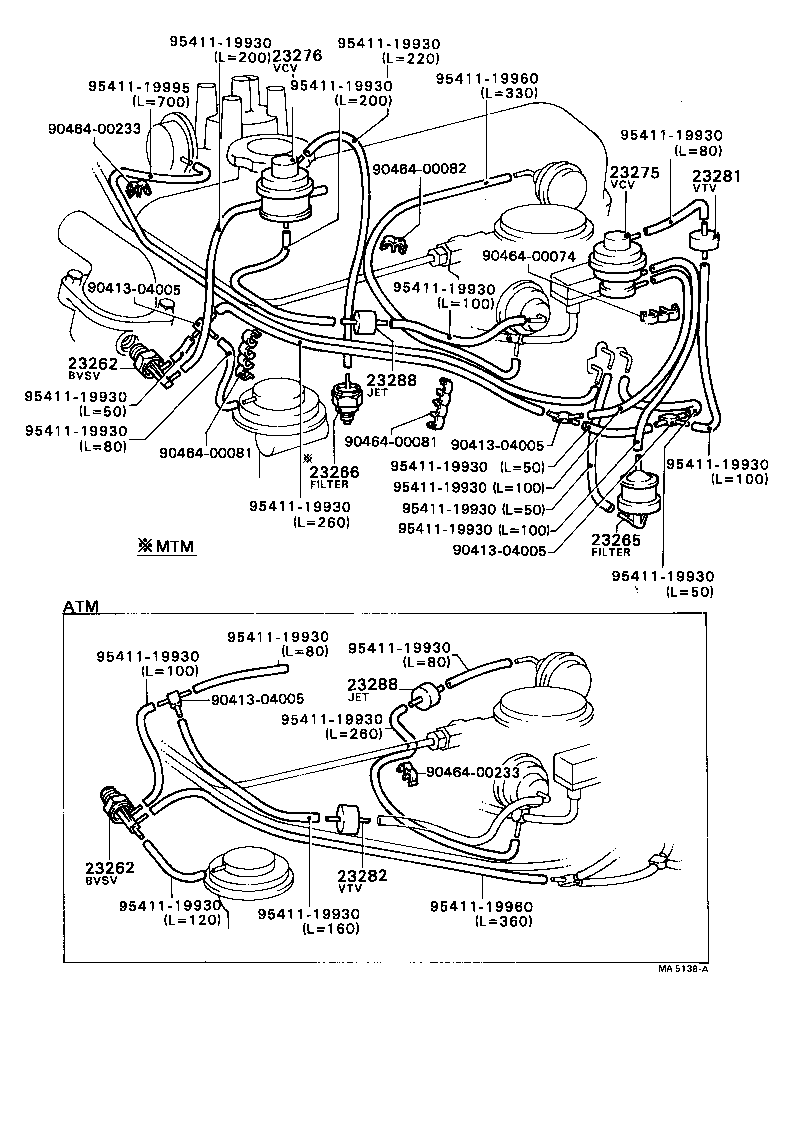

(8012- )4KC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-13020 |
4KC..KE55..3FC |
1 | ||
| 25810-24010 |
4KC..KE55..3FC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-13020 |
4KC..KE55..3FC |
1 | ||
| 25810-24010 |
4KC..KE55..3FC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
4KC..KE55..3FC |
1 | ||
| 90917-11009 |
4KC..KE38,55 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03019 |
4KC..KE55..3FC |
1 | ||
| 90925-03113 |
4KC..KE38,55 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03073 |
4KC..KE55..3FC |
1 | ||
| 90925-03115 |
4KC..KE55..3FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01029 |
4KC..KE55..3FC |
1 | ||
| 90925-01062 |
4KC..KE38,55 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
4KC..KE55..3FC |
1 | ||
| 90925-01064 |
4KC..KE55..3FC |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4KC..KE55..3FC |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4KC..KE55..3FC |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00233 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
