KE55R-SHDQ (1978)

Toyota Corolla/Trueno

Production Aug 1978 - Jul 1981
Engine 4KC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8012- )4KC

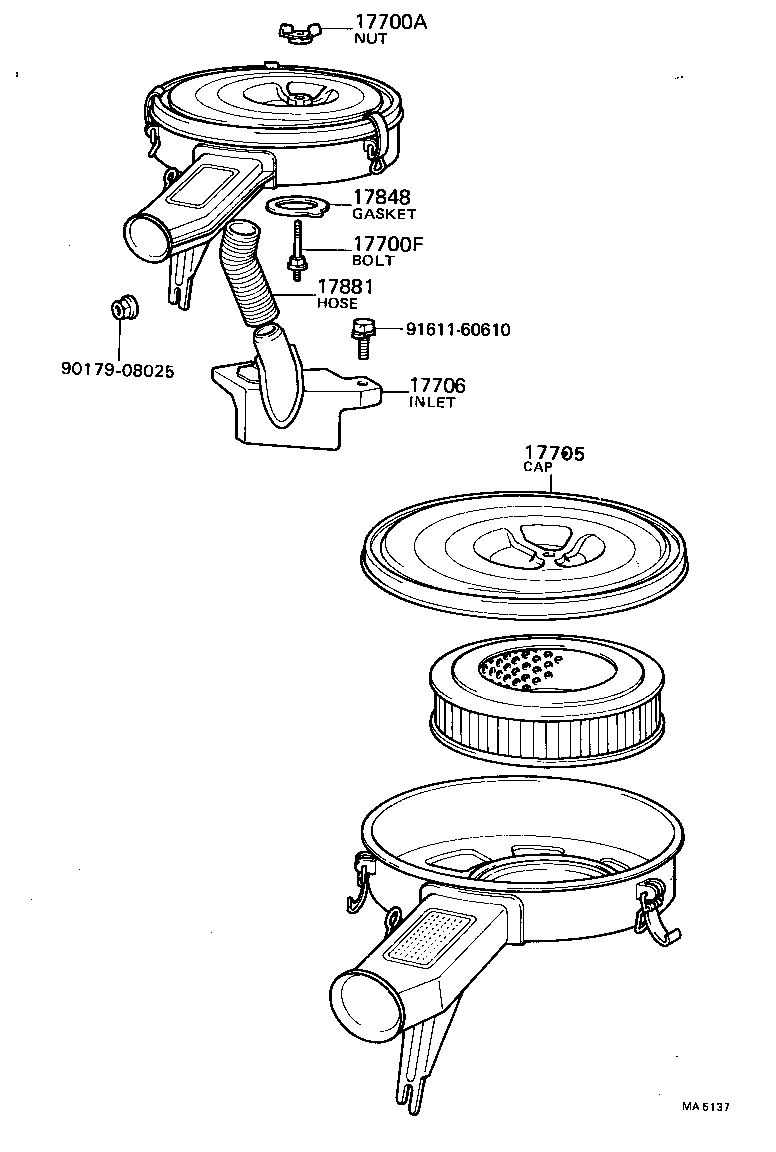

Click highlighted areas on diagram

diagram 17700A 17700F 17705 17706 17848 17881 9017908025 9161160610
Part # Description Qty Price
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

4KC..KE38,55

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

4KC..KE38,55

 1
90116-06131

3KC,3KH,4KC..KE3#,5#

L=102,S=12&30

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24170

4KC..KE38,55

 1
17705-24320

4KC..KE38,55

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17895-24010

4KC..KE38,55

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

3K#,4KC..KE3#,5#

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-13010

4KC..KE38,55

 1
Common parts
90179-08025
91611-60610
