Toyota Corolla/trueno KE50 INDICATOR

KE50R-LKD (1976)

Toyota Corolla/Trueno

Production Mar 1976 - Aug 1979

Engine 3KH

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

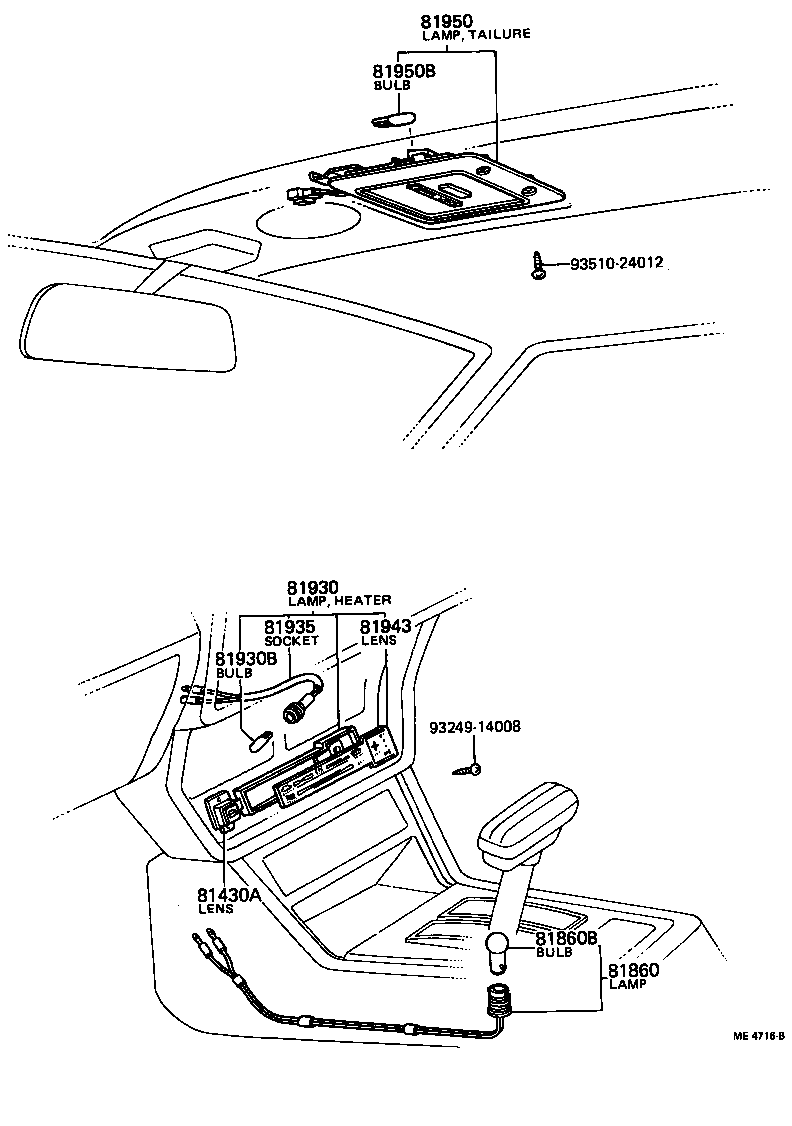

Click highlighted areas on diagram

Part #	Description	Period	Qty
81430A - LENS, REAR WINDOW DEFOGGER INDICATOR LAMP
55488-12010	KE3#,50,TE47,51..ARL,EUR,GEN	08/1974 - 01/1977	1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-12130	KE3#,50,TE3#,47,51	08/1976 - 01/1977	1
81930-12090	KE50,TE47,51..RHD	01/1977 - 02/1978	1
81930-12111	KE50,TE47,51..RHD W/COOLER	02/1978 - 08/1979	1
81930-12091	KE50,TE47,51..RHD	02/1978 - 08/1979	1
81930-12110	KE50,TE47,51..RHD W/COOLER	01/1977 - 02/1978	1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018	TE3#;KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.2W W/O SOCKET,12V 1.4W	08/1974 - 09/1976	1
81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP
81935-12020	TE3#;KE3#,50,TE47,51..ARL,EUR,GEN	08/1974 - 09/1976	1
81935-12020	KE3#,50,TE3#,47,51	09/1976 - 01/1977	1
81943 - LENS, HEATER CONTROL INDICATOR
81943-12020	KE3#,50,TE47,51..RHD..(ARL,GEN) W/COOLER	08/1974 - 01/1977	1
81943-12011	KE3#,50,TE47..RHD W/COOLER	01/1977 - 09/1977	1
81931-12021	KE50,TE47,51..RHD	01/1977 - 02/1978	1
81943-12011	KE3#,50,TE47..RHD W/COOLER	09/1977 - 02/1978	1
Common parts
93249-14008
93510-24012

Click highlighted areas on diagram

Part #	Description	Period	Qty
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-12130	KE3#,50,TE3#,47,51	08/1976 - 01/1977	1
81930-12090	KE50,TE47,51..RHD	01/1977 - 02/1978	1
81930-12111	KE50,TE47,51..RHD W/COOLER	02/1978 - 08/1979	1
81930-12091	KE50,TE47,51..RHD	02/1978 - 08/1979	1
81930-12110	KE50,TE47,51..RHD W/COOLER	01/1977 - 02/1978	1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-12130	KE3#,50,TE3#,47,51	08/1976 - 01/1977	1
81930-12090	KE50,TE47,51..RHD	01/1977 - 02/1978	1
81930-12111	KE50,TE47,51..RHD W/COOLER	02/1978 - 08/1979	1
81930-12091	KE50,TE47,51..RHD	02/1978 - 08/1979	1
81930-12110	KE50,TE47,51..RHD W/COOLER	01/1977 - 02/1978	1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018	TE3#;KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.2W W/O SOCKET,12V 1.4W	08/1974 - 09/1976	1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018	TE3#;KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.2W W/O SOCKET,12V 1.4W	08/1974 - 09/1976	1
81943 - LENS, HEATER CONTROL INDICATOR
81943-12020	KE3#,50,TE47,51..RHD..(ARL,GEN) W/COOLER	08/1974 - 01/1977	1
81943-12011	KE3#,50,TE47..RHD W/COOLER	01/1977 - 09/1977	1
81931-12021	KE50,TE47,51..RHD	01/1977 - 02/1978	1
81943-12011	KE3#,50,TE47..RHD W/COOLER	09/1977 - 02/1978	1
Common parts
93249-14010
