KE50L-LKDW (1977)
Toyota Corolla/Trueno
(7408-7801)KE30,35,50,TE3#,47,51 ; (7801- )KE30,35,5#,TE3#,47,51..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13065 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13065 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 90385-13003 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 90385-13003 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12050 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 04483-12020 |
KE3#,50,TE3#,47,51 |
2 | ||
| 04483-12040 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-12030 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 04484-12040 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-19025 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29015 |
KE3#,50..EUR,GEN,SA |
1 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
(7801-7908)KE30,35,50,TE47,51..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-12010 |
KE30,35,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12050 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 04483-12020 |
KE3#,50,TE3#,47,51 |
2 | ||
| 04483-12040 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-12030 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 04484-12040 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-19025 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29015 |
KE3#,50..EUR,GEN,SA |
1 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48408 - PIN SUB-ASSY, SPRING BRACKET | ||||
| 48409-12031 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48409-12032 |
KE30,35,50,TE47,51..EUR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01003 |
KE30,35,50,TE3#,47,51 UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
KE30,35,50,TE3#,47,51 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
KE30,35,50,TE3#,47,51 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
KE30,35,5#,TE3#,47,51 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||

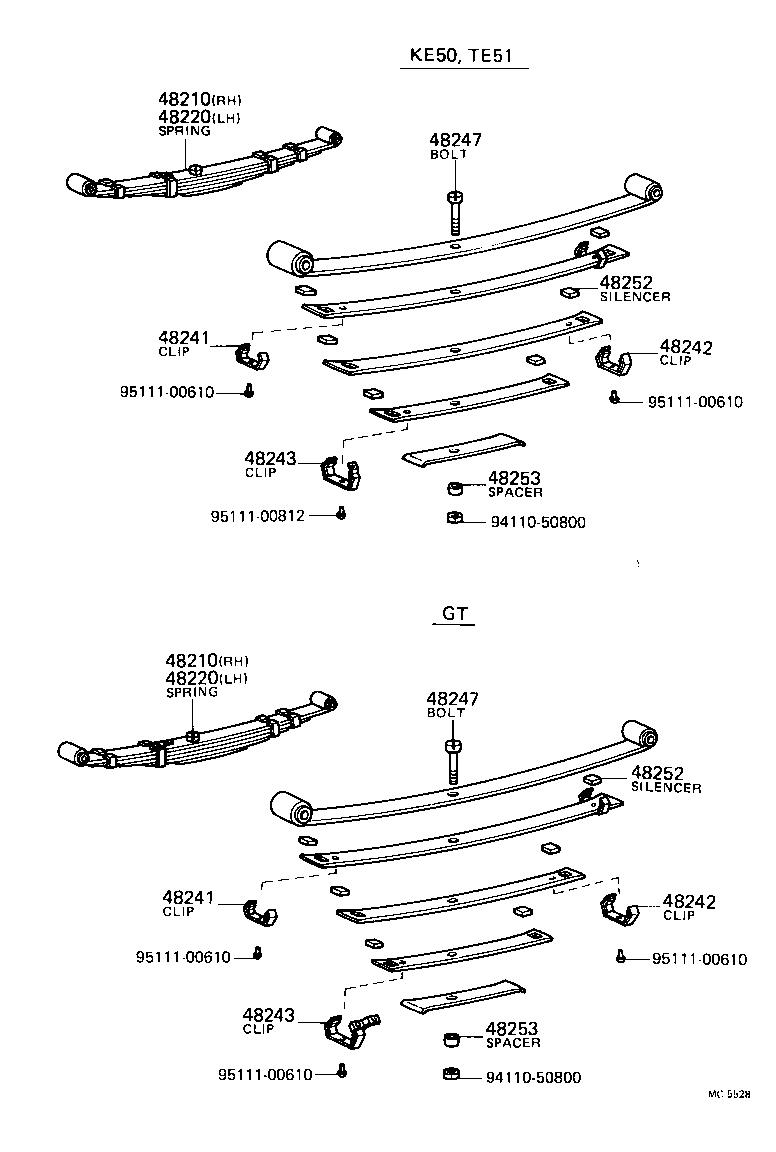

(7801-7908)KE50,TE47,51..DLX,GSL,GT..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12261 |
KE50,TE51..EUR W/BUSH |
1 | ||
| 48210-12260 |
KE50,TE51..EUR |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-12261 |
KE50,TE51..EUR W/BUSH |
1 | ||
| 48210-12260 |
KE50,TE51..EUR |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12260 |
KE50,TE51..EUR |
1 | ||
| 48210-12261 |
KE50,TE51..EUR W/BUSH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-12260 |
KE50,TE51..EUR |
1 | ||
| 48210-12261 |
KE50,TE51..EUR W/BUSH |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-22010 |
KE30,35,5#,TE3#,47,51 CHUO HATSUJO |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48252-22020 |
KE5#,TE47,51..(CP,LB)..(DLX,GSL,GT) CHUO HATSUJO |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48252-22020 |
KE5#,TE47,51..(CP,LB)..(DLX,GSL,GT) CHUO HATSUJO |
12 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 94110-50800 | ||||
| 95111-00610 | ||||
| 95111-00812 | ||||
