KE50L-LKDW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7805- )3KC,3KH..EUR

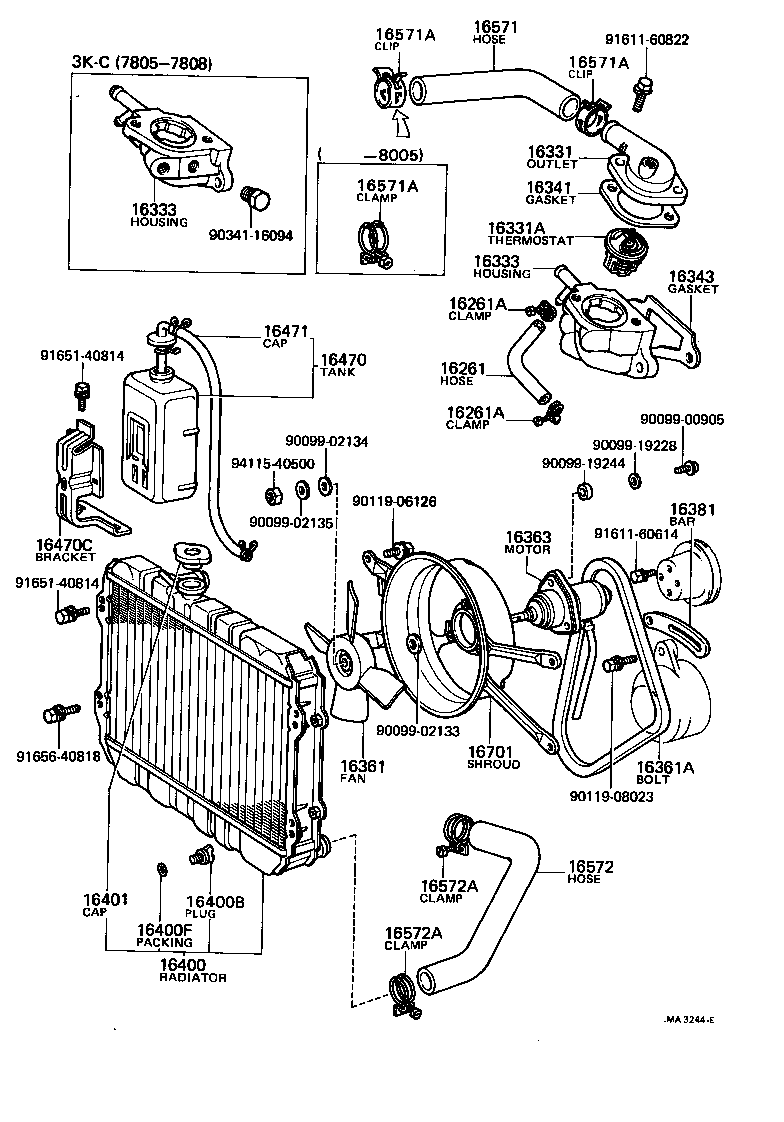

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16333 16341 16343 16361 16361A 16363 16381 16400 16400B 16400F 16401 16470 16470C 16471 16571 16571A 16571A 16571A 16572 16572A 16572A 16701 9009900905 9009902133 9009902134 9009902135 9009919228 9009919244 9011906126 9011908023 9034116094 9161160614 9161160822 9165140814 9165140814 9165640818 9411540500
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-22011

3KC,3KH..KE3#,50

 1
16261-22011

3KH..KE3#,50

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10220

3KC,3KH..KE3#,50

 2
96112-10220

3KH..KE3#,50

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10220

3KC,3KH..KE3#,50

 2
96112-10220

3KH..KE3#,50

 2
16331 - OUTLET, WATER
16331-22031

3K#..KE3#,50

 1
16331-22030

3K#..KE3#,50

 1
16331A - THERMOSTAT
90916-03020

3KH,3KB..KE30,35,36,50

*WAX 82-95,*(F)

 1
90916-03038

3KH,3KB..KE30,35,36,50

*WAX 82-95,KUZEH

 1
16341 - GASKET, WATER OUTLET
16341-13010

3K#,4KC..KE3#,5#

 1
16341-22010

3K#..KE3#,50

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-22010

3K#,4KC..KE3#,5#

 1
16361 - FAN
16361-24050

3KH..KE30,35,36,50..K40..EUG

W/COOLING FAN MOTER

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99521-10839

3K#..KE3#,50

L=839

 1
99521-10843

3K#..KE3#,50

L=843

 1
16363 - MOTOR, COOLING FAN
16363-24012

3KH..KE30,35,36,50..MTM..EUG

 1
16381 - BAR, FAN BELT ADJUSTING
16381-24011

3K#,4KC..KE3#,5#

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

3K#,4KC..KE3#,5#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

3K#,4KC..KE3#,5#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36010

3K#,4KC..KE3#,5#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-24031

3K#..KE3#,50

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-24020

3K#..KE3#,50

 1
16571 - HOSE, RADIATOR, INLET
90916-01136

3K#..KE3#,50

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
16572 - HOSE, RADIATOR, OUTLET
90916-01135

3K#..KE3#,50

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

3K#,4KC..KE3#,5#

TE=1(RADIATOR SIDE)

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

3K#,4KC..KE3#,5#

TE=1(RADIATOR SIDE)

 2
16701 - SHROUD SUB-ASSY, FAN
16711-24040

3K#..KE3#,50..MTM

UPR

 1
16712-24030

3K#..KE3#,50..MTM

LWR

 1
16711-24120

3KH..KE30,35,36,50..K40..EUG

W/COOLING FAN MOTOR

 1
16711-24121

3KH..KE30,35,36,50..MTM..EUG

W/COOLING FAN MOTOR

 1
Common parts
90099-00905
90099-02133
90099-02134
90099-02135
90099-19228
90099-19244
90119-06126
90119-08023
90341-16094
91611-60614
91611-60822
91651-40814
91656-40818
94115-40500

(7408-7805)3K#

Click highlighted areas on diagram

diagram 16261 16261 16261A 16261A 16261A 16261A 16261B 16261F 16268 16268A 16268A 16268A 16268B 16268B 16268B 16268B 16268B 16268B 16331 16331A 16333 16333 16341 16343 16361 16361 16361A 16365 16381 16400 16400B 16400F 16401 16470 16470 16470C 16471 16471 16571 16571A 16571A 16571A 16572 16572A 16572A 16701 16701 9011908023 9034116094 9161140822 9161140822 9161160622 9161160635 9161160635 9165140614 9165140614 9165140814 9165140814 9165140814
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-22011

3KC,3KH..KE3#,50

 1
16261-22011

3KH..KE3#,50

 1
16261 - HOSE, WATER BY-PASS
16261-22011

3KC,3KH..KE3#,50

 1
16261-22011

3KH..KE3#,50

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10220

3KC,3KH..KE3#,50

 2
96112-10220

3KH..KE3#,50

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10220

3KC,3KH..KE3#,50

 2
96112-10220

3KH..KE3#,50

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10220

3KC,3KH..KE3#,50

 2
96112-10220

3KH..KE3#,50

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10220

3KC,3KH..KE3#,50

 2
96112-10220

3KH..KE3#,50

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-16162

3K#..KE3#,50

 1
16331 - OUTLET, WATER
16331-22031

3K#..KE3#,50

 1
16331-22030

3K#..KE3#,50

 1
16331A - THERMOSTAT
90916-03020

3KH,3KB..KE30,35,36,50

*WAX 82-95,*(F)

 1
90916-03038

3KH,3KB..KE30,35,36,50

*WAX 82-95,KUZEH

 1
16341 - GASKET, WATER OUTLET
16341-13010

3K#,4KC..KE3#,5#

 1
16341-22010

3K#..KE3#,50

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-22010

3K#,4KC..KE3#,5#

 1
16361 - FAN
16361-24050

3KH..KE30,35,36,50..K40..EUG

W/COOLING FAN MOTER

 1
16361 - FAN
16361-24050

3KH..KE30,35,36,50..K40..EUG

W/COOLING FAN MOTER

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99521-10839

3K#..KE3#,50

L=839

 1
99521-10843

3K#..KE3#,50

L=843

 1
16381 - BAR, FAN BELT ADJUSTING
16381-24011

3K#,4KC..KE3#,5#

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

3K#,4KC..KE3#,5#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

3K#,4KC..KE3#,5#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36010

3K#,4KC..KE3#,5#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-24031

3K#..KE3#,50

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-24031

3K#..KE3#,50

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-24020

3K#..KE3#,50

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-24020

3K#..KE3#,50

 1
16571 - HOSE, RADIATOR, INLET
90916-01136

3K#..KE3#,50

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
96111-10430

3K#..KE3#,50

 2
16572 - HOSE, RADIATOR, OUTLET
90916-01135

3K#..KE3#,50

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

3K#,4KC..KE3#,5#

TE=1(RADIATOR SIDE)

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

3K#,4KC..KE3#,5#

TE=1(RADIATOR SIDE)

 2
16701 - SHROUD SUB-ASSY, FAN
16711-24040

3K#..KE3#,50..MTM

UPR

 1
16712-24030

3K#..KE3#,50..MTM

LWR

 1
16711-24120

3KH..KE30,35,36,50..K40..EUG

W/COOLING FAN MOTOR

 1
16711-24121

3KH..KE30,35,36,50..MTM..EUG

W/COOLING FAN MOTOR

 1
16701 - SHROUD SUB-ASSY, FAN
16711-24040

3K#..KE3#,50..MTM

UPR

 1
16712-24030

3K#..KE3#,50..MTM

LWR

 1
16711-24120

3KH..KE30,35,36,50..K40..EUG

W/COOLING FAN MOTOR

 1
16711-24121

3KH..KE30,35,36,50..MTM..EUG

W/COOLING FAN MOTOR

 1
Common parts
90119-08023
90341-16094
91611-40822
91611-60622
91611-60635
91651-40614
91651-40814
