KE38RV-KRFQ (1978)
Toyota Corolla/Trueno
Production
Aug 1978
-
Jul 1981
Engine
4KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

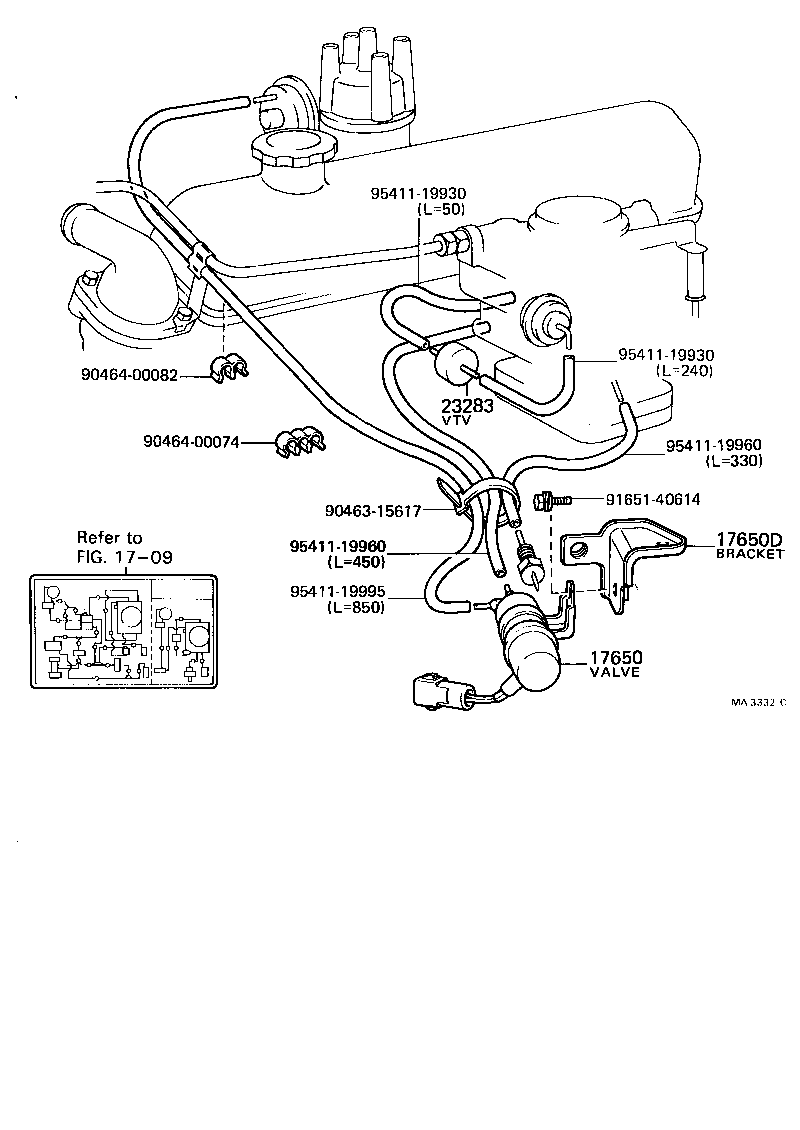

(7808-8012)4KC..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12040 |
4KC..KE38,55..MTM |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-12020 |
4KC..KE38,55..MTM |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01021 |
4KC..KE38,55..MTM |
1 | ||
| Common parts | ||||
| 90463-15617 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 91651-40614 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(8012- )4KC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05016 |
4KC..KE38,55..MTM |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05016 |
4KC..KE38,55..MTM |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
4KC..KE38,55 |
1 | ||
| 23266 - FILTER, GAS, NO.2 | ||||
| 90917-11022 |
4KC..KE38,55..MTM |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03113 |
4KC..KE38,55 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03114 |
4KC..KE38,55..MTM |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01062 |
4KC..KE38,55 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
4KC..KE38,55..MTM |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
4KC..KE38,55..MTM |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00233 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
