KE36RV-KRF (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )KE36,38

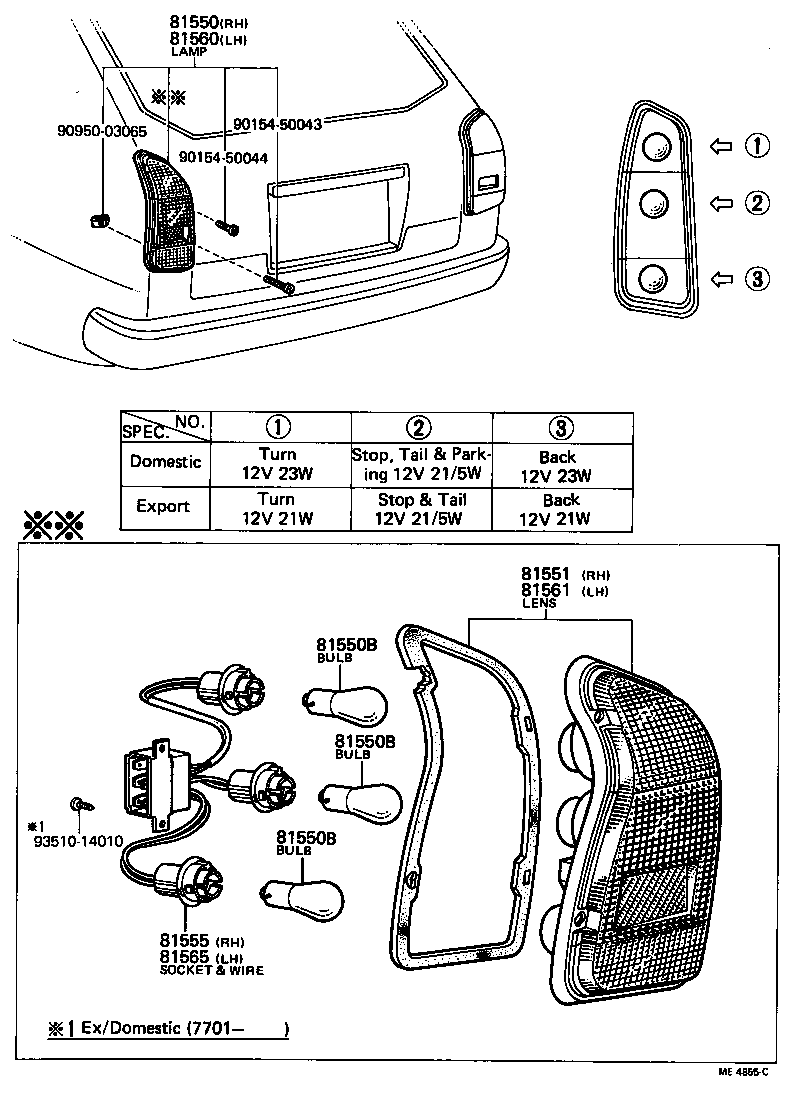

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81555 81560 81561 81565 9015450043 9015450044 9095003065 9351014010
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-19725

KE36,38

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

KE3#,5#,TE3#,47,51

12V 21W,12V 21W

 6
99132-21210

KE3#,5#,TE3#,51

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13180

KE36,38

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-13170

KE36,38

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-19705

KE36,38

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13180

KE36,38

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-13170

KE36

 1
Common parts
90154-50043
90154-50044
90950-03065
93510-14010
