KE36RV-KRBQ (1976)
Toyota Corolla/Trueno

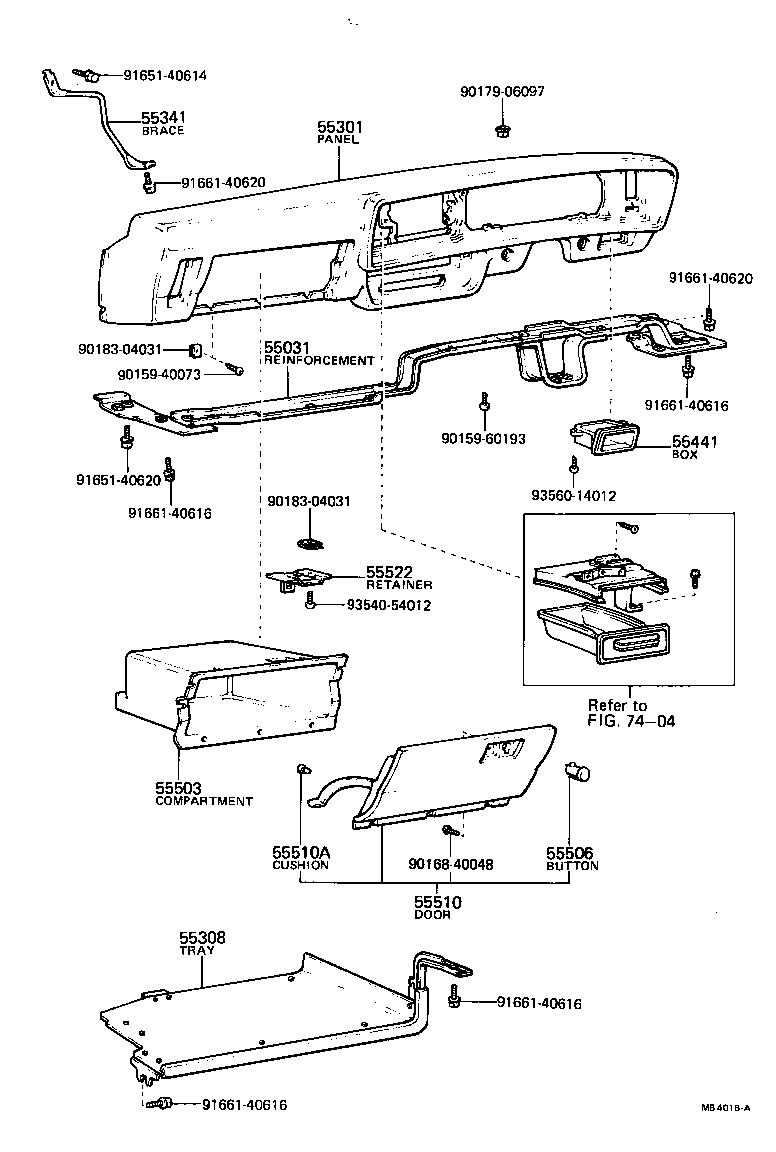

(7408-7701)KE3#,TE3#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-12010 |
KE3#,TE3#..RHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1201001 |
KE3#,TE3#..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1201006 |
KE3#,TE3#..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12030 |
KE3#,TE3#..RHD |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-12040 |
KE3#,TE3# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12010 |
KE3#,TE3#..RHD |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55520-14011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1201006 |
KE3#,TE3#..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55550-1201001 |
KE3#,TE3#..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,5#,TE3#,47,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-14010 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90159-40073 | ||||
| 90159-60193 | ||||
| 90168-40048 | ||||
| 90179-06097 | ||||
| 90183-04031 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91661-40616 | ||||
| 91661-40620 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7404 | ||||

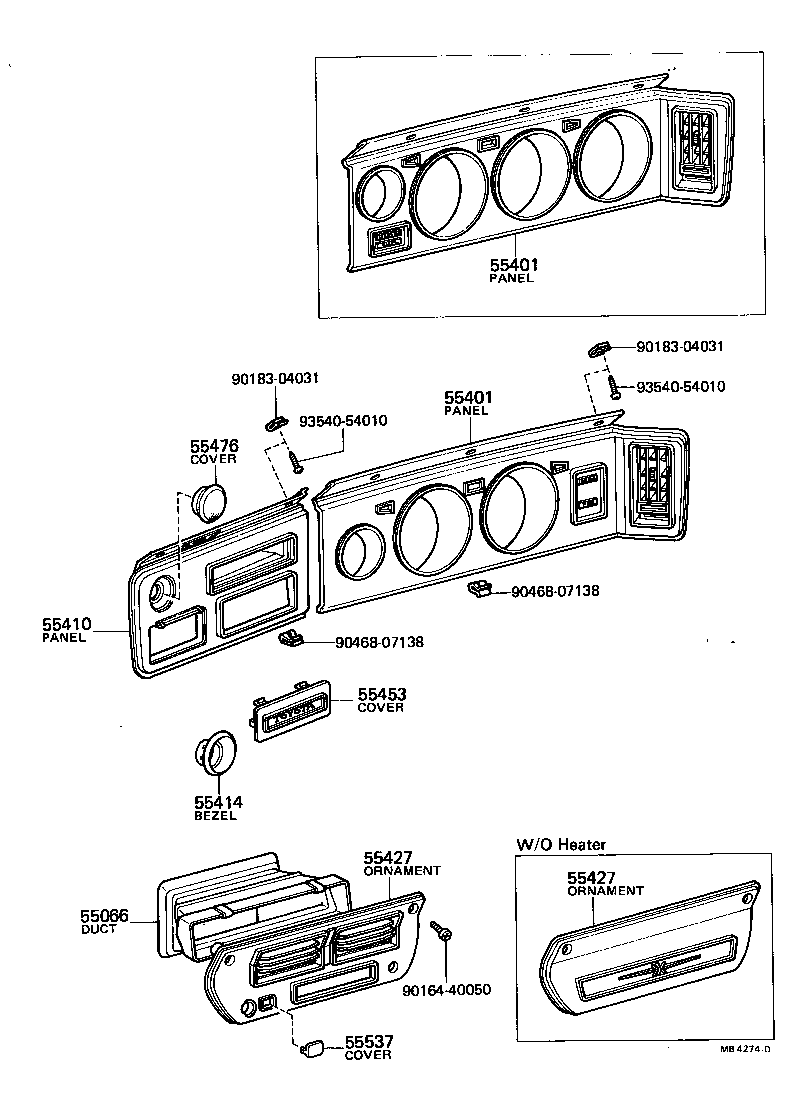

(7408-7701)KE3#,TE3#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-12010 |
KE3#,TE3# W/HEATER |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12040 |
KE30,36..RHD..STD |
1 | ||
| 55404-12510 |
KE30,36..ARL |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12040 |
KE30,36..RHD..STD |
1 | ||
| 55404-12510 |
KE30,36..ARL |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55405-12070 |
KE3#,TE31..RHD..(DLX,STD) |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55413-12030 |
KE3#..DLX,STD W/O HEATER |
1 | ||
| 55406-12030 |
KE3#,TE31..DLX,STD W/HEATER |
1 | ||
| 55406-12130 |
KE3#..DLX,STD W/RR WINDOW DEFOGGER |
1 | ||
| 55413-12030 |
KE3#..(DLX,STD)..(ARL,EUR,GEN) W/O HEATER |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55413-12030 |
KE3#..DLX,STD W/O HEATER |
1 | ||
| 55406-12030 |
KE3#,TE31..DLX,STD W/HEATER |
1 | ||
| 55406-12130 |
KE3#..DLX,STD W/RR WINDOW DEFOGGER |
1 | ||
| 55413-12030 |
KE3#..(DLX,STD)..(ARL,EUR,GEN) W/O HEATER |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12010 |
KE3#,TE3# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
KE30,36,38,55..STD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90164-40050 | ||||
| 90183-04031 | ||||
| 90468-07138 | ||||
| 93540-54010 | ||||

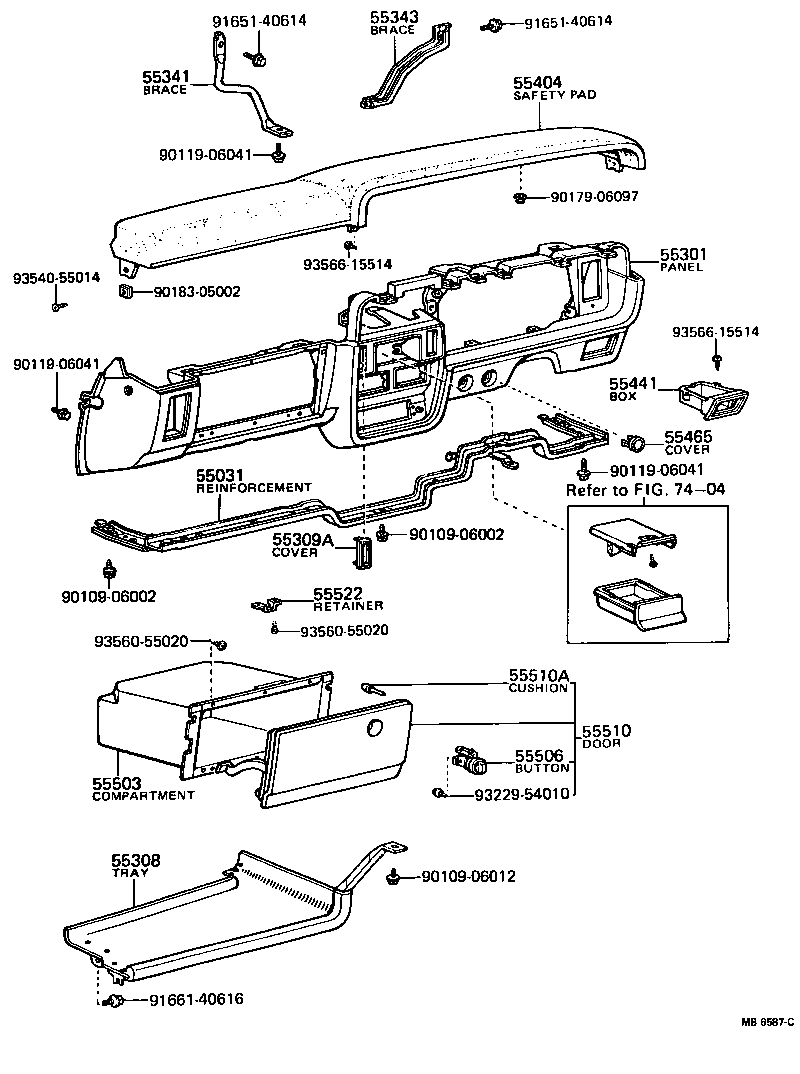

(7701- )DV,HT,SED,WG..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-12010 |
KE3#,TE3#..RHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1201001 |
KE3#,TE3#..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55301-1201006 |
KE3#,TE3#..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55385-20011 |
KE3#,TE3# |
2 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12030 |
KE3#,TE3#..RHD |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-12040 |
KE3#,TE3# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12010 |
KE3#,TE3#..RHD |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12010 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55520-14011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1201006 |
KE3#,TE3#..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55550-1201001 |
KE3#,TE3#..RHD BLACK,BLACK,TRIM0#,2# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,5#,TE3#,47,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-14010 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90109-06002 | ||||
| 90109-06012 | ||||
| 90119-06041 | ||||
| 90179-06097 | ||||
| 90183-05002 | ||||
| 91651-40614 | ||||
| 91661-40616 | ||||
| 93229-54010 | ||||
| 93540-55014 | ||||
| 93560-55020 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 7404 | ||||

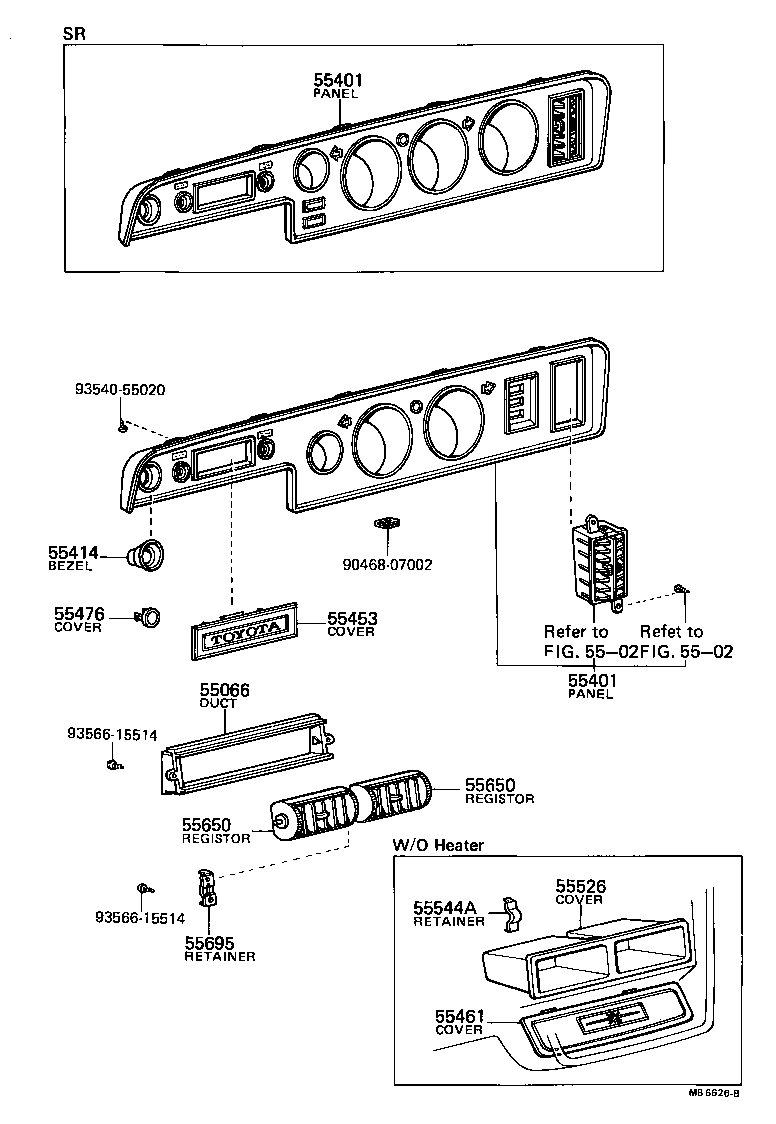

(7701- )DV,HT,SED,WG..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-12010 |
KE3#,TE3# W/HEATER |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12040 |
KE30,36..RHD..STD |
1 | ||
| 55404-12510 |
KE30,36..ARL |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12040 |
KE30,36..RHD..STD |
1 | ||
| 55404-12510 |
KE30,36..ARL |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12010 |
KE3#,TE3# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
KE30,36,38,55..STD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90468-07002 | ||||
| 93540-55020 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 5502 | ||||
