KE36RV-KRBN (1974)
Toyota Corolla/Trueno

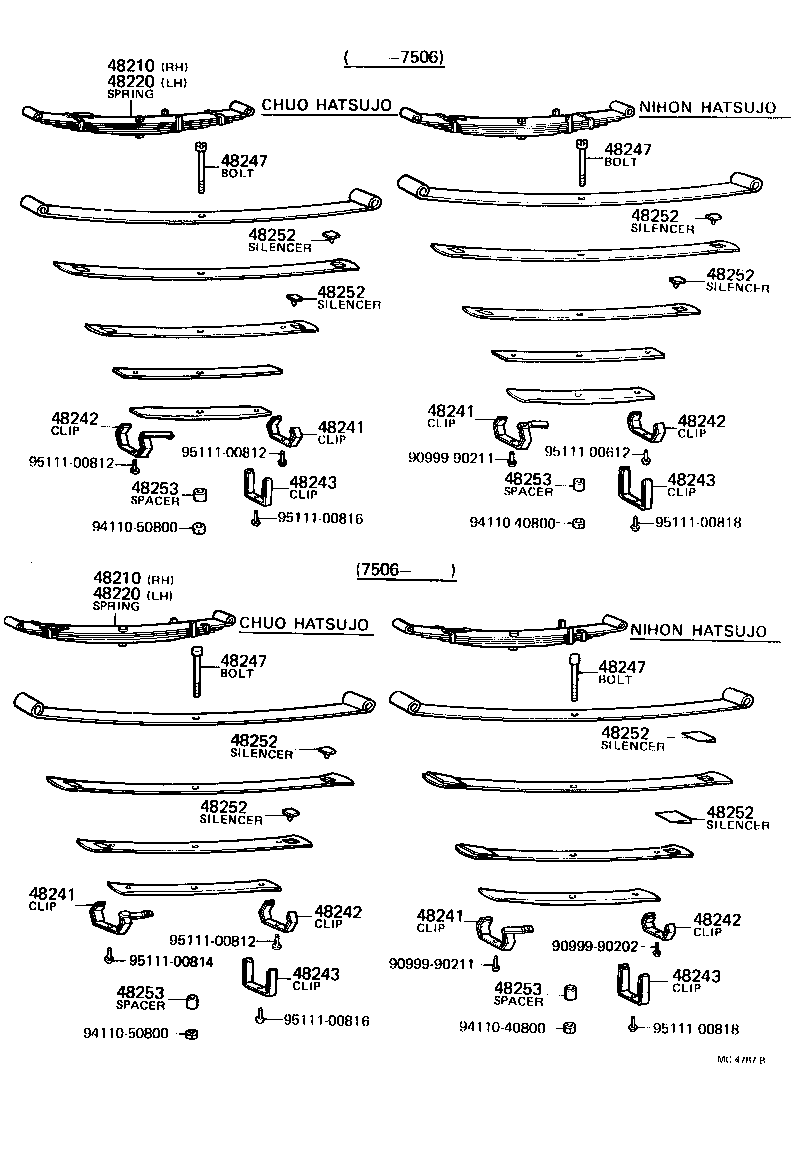

(7408- )KE36,38
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-13050 |
KE36 |
1 | ||
| 48210-13051 |
KE36 |
1 | ||
| 48210-13110 |
KE36,38 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-13050 |
KE36 |
1 | ||
| 48210-13051 |
KE36 |
1 | ||
| 48210-13110 |
KE36,38 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-13050 |
KE36 |
1 | ||
| 48210-13051 |
KE36 |
1 | ||
| 48210-13110 |
KE36,38 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-13050 |
KE36 |
1 | ||
| 48210-13051 |
KE36 |
1 | ||
| 48210-13110 |
KE36,38 |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13081 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48241-13051 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13081 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48241-13051 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13081 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48241-13051 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-13081 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48241-13051 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-10050 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48241-10070 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-10050 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48241-10070 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-10050 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48241-10070 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48241-10050 |
KE36 NIHON HATSUJO |
2 | ||
| 48243-13050 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48241-10070 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13011 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48242-13080 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13011 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48242-13080 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13011 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48242-13080 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13011 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48242-13080 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48247-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48247-13100 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-12190 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48247-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48247-13100 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-12190 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48247-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48247-13100 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-12190 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13050 |
KE36 CHUO HATSUJO |
2 | ||
| 48247-13080 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE36,38 CHUO HATSUJO |
2 | ||
| 48247-13100 |
KE36 NIHON HATSUJO |
2 | ||
| 48247-12190 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48253-23030 |
KE3# NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,50,TE3#,47,51 CHUO HATSUJO |
8 | ||
| 48253-23030 |
KE36,38 NIHON HATSUJO |
8 | ||
| 48252-22020 |
KE3#,5#,TE3#,47,51..DLX,GSL,LT,SR,ST,STD CHUO HATSUJO |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
KE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
KE36,38 NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,5#,TE3#,47,51 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 90999-90211 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 95111-00612 | ||||
| 95111-00812 | ||||
| 95111-00814 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||

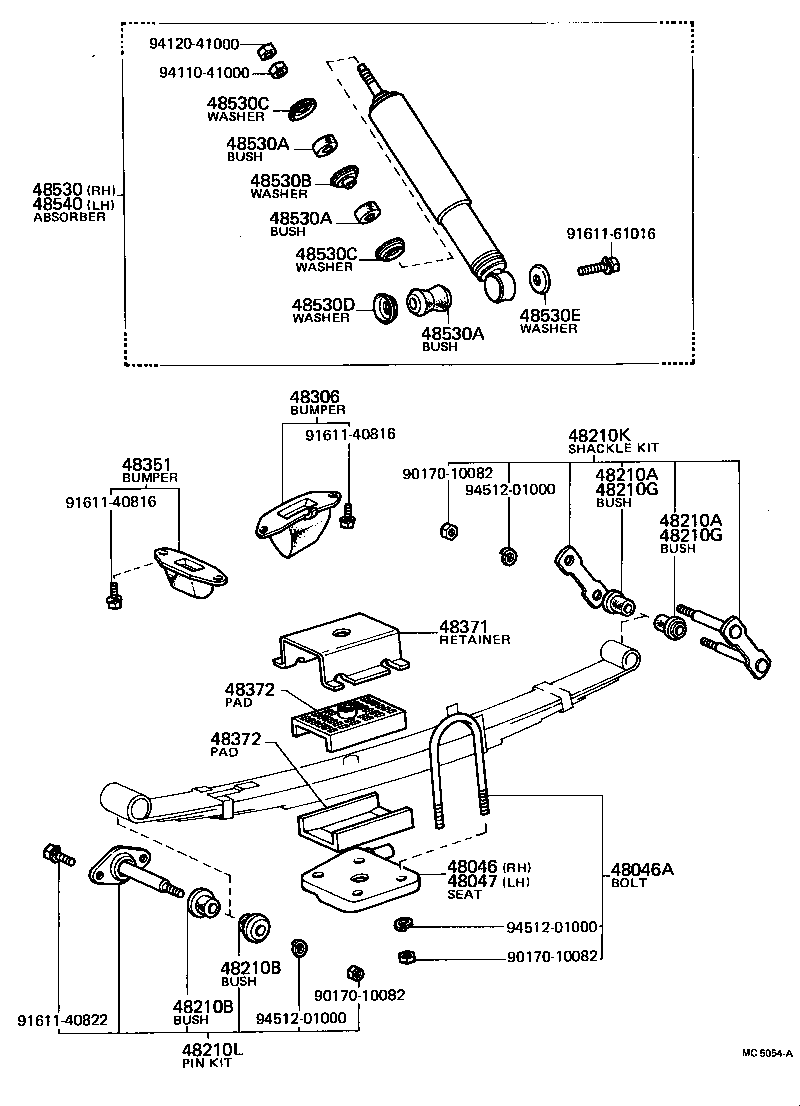

(7408- )KE36,38
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-13040 |
KE36,38 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10129 |
KE36 |
4 | ||
| 90118-10138 |
KE36,38 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-13040 |
KE36,38 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE36,38 |
4 | ||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE36,38 |
4 | ||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13002 |
KE36,38 |
4 | ||
| 90385-17069 |
KE36 |
4 | ||
| 90385-17072 |
KE36 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-13002 |
KE36,38 |
4 | ||
| 90385-17069 |
KE36 |
4 | ||
| 90385-17072 |
KE36 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 90385-13071 |
KE36,38 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,47,51 |
4 | ||
| 90385-13071 |
KE36,38 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12020 |
KE3#,50,TE3#,47,51 |
2 | ||
| 04483-12020 |
KE36,38 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-13010 |
KE36 |
2 | ||
| 04484-12050 |
KE36,38 |
2 | ||
| 04484-13011 |
KE36 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-19015 |
KE36 |
2 | ||
| 48341-19016 |
KE36,38 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-29015 |
KE3#,50..EUR,GEN,SA |
1 | ||
| 48351-29015 |
KE36 H=30 |
1 | ||
| 48351-29015 |
KE35,36,38,5#;KE30..DLX..SA;KE30..ARL,EUR,GEN |
1 | ||
| 48351-19025 |
KE30,36,TE3#..SA |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-13050 |
KE36 |
2 | ||
| 48371-13010 |
KE36,38 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,5#,TE3#,47,51 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19325 |
KE36,38 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01002 |
KE36 T=15,OD=30,ID=10,UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 90948-01003 |
KE3#,5#,TE3#,47,51 T=15,OD=30,ID=10,UPR |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01002 |
KE36 T=15,OD=30,ID=10,UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 90948-01003 |
KE3#,5#,TE3#,47,51 T=15,OD=30,ID=10,UPR |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01002 |
KE36 T=15,OD=30,ID=10,UPR |
4 | ||
| 90385-16060 |
KE3#,5#,TE3#,47,51 LWR |
2 | ||
| 90948-01003 |
KE3#,5#,TE3#,47,51 T=15,OD=30,ID=10,UPR |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02005 |
KE36 T=5.5,OD=32,ID=13 |
2 | ||
| 90948-02007 |
KE3#,5#,TE3#,47,51 T=6.5,OD=38,ID=13 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02004 |
KE36 T=4.5,OD=32,ID=10.5 |
4 | ||
| 90948-02002 |
KE3#,5#,TE3#,47,51 T=6.0,OD=38,ID=10.5 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02004 |
KE36 T=4.5,OD=32,ID=10.5 |
4 | ||
| 90948-02002 |
KE3#,5#,TE3#,47,51 T=6.0,OD=38,ID=10.5 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03004 |
KE36,38 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03012 |
KE36,38 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19325 |
KE36,38 |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
