KE36RV-KD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )3K#,4KC

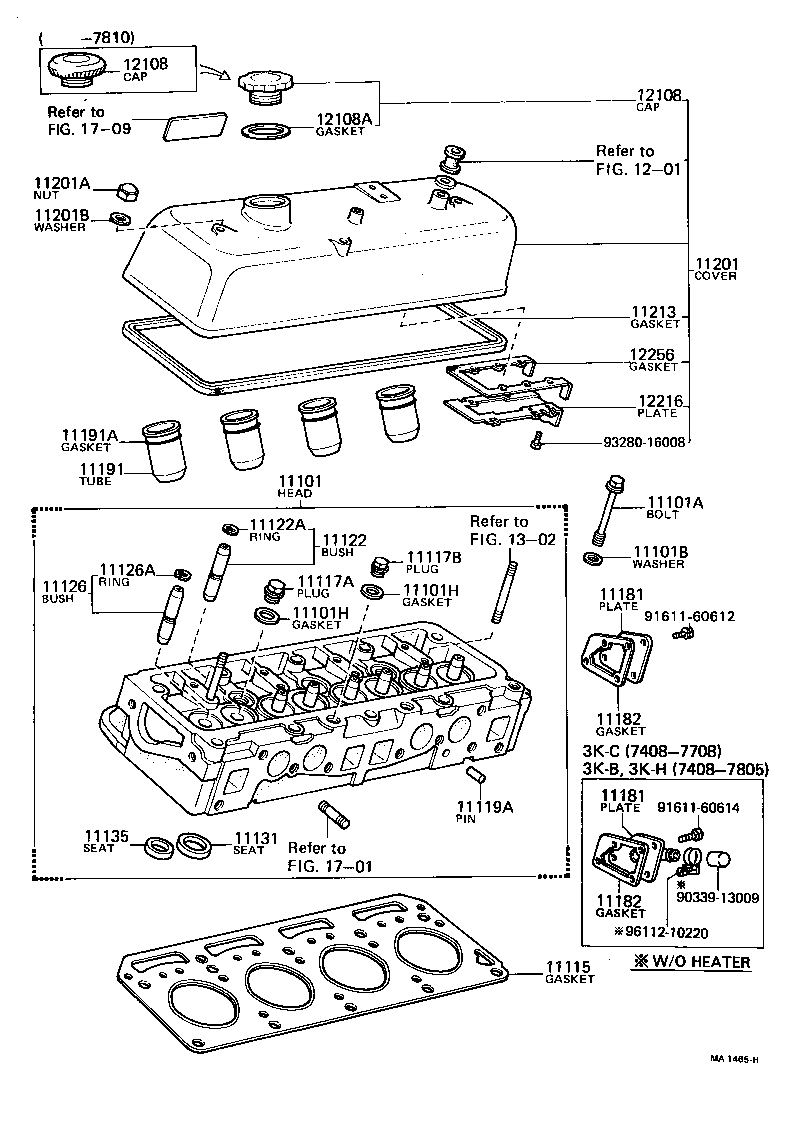

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101H 11101H 11115 11117A 11117B 11119A 11122 11122A 11126 11126A 11131 11135 11181 11181 11182 11182 11191 11191A 11201 11201A 11201B 11213 1201 12108 12108 12108A 12216 12256 1302 1701 1709 9033913009 9161160612 9161160614 9328016008 9611210220
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-29145

3KH..KE3#

 1
11101-29146

3KH..KE3#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02020

3K#,4KC..KE3#,5#

*10-1.25PX100-20

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

3K#..KE3#,50

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-15151

3K#,4KC..KE3#,5#

OD=21,ID=15

 2
90430-18152

3K#,4KC..KE3#,5#

OD=25,ID=18

 3
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-15151

3K#,4KC..KE3#,5#

OD=21,ID=15

 2
90430-18152

3K#,4KC..KE3#,5#

OD=25,ID=18

 3
11115 - GASKET, CYLINDER HEAD
11115-24013

3K#..KE3#,50

 1
11115-24012

3K#..KE3#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-18063

3K#,4KC..KE3#,5#

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-15045

3K#,4KC..KE3#,5#

 2
11119A - PIN, STRAIGHT, NO.1
90250-08120

3K#,4KC..KE3#,5#

L=18,OD=8,L=18,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-22020

3K#..KE3#

O/S 0.05,O/S 0.05

 4
11122-22020

3K#..KE3#

STD,STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

3K#,4KC..KE3#,5#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-22020

3K#..KE3#

O/S 0.05,O/S 0.05

 4
11126-22020

3K#..KE3#

STD,STD

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

3K#,4KC..KE3#,5#

 4
11131 - SEAT, INTAKE VALVE
11131-24010

3K#,4KC..KE3#,5#

STD,STD

 4
11132-24010

3K#,4KC..KE3#,5#

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-24012

3K#..KE3#,50

STD

 4
11136-24010

3K#..KE3#,50

O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-24010

3KH,3KB..KE3#,50

 1
11181-24010

3K#..KE3#,50

 1
11181 - PLATE, CYLINDER HEAD, REAR
11181-24010

3KH,3KB..KE3#,50

 1
11181-24010

3K#..KE3#,50

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-24010

3K#,4KC..KE3#,5#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-24010

3K#,4KC..KE3#,5#

 1
11191 - TUBE, SPARK PLUG
11191-22010

3K#,4KC..KE3#,5#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

3K#,4KC..KE3#,5#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-29106

3KH..KE3#

 1
11201-29108

3K#..KE3#,50

 1
11201-29107

3KC,3KH..KE3#

 1
11201-19025

3K#,4KC..KE3#,5#

 1
11201-19015

3K#,4KC..KE3#,5#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
94171-10800

3K#,4KC..KE3#,5#

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08017

3K#,4KC..KE3#,5#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-22010

3K#,4KC..KE3#,5#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

3K#,4KC..KE3#,5#

 1
12181-12904

3K#,4KC..KE3#,5#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

3K#,4KC..KE3#,5#

 1
12181-12904

3K#,4KC..KE3#,5#

 1
12216 - PLATE, VENTILATION BAFFLE
12216-22010

3K#,4KC..KE3#,5#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-22010

3K#,4KC..KE3#,5#

 1
Common parts
90339-13009
91611-60612
91611-60614
93280-16008
96112-10220
