KE36LV-KRC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7508- )KE36,38

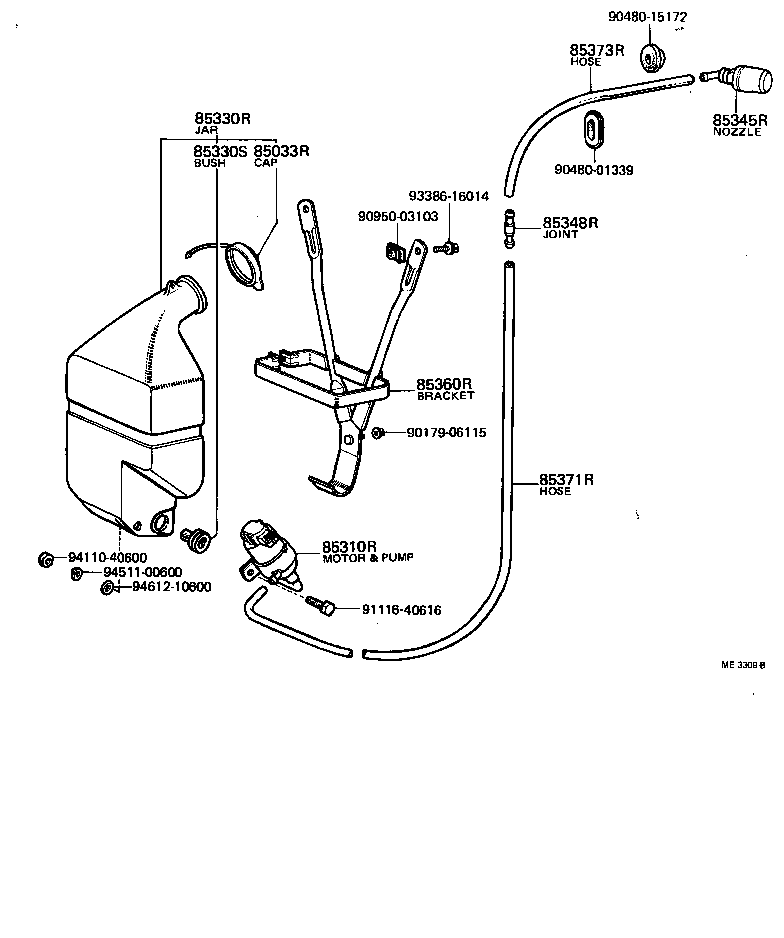

Click highlighted areas on diagram

diagram 85033R 85310R 85330R 85330S 85345R 85348R 85360R 85371R 85373R 9017906115 9048001339 9048015172 9095003103 9111640616 9338616014 9411040600 9451100600 9461210600
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-36120

KE36,TE51..EUR,GEN,SA

 1
85310R - MOTOR ASSY, REAR WASHER
85310-23010

KE36,TE51..EUR,GEN,SA

 1
85330R - JAR ASSY, REAR WASHER
85330-23010

KE36,TE51..EUR,GEN,SA

 1
85330S - BUSH, REAR WASHER JAR
90099-32057

KE36,TE51..EUR,GEN,SA

 1
85345R - NOZZLE, REAR WASHER
85035-21010

KE36..EUR,GEN,SA

 1
85035-21010

KE36..WG

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

KE36,TE51..EUR,GEN,SA

 1
85360R - BRACKET ASSY, REAR WASHER
85360-13010

KE36..EUR,GEN,SA

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06286

KE36..EUR,GEN,SA

*H,L=400

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-07001

KE36..EUR,GEN,SA

 1
Common parts
90179-06115
90480-01339
90480-15172
90950-03103
91116-40616
93386-16014
94110-40600
94511-00600
94612-10600
