KE36LV-KRC (1975)
Toyota Corolla/Trueno
Production
Aug 1975
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

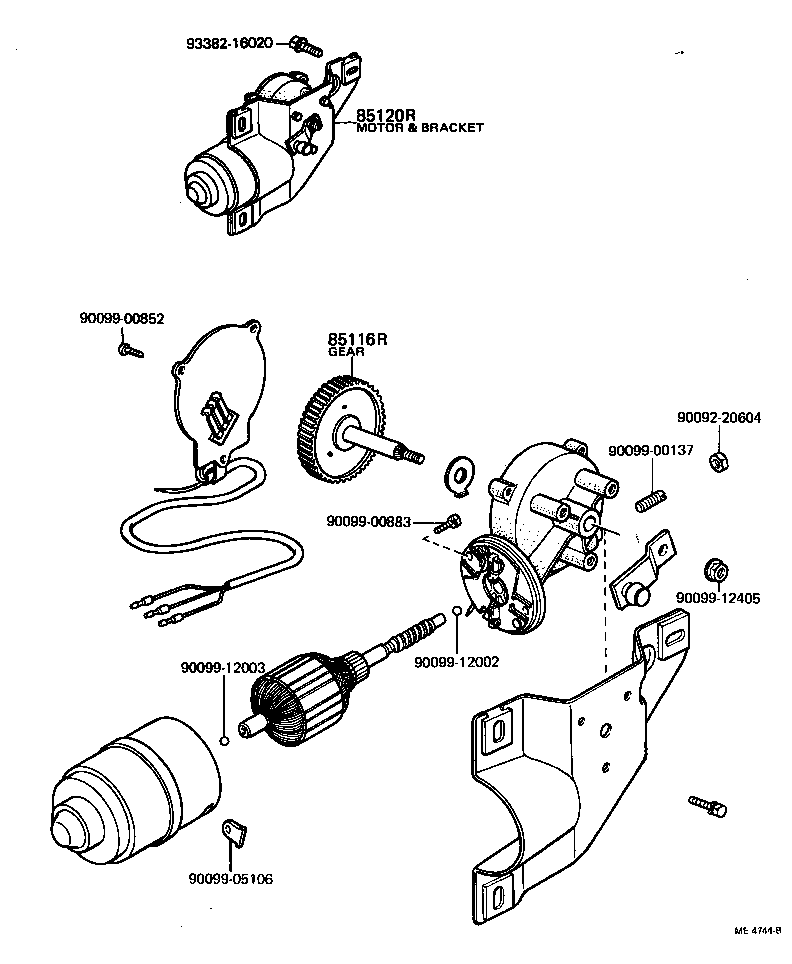

(7508- )KE36,38
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85116R - GEAR, REAR WIPER MOTOR | ||||
| 85116-95101 |
KE36..EUR,GEN,SA |
1 | ||
| 85120R - MOTOR AND BRACKET ASSY, REAR WIPER | ||||
| 85120-13010 |
KE36..EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 90092-20604 | ||||
| 90099-00137 | ||||
| 90099-00852 | ||||
| 90099-00883 | ||||
| 90099-05106 | ||||
| 90099-12002 | ||||
| 90099-12003 | ||||
| 90099-12405 | ||||
| 93382-16020 | ||||

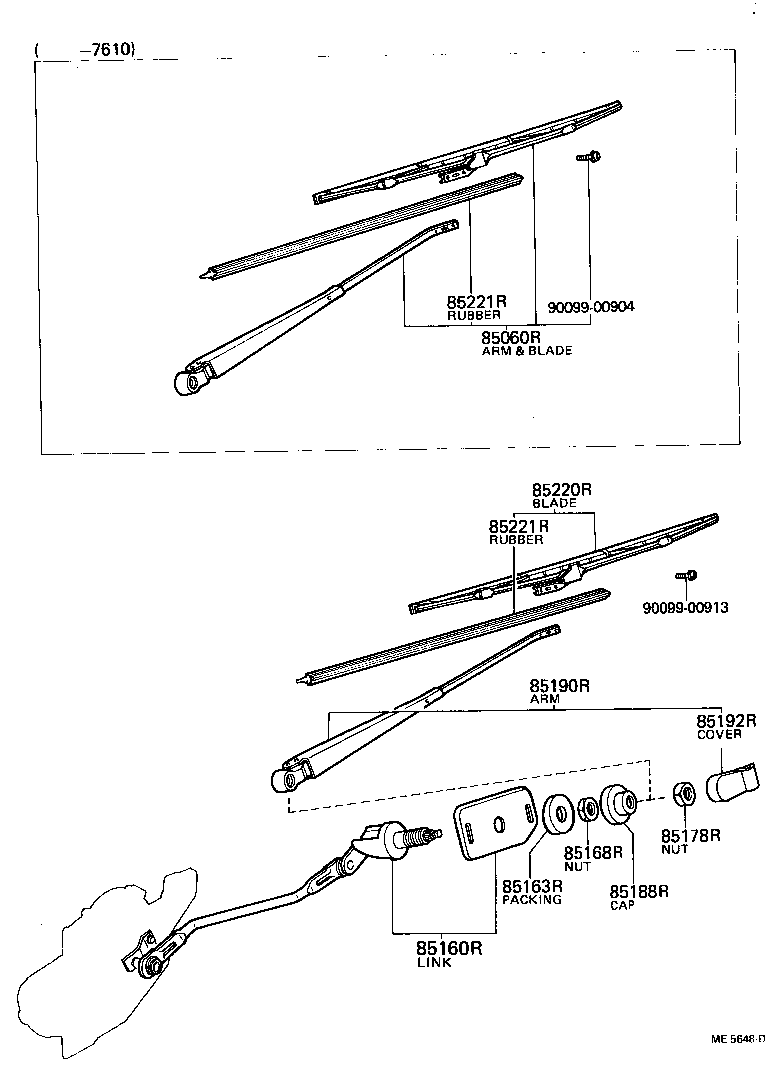

(7508- )KE36,38
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85060R - ARM AND BLADE ASSY, REAR WIPER | ||||
| 85060-13010 |
KE36..EUR,GEN,SA |
1 | ||
| 85160R - LINK ASSY, REAR WIPER | ||||
| 85160-13010 |
KE36..EUR,GEN,SA |
1 | ||
| 85163R - PACKING, REAR WIPER PIVOT, NO.1 | ||||
| 85179-13010 |
KE36..EUR,GEN,SA |
1 | ||
| 85179-13010 |
KE36..WG |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85186-13010 |
KE36..EUR,GEN,SA |
1 | ||
| 85186-13011 |
KE36..WG |
1 | ||
| 85186-13010 |
KE36..WG |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90176-06001 |
KE36..EUR,GEN,SA |
1 | ||
| 90176-06001 |
KE36..WG |
1 | ||
| 90176-06017 |
KE36 |
2 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-13010 |
KE36..WG |
1 | ||
| 85190-13010 |
KE36..EUR,GEN,SA |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-13010 |
KE36..WG |
1 | ||
| 85220-13010 |
KE36..EUR,GEN,SA |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-10040 |
KE36..EUR,GEN,SA |
2 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-10040 |
KE36..EUR,GEN,SA |
2 | ||
| Common parts | ||||
| 90099-00904 | ||||
| 90099-00913 | ||||
