KE36LV-KRC (1975)
Toyota Corolla/Trueno
Production
Aug 1975
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

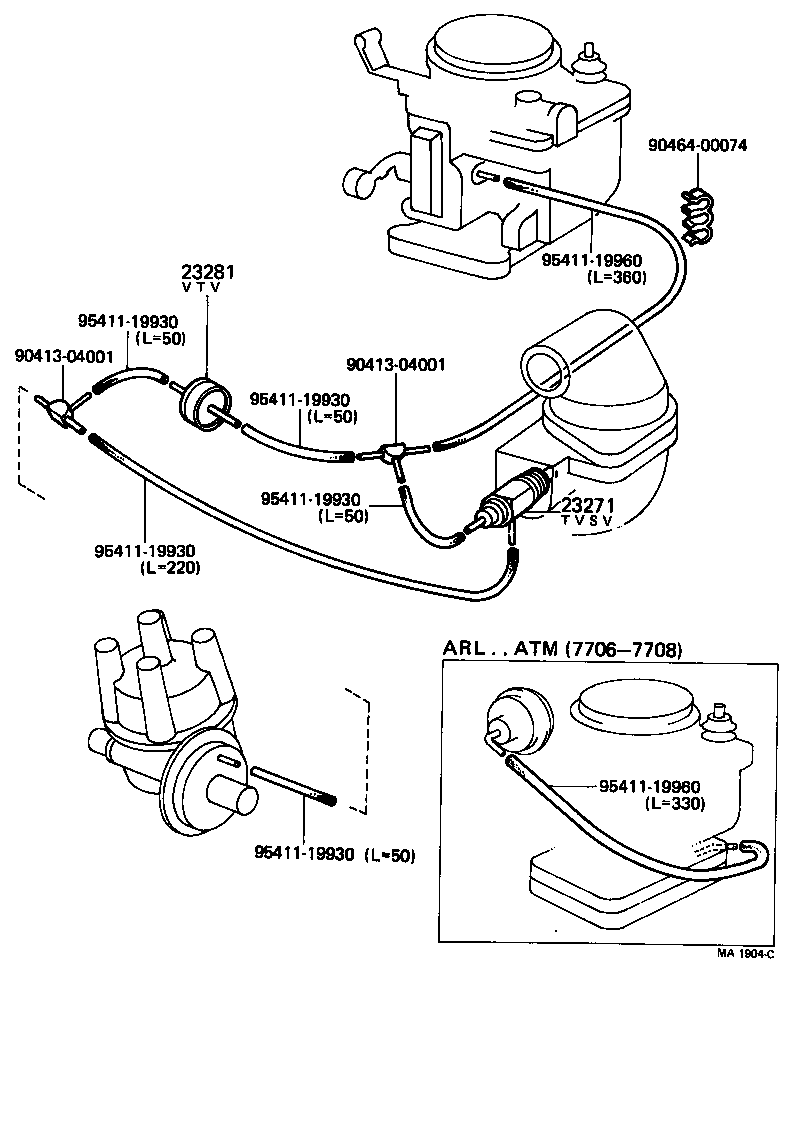

(7508-7708)3KC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02001 |
3KC..KE3#,50 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01029 |
3KC..KE3#,50..MTM |
1 | ||
| 90925-01008 |
3KC..KE3#,50 SWEDEN SPEC |
1 | ||
| 90925-01062 |
3KC..KE30,35,36,50 |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90464-00074 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||

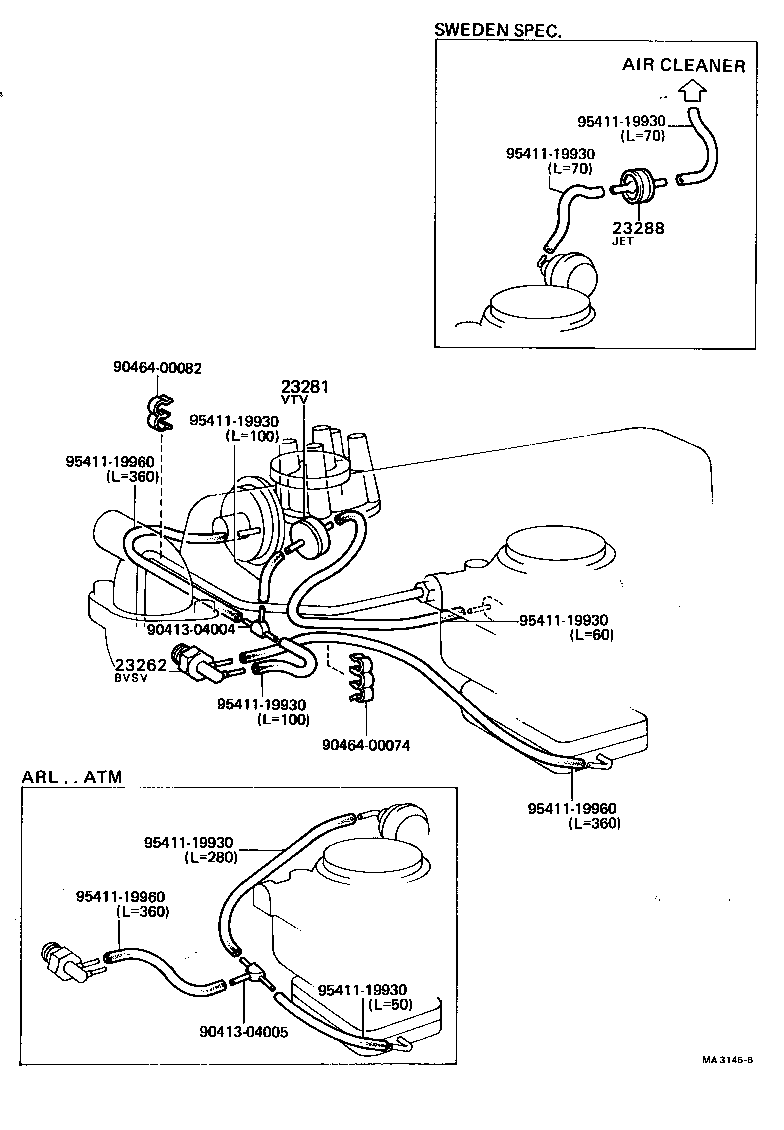

(7708-7908)3KC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05007 |
3KC..KE30,35,36,50 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01029 |
3KC..KE3#,50..MTM |
1 | ||
| 90925-01008 |
3KC..KE3#,50 SWEDEN SPEC |
1 | ||
| 90925-01062 |
3KC..KE30,35,36,50 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
3KC..KE30,35,36,50 SWEDEN SPEC |
1 | ||
| Common parts | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
