KE36LV-KD (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Aug 1979
Engine
3KH
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408- )KE36,38

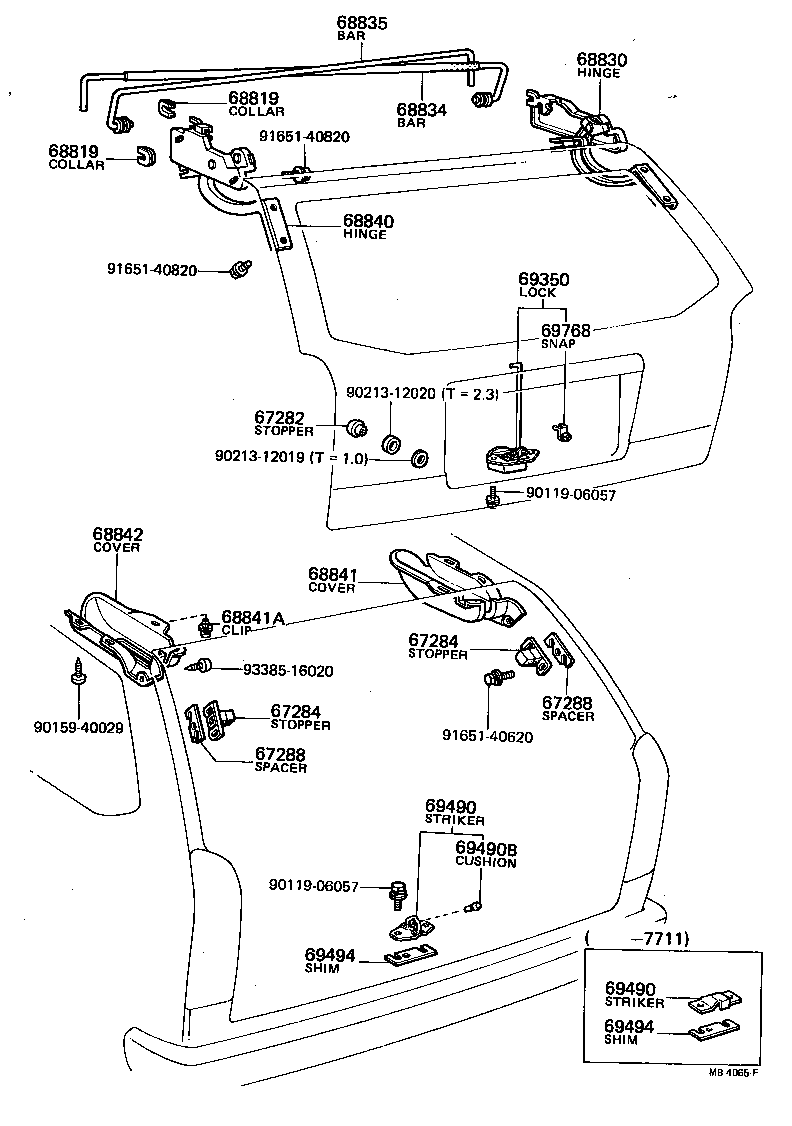

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67282 - STOPPER, BACK DOOR, NO.1 | ||||
| 67281-13030 |
KE36,38 |
2 | ||
| 67284 - STOPPER, BACK DOOR, NO.2 | ||||
| 61778-13030 |
KE36,38 |
2 | ||
| 67284 - STOPPER, BACK DOOR, NO.2 | ||||
| 61778-13030 |
KE36,38 |
2 | ||
| 67288 - SPACER, BACK DOOR SIDE STOPPER, UPPER | ||||
| 67295-13010 |
KE36,38 T=2.3 |
2 | ||
| 67296-13010 |
KE36,38 T=1.0 |
4 | ||
| 67288 - SPACER, BACK DOOR SIDE STOPPER, UPPER | ||||
| 67295-13010 |
KE36,38 T=2.3 |
2 | ||
| 67296-13010 |
KE36,38 T=1.0 |
4 | ||
| 68819 - COLLAR, TORSION BAR SUPPORT, NO.1 | ||||
| 68847-13020 |
KE36,38 |
4 | ||
| 68819 - COLLAR, TORSION BAR SUPPORT, NO.1 | ||||
| 68847-13020 |
KE36,38 |
4 | ||
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-13040 |
KE36,38 |
1 | ||
| 68834 - BAR, BACK DOOR TORSION, RH | ||||
| 68807-13040 |
KE36 |
1 | ||
| 68835 - BAR, BACK DOOR TORSION, LH | ||||
| 68808-13040 |
KE36 |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68802-13040 |
KE36,38..RHD;KE36..LHD..GEN;KE36..LHD..EUG |
1 | ||
| 68841 - COVER, TORSION BAR, RH | ||||
| 68851-1301003 |
KE36 GRAY,GRAY,TRIM0#,2# |
1 | ||
| 68841-13030 |
KE36 |
1 | ||
| 68851-1301005 |
KE36 BEIGE,BEIGE,TRIM0#,4# |
1 | ||
| 68841A - CLIP(FOR TORSION BAR COVER) | ||||
| 90467-0811408 |
KE36 IVORY,IVORY |
2 | ||
| 90467-0811415 |
KE36 BEIGE,BEIGE,TRIM0#,4# |
2 | ||
| 90467-0811413 |
KE36 GRAY,GRAY,TRIM0#,2# |
2 | ||
| 68842 - COVER, TORSION BAR, LH | ||||
| 68842-13030 |
KE36 |
1 | ||
| 68852-1301003 |
KE36 GRAY,GRAY,TRIM0#,2# |
1 | ||
| 68852-1301005 |
KE36 BEIGE,BEIGE,TRIM0#,4# |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-13030 |
KE36 |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69451-21010 |
KE36 |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69451-21010 |
KE36 |
1 | ||
| 69494 - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69469-91256 |
KE36,38 T=1.0 |
2 | ||
| 69469-91257 |
KE36,38 T=2.0 |
1 | ||
| 69494 - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69469-91256 |
KE36,38 T=1.0 |
2 | ||
| 69469-91257 |
KE36,38 T=2.0 |
1 | ||
| Common parts | ||||
| 90119-06057 | ||||
| 90159-40029 | ||||
| 90213-12019 | ||||
| 90213-12020 | ||||
| 91651-40620 | ||||
| 91651-40820 | ||||
| 93385-16020 | ||||
