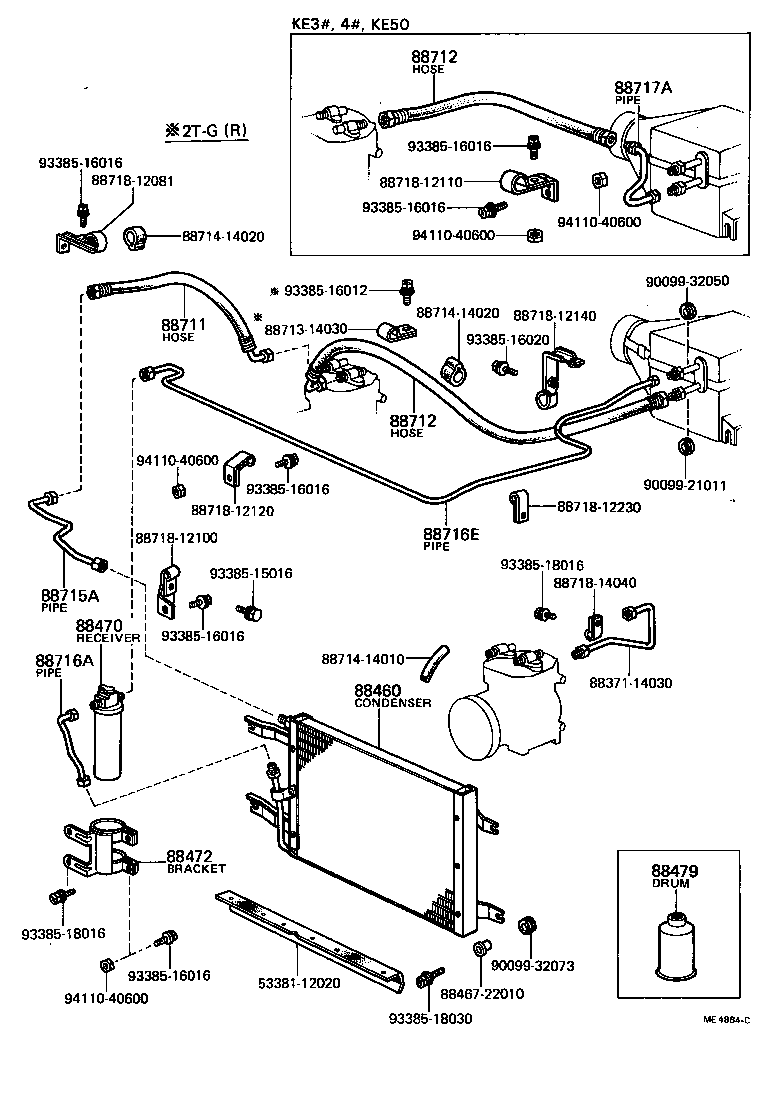

Toyota Corolla/trueno KE35 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-12030	KE3#,50,TE47,51..RHD..(ARL,GEN)	08/1974 - 01/1977	1
88460-12031	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88460-12060	KE3#,50,TE47..GEN	09/1977 - 05/1978	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010	KE3#,50,TE47,51..RHD..(ARL,GEN)	08/1974 - 01/1977	1
88470-12021	KE3#,50,TE47..GEN	09/1977 - 05/1978	1
88470-10010	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-12120	KE3#,50,TE47,51..RHD..(DLX,LT,SR,ST,STD)..(ARL,GEN)	08/1974 - 01/1977	1
88472-12120	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88472-12120	KE3#..GEN	08/1977 - 05/1978	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010	KE3#,50,TE47..RHD	01/1977 - 09/1977	2
88434-30010	KE3#..GEN	08/1977 - 05/1978	2
88434-30010	KE3#,50,TE47,51..RHD..(ARL,GEN)	08/1974 - 01/1977	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14030	KE3#,TE47..RHD..GEN	08/1974 - 11/1975	1
88711-12080	KE3#,50..RHD..(ARL,GEN)	11/1975 - 01/1977	1
88711-12080	KE3#,50..GEN	01/1977 - 05/1978	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60040	KE3#..RHD..GEN	08/1974 - 11/1975	1
88712-12140	KE3#,50..RHD	01/1977 - 05/1978	1
88712-22060	KE3#,50..RHD..(ARL,GEN)	11/1975 - 01/1977	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60040	KE3#..RHD..GEN	08/1974 - 11/1975	1
88712-12140	KE3#,50..RHD	01/1977 - 05/1978	1
88712-22060	KE3#,50..RHD..(ARL,GEN)	11/1975 - 01/1977	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12040	KE3#,TE47..RHD..GEN	08/1974 - 11/1975	1
88715-12042	KE35,50..GEN	01/1977 - 09/1977	1
88715-12041	KE3#,50..ARL,EUR,GEN	11/1975 - 01/1977	1
88715-12070	KE35,50..GEN	09/1977 - 08/1979	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12300	KE35,50..GEN	09/1977 - 08/1979	1
88716-12140	KE3#,50,TE47,51..RHD..(DLX,GSL,LT,SR,ST,STD)..(ARL,GEN)	08/1974 - 01/1977	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12131	KE3#..RHD..GEN	11/1975 - 01/1976	1
88716-12130	KE3#,TE47..RHD..(DLX,LT,ST,STD)..GEN	08/1974 - 11/1975	1
88716-12151	KE35..RHD	09/1977 - 08/1979	1
88716-12151	KE35..RHD	01/1977 - 09/1977	1
88716-12131	KE3#,50,TE47,51..RHD..(ARL,GEN)	01/1976 - 01/1977	1
88716-12131	KE3#,50,TE47..RHD	09/1977 - 05/1978	1
88716-12131	KE30,35,36,50,TE47,51..RHD	05/1978 - 08/1979	1
88716-12131	KE3#,50,TE47..RHD	01/1977 - 09/1977	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12060	KE3#..RHD..(DLX,STD)..GEN	08/1974 - 11/1975	1
88717-12060	KE3#,50..RHD..(ARL,GEN)	11/1975 - 07/1976	1
88717-12061	KE3#,50..RHD	01/1977 - 09/1977	1
88717-12070	KE35..GEN	01/1977 - 09/1977	1
88717-12061	KE3#,50..RHD..(ARL,GEN)	07/1976 - 01/1977	1
88717-12061	KE30,35,36,50..RHD	09/1977 - 08/1979	1
88717-12070	KE35..RHD	09/1977 - 08/1979	1
Common parts
53381-12020
88371-14030
88467-22010
88713-14030
88714-14010
88714-14020
88718-12081
88718-12100
88718-12110
88718-12120
88718-12140
88718-12230
88718-14040
90099-21011
90099-32050
90099-32073
93385-15016
93385-16012
93385-16016
93385-16020
93385-18016
93385-18030
94110-40600

KE35R-CD (1974)

(7408- )RHD
