KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )

Click highlighted areas on diagram

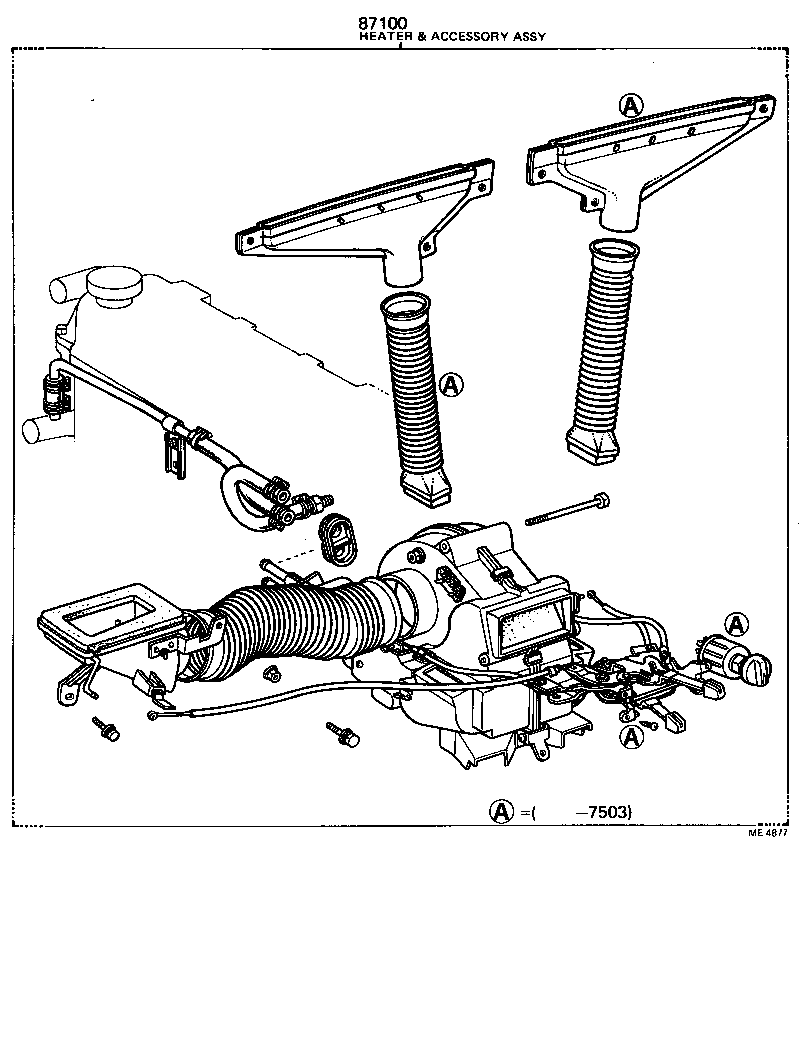

diagram 87100
Part # Description Qty Price
87100 - HEATER AND ACCESSORY ASSY
87100-12240

KE3#,50..RHD

HEAVY HEATER

 1
87100-12211

KE3#,50..RHD..(ARL,GEN)

 1
87100-12211

KE3#,50..RHD

 1

(7408- )

Click highlighted areas on diagram

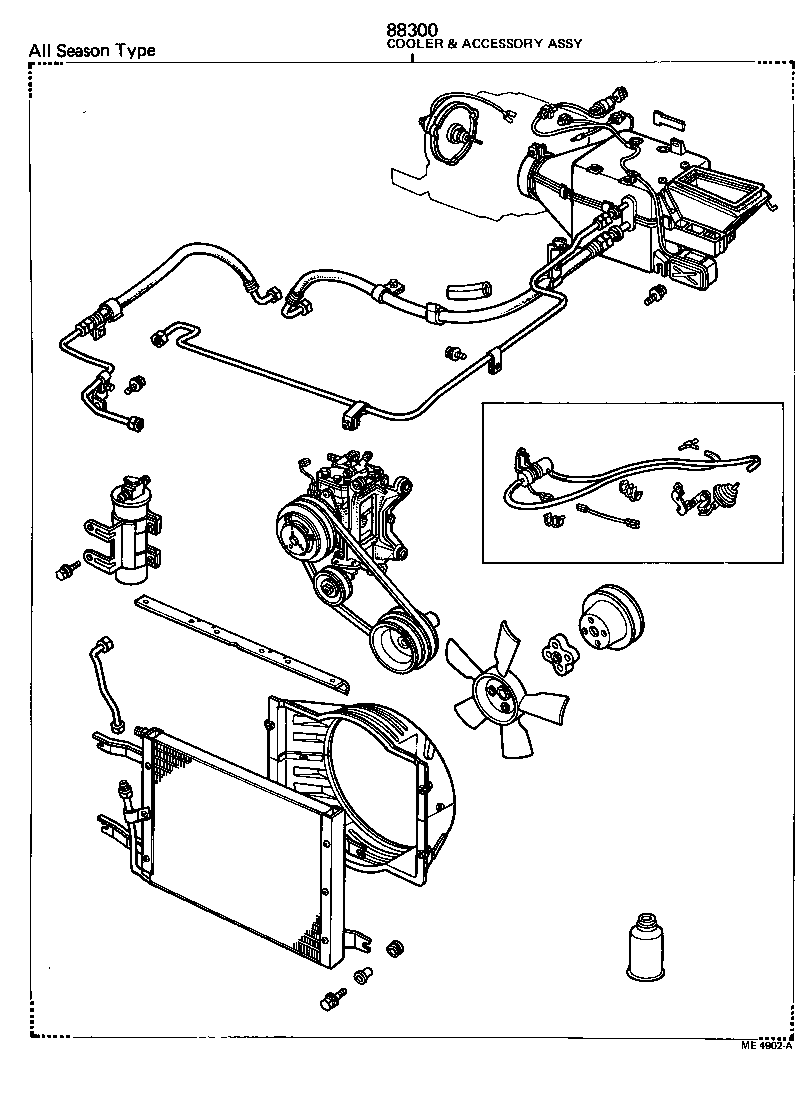

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-19145

KE3#..RHD..GEN

 1
88300-19146

KE3#,50..RHD..(ARL,GEN)

 1
88300-12112

KE3#..RHD

 1
88300-12113

KE3#..RHD

 1
88300-12371

KE35..RHD

 1
88300-12370

KE35..RHD

 1
88300-12550

KE30,35..RHD

 1

(7408-7708)

Click highlighted areas on diagram

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-19145

KE3#..RHD..GEN

 1
88300-19146

KE3#,50..RHD..(ARL,GEN)

 1
88300-12112

KE3#..RHD

 1
88300-12113

KE3#..RHD

 1
88300-12371

KE35..RHD

 1
88300-12370

KE35..RHD

 1
88300-12550

KE30,35..RHD

 1
