KE35R-CD (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Aug 1979
Engine
3KH
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7408- )

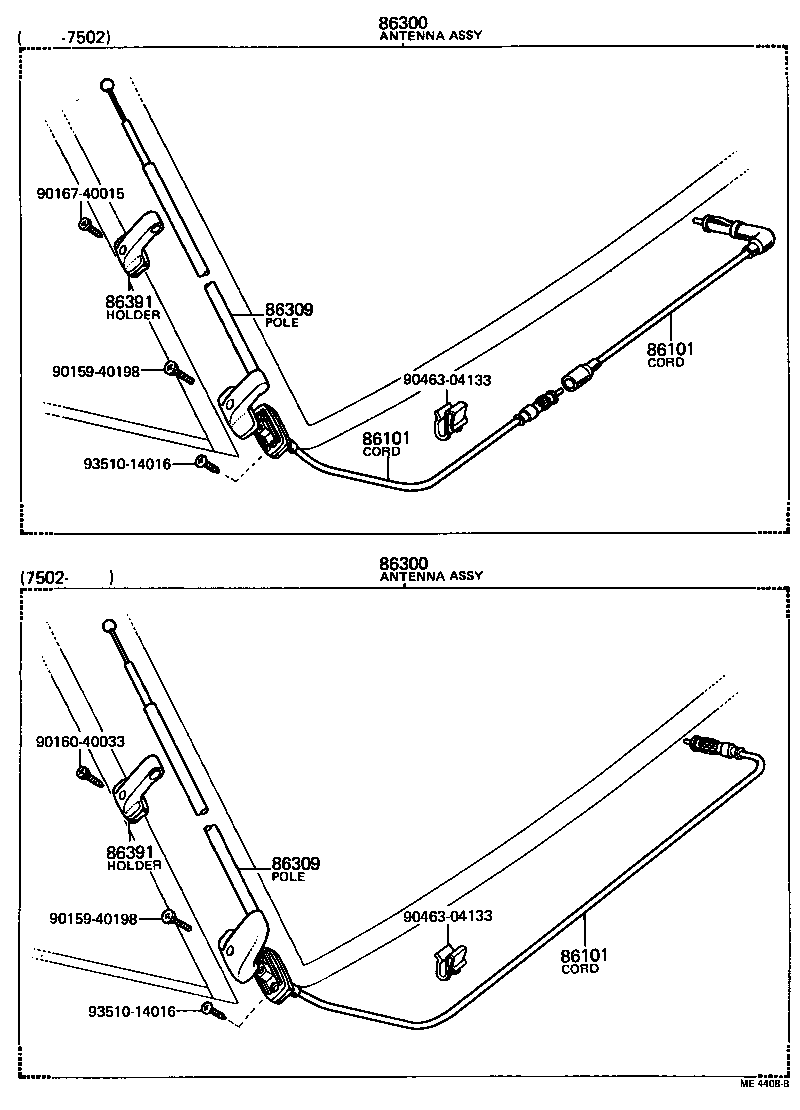

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-12080 |
KE35 TUNER SIDE |
1 | ||
| 86101-12040 |
KE35 ANTENNA SIDE |
1 | ||
| 86101-12041 |
KE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN) |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-12080 |
KE35 TUNER SIDE |
1 | ||
| 86101-12040 |
KE35 ANTENNA SIDE |
1 | ||
| 86101-12041 |
KE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN) |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-12080 |
KE35 TUNER SIDE |
1 | ||
| 86101-12040 |
KE35 ANTENNA SIDE |
1 | ||
| 86101-12041 |
KE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN) |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-12080 |
KE35,55..RHD |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-12080 |
KE35,55..RHD |
1 | ||
| 86309 - POLE SUB-ASSY, PILLAR ANTENNA | ||||
| 86309-12020 |
KE35..RHD |
1 | ||
| 86309-12021 |
KE35..RHD |
1 | ||
| 86309-14051 |
KE35,55..HT |
1 | ||
| 86309-14050 |
KE35..RHD |
1 | ||
| 86309 - POLE SUB-ASSY, PILLAR ANTENNA | ||||
| 86309-12020 |
KE35..RHD |
1 | ||
| 86309-12021 |
KE35..RHD |
1 | ||
| 86309-14051 |
KE35,55..HT |
1 | ||
| 86309-14050 |
KE35..RHD |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-12050 |
KE35 |
1 | ||
| 86391-12051 |
KE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN) |
1 | ||
| 86391-12052 |
KE35..SR;KE35..(A20,K40)..DLX |
1 | ||
| 86391-12053 |
KE35,55..HT |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-12050 |
KE35 |
1 | ||
| 86391-12051 |
KE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN) |
1 | ||
| 86391-12052 |
KE35..SR;KE35..(A20,K40)..DLX |
1 | ||
| 86391-12053 |
KE35,55..HT |
1 | ||
| Common parts | ||||
| 90159-40198 | ||||
| 90160-40033 | ||||
| 90167-40015 | ||||
| 90463-04133 | ||||
| 93510-14016 | ||||
