Toyota Corolla/trueno KE35 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
GR
COROLLA/TRUENO
KE35R-CD (1974)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979

Engine 3KH

Transmission 2FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

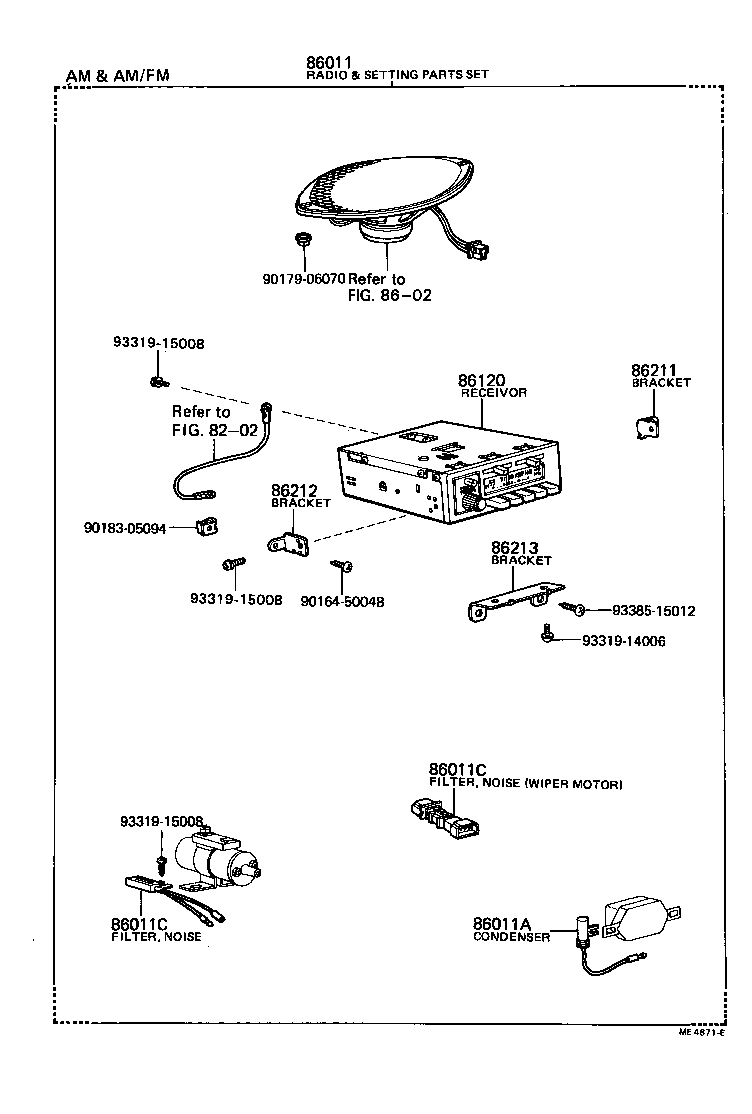

(7408-7701)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011 - RADIO & SETTING PARTS SET
86011-19055	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW)	08/1974 - 01/1977	1
86011-19065	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW/UKW)	08/1974 - 01/1977	1
86011-19046	KE3#,50,TE47,51..EUR,GEN AM(MW)/FM	09/1976 - 01/1977	1
86011A - CONDENSER, RADIO SETTING
90980-04010	KE55..HT,SED;KE3#,50,TE47,51..ARL,GEN	08/1974 - 07/1981	1
86011C - FILTER, NOISE
90980-05009	KE3#,50,TE47,51..ARL,EUR,GEN IGNITION COIL	08/1974 - 01/1977	1
90980-05019	KE3#,50,TE47,51..ARL,EUR,GEN AM/FM,WIPER MOTOR	08/1974 - 01/1977	1
86011C - FILTER, NOISE
90980-05009	KE3#,50,TE47,51..ARL,EUR,GEN IGNITION COIL	08/1974 - 01/1977	1
90980-05019	KE3#,50,TE47,51..ARL,EUR,GEN AM/FM,WIPER MOTOR	08/1974 - 01/1977	1
86120 - RECEIVER ASSY, RADIO
86120-12090	KE3#,50,TE47,51..ARL,EUR,GEN AM(MW)	08/1974 - 01/1977	1
86120-12160	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW)	08/1974 - 01/1977	1
86120-14071	KE3#..GEN AM/FM	01/1977 - 04/1977	1
86120-12121	KE3#,50,TE47,51..EUR,GEN AM(MW)/FM	09/1976 - 01/1977	1
86120-12150	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW/UKW)	08/1974 - 01/1977	1
86120-14072	KE3#..GEN AM/FM	04/1977 - 09/1977	1
86120-14072	KE30,35,36..GEN AM/FM	09/1977 - 05/1979	1
86211 - BRACKET, RADIO, NO.1
86214-12010	KE3#..ARL,EUR,GEN	08/1974 - 01/1977	1
86212 - BRACKET, RADIO, NO.2
86214-12020	KE3#..ARL,EUR,GEN	08/1974 - 01/1977	1
Common parts
90164-50048
90179-06070
90183-05094
93319-14006
93319-15008
93385-15012
Linked diagrams
8202
8602

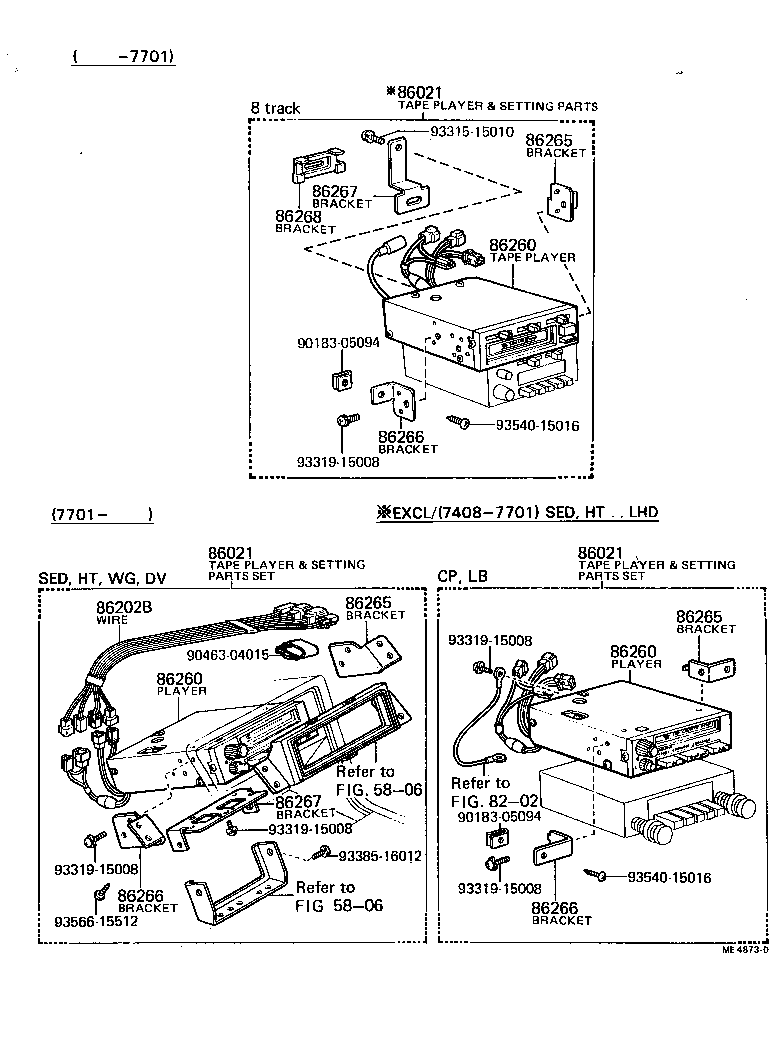

(7408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-19015	KE30,35..RHD 8-TRACK	08/1974 - 01/1977	1
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-19015	KE30,35..RHD 8-TRACK	08/1974 - 01/1977	1
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-19015	KE30,35..RHD 8-TRACK	08/1974 - 01/1977	1
86260 - TAPE PLAYER ASSY
86260-12030	KE30,35..ARL,GEN	08/1974 - 01/1977	1
86260 - TAPE PLAYER ASSY
86260-12030	KE30,35..ARL,GEN	08/1974 - 01/1977	1
86260 - TAPE PLAYER ASSY
86260-12030	KE30,35..ARL,GEN	08/1974 - 01/1977	1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-12040	KE30,35..RHD	08/1974 - 01/1977	1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-12040	KE30,35..RHD	08/1974 - 01/1977	1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-12040	KE30,35..RHD	08/1974 - 01/1977	1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-12050	KE30,35..RHD	08/1974 - 01/1977	1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-12050	KE30,35..RHD	08/1974 - 01/1977	1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-12050	KE30,35..RHD	08/1974 - 01/1977	1
86267 - BRACKET, TAPE PLAYER, NO.3
86266-12050	KE30,35,50,TE47,51..ARL,GEN AM/FM RADIO	08/1974 - 01/1977	1
86266-12040	KE30,35,50,TE47,51..ARL,GEN AM RADIO	08/1974 - 01/1977	1
86267 - BRACKET, TAPE PLAYER, NO.3
86266-12050	KE30,35,50,TE47,51..ARL,GEN AM/FM RADIO	08/1974 - 01/1977	1
86266-12040	KE30,35,50,TE47,51..ARL,GEN AM RADIO	08/1974 - 01/1977	1
Common parts
90183-05094
90463-04015
93315-15010
93319-15008
93385-16012
93540-15016
93566-15512
Linked diagrams
5806
8202

(7701- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011 - RADIO & SETTING PARTS SET
86011-19055	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW)	08/1974 - 01/1977	1
86011-19065	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW/UKW)	08/1974 - 01/1977	1
86011-19046	KE3#,50,TE47,51..EUR,GEN AM(MW)/FM	09/1976 - 01/1977	1
86011A - CONDENSER, RADIO SETTING
90980-04010	KE55..HT,SED;KE3#,50,TE47,51..ARL,GEN	08/1974 - 07/1981	1
86011C - FILTER, NOISE
90980-05009	KE3#,50,TE47,51..ARL,EUR,GEN IGNITION COIL	08/1974 - 01/1977	1
90980-05019	KE3#,50,TE47,51..ARL,EUR,GEN AM/FM,WIPER MOTOR	08/1974 - 01/1977	1
86011C - FILTER, NOISE
90980-05009	KE3#,50,TE47,51..ARL,EUR,GEN IGNITION COIL	08/1974 - 01/1977	1
90980-05019	KE3#,50,TE47,51..ARL,EUR,GEN AM/FM,WIPER MOTOR	08/1974 - 01/1977	1
86120 - RECEIVER ASSY, RADIO
86120-12090	KE3#,50,TE47,51..ARL,EUR,GEN AM(MW)	08/1974 - 01/1977	1
86120-12160	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW)	08/1974 - 01/1977	1
86120-14071	KE3#..GEN AM/FM	01/1977 - 04/1977	1
86120-12121	KE3#,50,TE47,51..EUR,GEN AM(MW)/FM	09/1976 - 01/1977	1
86120-12150	KE3#,50,TE47,51..ARL,EUR,GEN AM(LW/MW/UKW)	08/1974 - 01/1977	1
86120-14072	KE3#..GEN AM/FM	04/1977 - 09/1977	1
86120-14072	KE30,35,36..GEN AM/FM	09/1977 - 05/1979	1
86211 - BRACKET, RADIO, NO.1
86214-12010	KE3#..ARL,EUR,GEN	08/1974 - 01/1977	1
86211 - BRACKET, RADIO, NO.1
86214-12010	KE3#..ARL,EUR,GEN	08/1974 - 01/1977	1
86211 - BRACKET, RADIO, NO.1
86214-12010	KE3#..ARL,EUR,GEN	08/1974 - 01/1977	1
86212 - BRACKET, RADIO, NO.2
86214-12020	KE3#..ARL,EUR,GEN	08/1974 - 01/1977	1
86212 - BRACKET, RADIO, NO.2
86214-12020	KE3#..ARL,EUR,GEN	08/1974 - 01/1977	1
Common parts
90170-09167
90179-06070
90179-06115
90183-05094
90201-09365
93319-15008
93385-16012
93540-15014
93540-15020
93566-54516
Linked diagrams
5806
8202
8602

KE35R-CD (1974)

(7408-7701)

(7408- )

(7701- )
