KE35R-CD (1974)
Toyota Corolla/Trueno
(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12020 |
KE3#,TE47..RHD..(ARL,GEN) AUSTRALIA SPEC |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12020 |
KE3#,TE47..RHD..(ARL,GEN) AUSTRALIA SPEC |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01006 |
KE3#,TE47..RHD..(ARL,GEN) AUSTRALIA SPEC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12140 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 84310K - SWITCH KIT, LIGHT CONTROL | ||||
| 04841-30110 |
KE3#,50,TE3#,47,51..RHD TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20010 |
KE3#,TE3#,47 TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12040 |
KE3#,TE3#,47 |
1 | ||
| 84450-14021 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19015 |
KE3#,50,TE3#,47,51..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
KE3#,50,TE3#,47,51..RHD MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19015 |
KE3#,50,TE3#,47,51..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
KE3#,50,TE3#,47,51..RHD MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12032 |
KE3#,50,TE47,51..RHD..(ARL,GEN) W/COOLER |
1 | ||
| 84732-12030 |
KE3#,TE47..RHD..GEN W/COOLER |
1 | ||
| 84732-12032 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12033 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12050 |
KE3#,50,TE47..ARL,GEN,SA W/COOLER |
1 | ||
| 84732-12031 |
KE3#,TE47..RHD..GEN W/COOLER |
1 | ||
| 84732-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
KE3#,TE47..RHD..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12020 |
KE3#,50,TE47,51..RHD..(ARL,GEN) BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47,51..RHD..(ARL,GEN) TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
KE3#,TE47..RHD..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12020 |
KE3#,50,TE47,51..RHD..(ARL,GEN) BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47,51..RHD..(ARL,GEN) TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
KE3#,TE47..RHD..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12020 |
KE3#,50,TE47,51..RHD..(ARL,GEN) BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47,51..RHD..(ARL,GEN) TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12020 |
KE3#..ARL,EUR,GEN |
1 | ||
| 84790A - BOLT OR NUT, REAR WINDOW DEFOGGER SWITCH SET | ||||
| 90179-14191 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 84791 - KNOB, REAR WINDOW DEFOGGER SWITCH | ||||
| 84791-12020 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12030 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85500-12031 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85500-30160 |
KE3#,TE47 |
1 | ||
| 85500-20042 |
KE3#,TE3#,47 |
1 | ||
| Common parts | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93385-16020 | ||||
| 94511-00300 | ||||
(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-24030 |
3KH..KE30,35..A20 |
1 | ||
| 28309 - BRACKET, STARTER RELAY | ||||
| 85999-12010 |
3KH..KE30,35..A20 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12020 |
KE3#,TE3#,47..RHD |
1 | ||
| 81980-12030 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-12040 |
KE3#,TE3#..RHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,47,51 5A |
1 | ||
| 99118-62915 |
KE3#,5#,TE3#,47,51 15A,15A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,47,51 5A |
1 | ||
| 99118-62915 |
KE3#,5#,TE3#,47,51 15A,15A |
6 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12030 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 82611-12050 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12030 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 82611-12050 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90109-06104 | ||||
| 91612-40612 | ||||
| 91621-40612 | ||||
| 93385-16020 | ||||

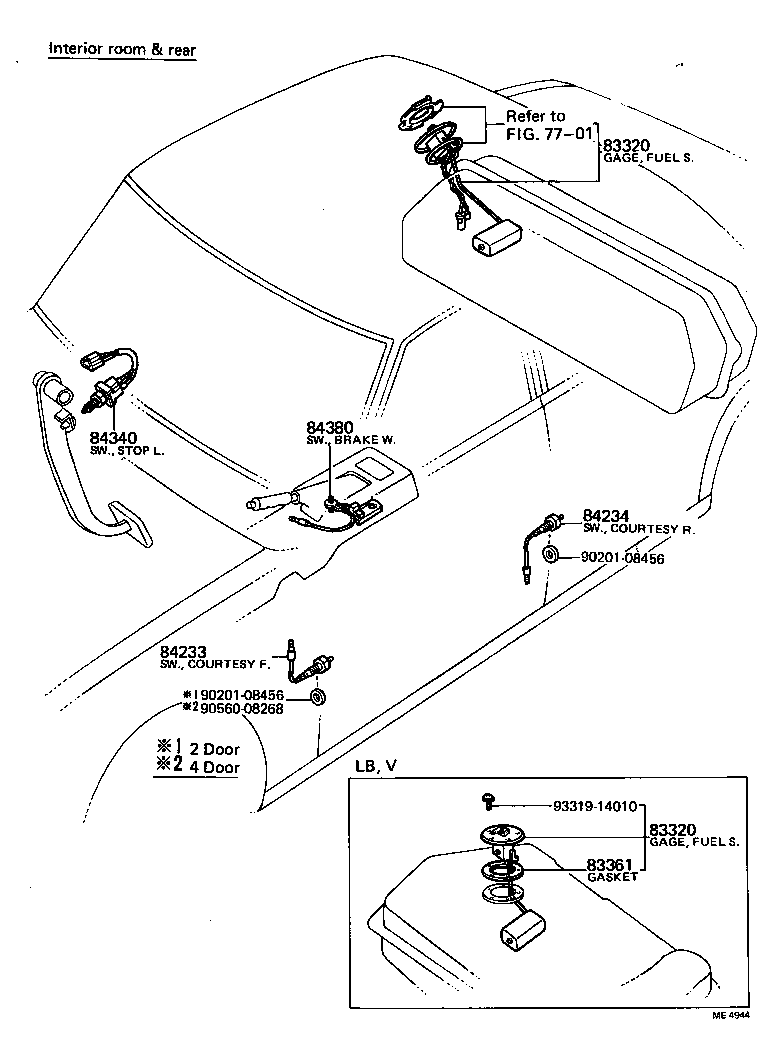

(7408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19205 |
KE30,35,TE31..DLX,STD |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19205 |
KE30,35,TE31..DLX,STD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
KE3#,TE3#,47 |
2 | ||
| 84230-20040 |
KE3#,50,TE3#,47,51 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-12020 |
KE35,TE3#,47..RHD W/O BRAKE WARNING SWITCH |
1 | ||
| 84340-12021 |
KE35,50,TE3#,47,51..RHD W/O BRAKE WARNING SWITCH |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-14010 |
KE35,TE3#,47..RHD W/O BRAKE WARNING SWITCH |
1 | ||
| 84380-12030 |
KE35,50,TE3#,47,51..RHD W/O BRAKE WARNING SWITCH |
1 | ||
| Common parts | ||||
| 90201-08456 | ||||
| 90560-08268 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 7701 | ||||

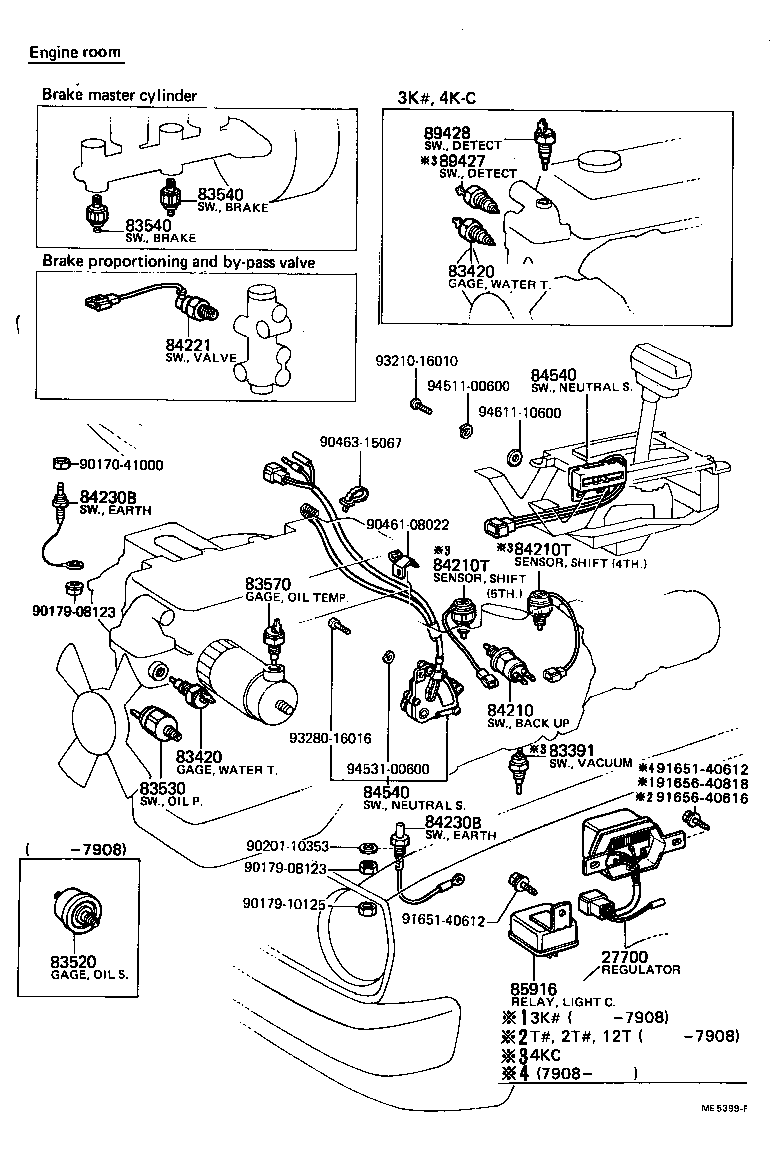

(7408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-36020 |
3K#,2T#..KE3#,50,TE3#,47,51 |
1 | ||
| 27700-36010 |
3K#,2T#..KE3#,50,TE3#,47,51 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
KE3#,5#,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12050 |
KE30,35..RHD..A20 |
1 | ||
| 84540-12051 |
KE30,35..RHD..A20 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12050 |
KE30,35..RHD..A20 |
1 | ||
| 84540-12051 |
KE30,35..RHD..A20 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85919-20012 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90170-41000 | ||||
| 90179-08123 | ||||
| 90179-10125 | ||||
| 90201-10353 | ||||
| 90461-08022 | ||||
| 90463-15067 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 93210-16010 | ||||
| 93280-16016 | ||||
| 94511-00600 | ||||
| 94531-00600 | ||||
| 94611-10600 | ||||
(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19015 |
KE3#,50,TE3#,47,51..RHD TOKAIRIKA |
1 | ||
| 84112-19035 |
KE3#,50,TE3#,47,51..RHD MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12020 |
KE3#,TE47..RHD..(ARL,GEN) AUSTRALIA SPEC |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12020 |
KE3#,TE47..RHD..(ARL,GEN) AUSTRALIA SPEC |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01006 |
KE3#,TE47..RHD..(ARL,GEN) AUSTRALIA SPEC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12140 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20010 |
KE3#,TE3#,47 TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12040 |
KE3#,TE3#,47 |
1 | ||
| 84450-14021 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19015 |
KE3#,50,TE3#,47,51..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
KE3#,50,TE3#,47,51..RHD MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19015 |
KE3#,50,TE3#,47,51..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
KE3#,50,TE3#,47,51..RHD MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19015 |
KE3#,50,TE3#,47,51..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
KE3#,50,TE3#,47,51..RHD MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12032 |
KE3#,50,TE47,51..RHD..(ARL,GEN) W/COOLER |
1 | ||
| 84732-12030 |
KE3#,TE47..RHD..GEN W/COOLER |
1 | ||
| 84732-12032 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12033 |
KE3#,50,TE47..GEN W/COOLER |
1 | ||
| 84732-12050 |
KE3#,50,TE47..ARL,GEN,SA W/COOLER |
1 | ||
| 84732-12031 |
KE3#,TE47..RHD..GEN W/COOLER |
1 | ||
| 84732-12020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=3 |
1 | ||
| 90170-11207 |
KE3#,50,TE3#,47,51 T=12.5 |
1 | ||
| 90170-11207 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN T=12.5 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
KE3#,TE47..RHD..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12020 |
KE3#,50,TE47,51..RHD..(ARL,GEN) BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47,51..RHD..(ARL,GEN) TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
KE3#,TE47..RHD..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12020 |
KE3#,50,TE47,51..RHD..(ARL,GEN) BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47,51..RHD..(ARL,GEN) TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
KE3#,TE47..RHD..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12020 |
KE3#,50,TE47,51..RHD..(ARL,GEN) BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12010 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84731-12020 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84731-12032 |
KE3#,50,TE47..GEN TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12031 |
KE3#,50,TE47,51..RHD..(ARL,GEN) TEMPERATURE CONTROL,W/COOLER |
1 | ||
| 84731-12021 |
KE3#,50,TE47..GEN BLOWER CONTROL,W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12020 |
KE3#..ARL,EUR,GEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 84790-12020 |
KE3#..ARL,EUR,GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
KE3#,50,TE47,51..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12030 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85500-12031 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85500-30160 |
KE3#,TE47 |
1 | ||
| 85500-20042 |
KE3#,TE3#,47 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90201-11001 | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 94511-00300 | ||||
(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-24030 |
3KH..KE30,35..A20 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12020 |
KE3#,TE3#,47..RHD |
1 | ||
| 81980-12030 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,47,51 5A |
1 | ||
| 99118-62915 |
KE3#,5#,TE3#,47,51 15A,15A |
6 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12030 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 82611-12050 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85919-20012 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20011 |
KE3#,50,TE3#,47,51 |
1 | ||
| 85919-20012 |
KE3#,50,TE3#,47,51 |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 91621-40012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
