KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )

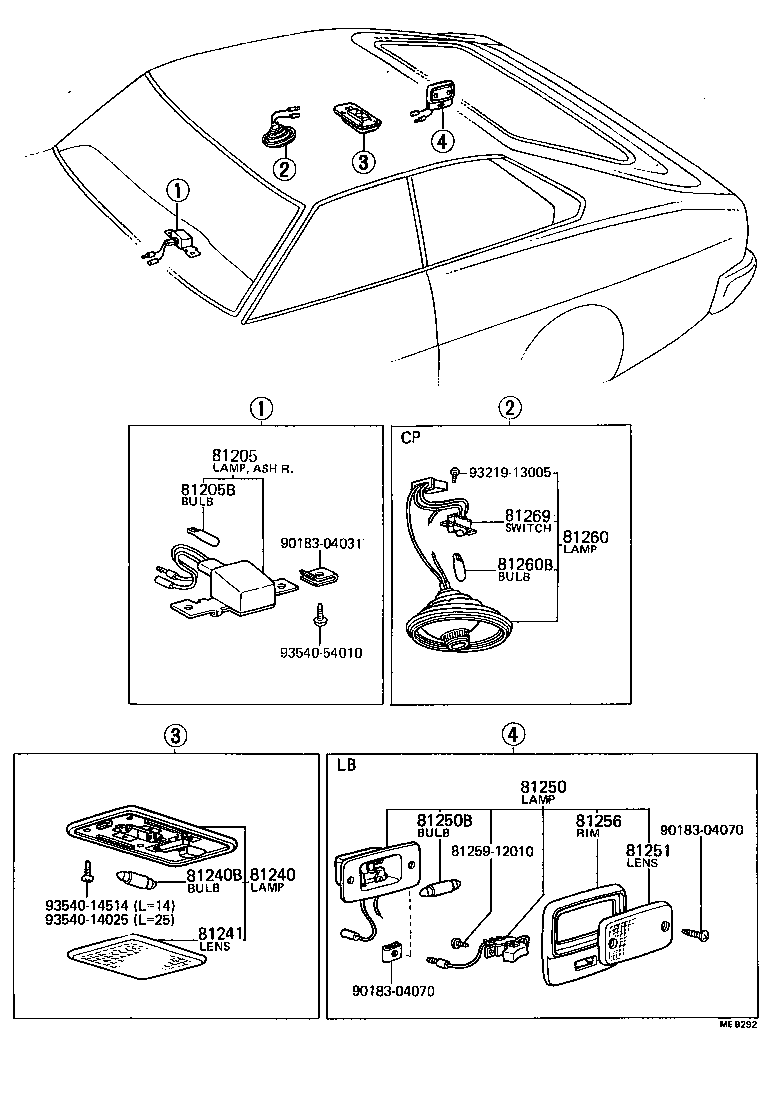

Click highlighted areas on diagram

diagram 81205 81205B 81240 81240B 81241 81250 81250B 81251 81256 8125912010 81260 81260B 81269 9018304031 9018304070 9018304070 9321913005 9354014025 9354014514 9354054010
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81205-12010

KE30..DLX;KE35,36,TE3#;KE30..STD..(ARL,GEN)

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

KE30..DLX;KE30..STD..(ARL,GEN);KE35,36,50,TE3#,47,51

12V 1.2W W/O SOCKET,12V 1.4W

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-1201005

KE30,35,50,TE51

BEIGE,BEIGE,TRIM0#,4#

 1
81240-1201003

KE30,35,50,TE51

GRAY,GRAY,TRIM0#,2#

 1
81240-1201008

KE30,35

IVORY,IVORY

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

KE3#,5#,TE3#,47,51

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-14010

KE3#,50,TE3#,47,51

 1
Common parts
81259-12010
90183-04031
90183-04070
93219-13005
93540-14025
93540-14514
93540-54010
