KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )DV,HT,SED,WG

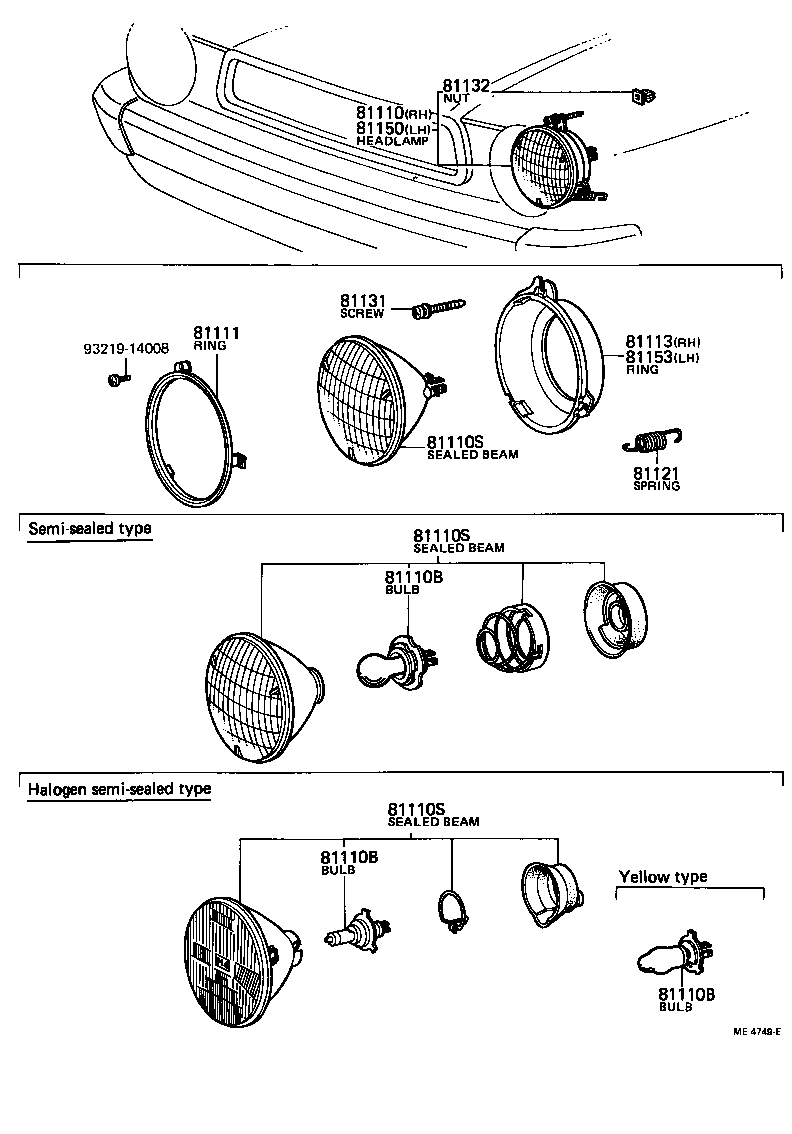

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81110B 81110S 81110S 81110S 81111 81113 81121 81131 81132 81150 81153 9321914008
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-19405

KE3#,TE3#..RHD

IKI

 1
81110-19405

KE3#..RHD

TOSHIBA

 1
81110-19395

KE3#,TE3#..RHD

KOITO

 1
81110S - SEALED BEAM UNIT, NO.1
90981-01012

KE3#,TE3#..RHD

12V 50/40W,TOSHIBA

 2
90981-01015

KE3#,5#,TE3#,47,51..RHD

12V 50/40W,KOITO

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01012

KE3#,TE3#..RHD

12V 50/40W,TOSHIBA

 2
90981-01015

KE3#,5#,TE3#,47,51..RHD

12V 50/40W,KOITO

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01012

KE3#,TE3#..RHD

12V 50/40W,TOSHIBA

 2
90981-01015

KE3#,5#,TE3#,47,51..RHD

12V 50/40W,KOITO

 2
81111 - RING, SEALED BEAM RETAINING
81111-10120

KE3#,50,TE3#,47,51

KOITO

 2
81111-12021

KE3#

TOSHIBA

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-12200

KE35..SR;KE30..LHD..A20;KE35..DLX..EUG;KE30,36,TE3#..RHD;KE35..DLX..(ARL,GEN);KE30,36..LHD..K40..EUG;KE30,36..LHD..K40..GEN

IKI

 1
81113-12200

KE3#

TOSHIBA

 1
81113-12210

KE3#,TE3#

KOITO

 1
81121 - SPRING, HEADLAMP TENSION
81121-12070

KE30,35,36,TE3#

KOITO

 2
81121-12140

KE3#

TOSHIBA

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-12021

KE3#

TOSHIBA

 4
81131-12150

KE30,35,36,TE3#

KOITO

 4
81132 - NUT, HEADLAMP SELF LOCKING
90189-05013

KE3#,5#,TE3#,51

 4
81150 - HEADLAMP ASSY, LH
81150-19345

KE3#..RHD

TOSHIBA

 1
81150-19355

KE3#,TE3#..RHD

KOITO

 1
81150-19345

KE3#,TE3#..RHD

IKI

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-12150

KE3#,TE3#

KOITO

 1
81153-12140

KE35..SR;KE30..LHD..A20;KE35..DLX..EUG;KE30,36,TE3#..RHD;KE35..DLX..(ARL,GEN);KE30,36..LHD..K40..EUG;KE30,36..LHD..K40..GEN

IKI

 1
81153-12140

KE3#

TOSHIBA

 1
Common parts
93219-14008
