KE35R-CD (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Aug 1979
Engine
3KH
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7408- )RHD

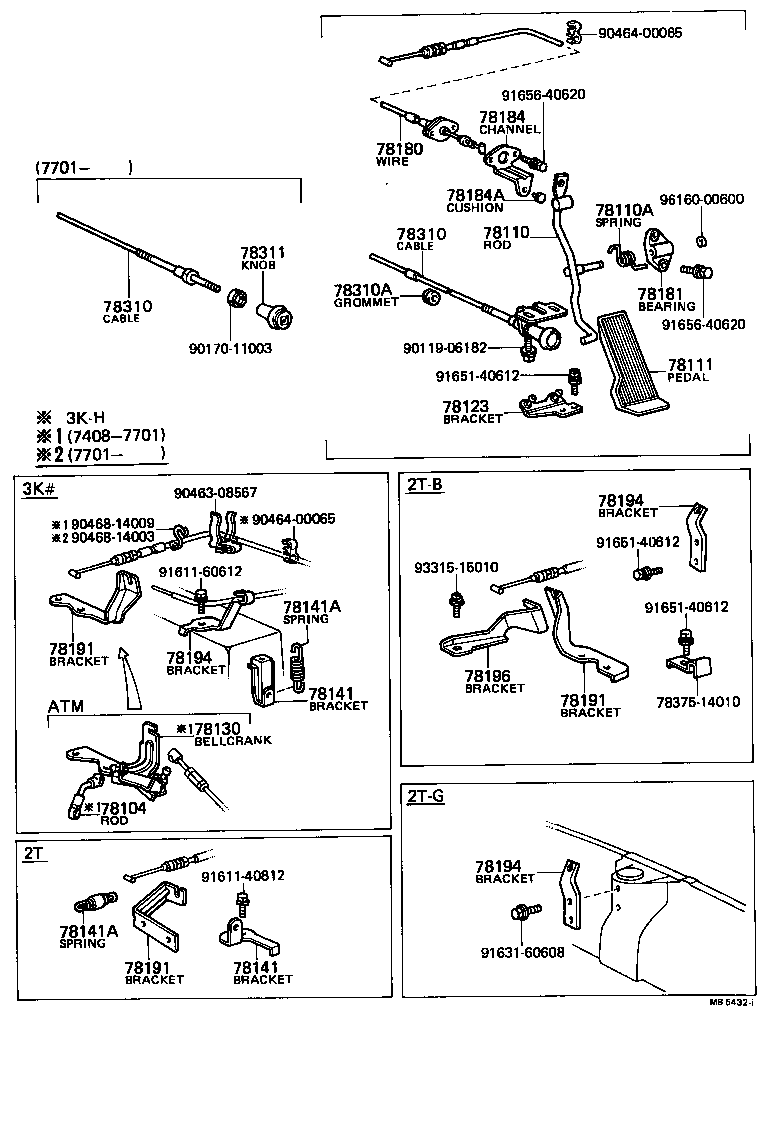

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78130-12040 |
KE30,35..A20 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-12070 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-14010 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-12070 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78160-12010 |
KE30,35..A20 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12092 |
KE3#..RHD..(DLX,STD) |
1 | ||
| 78180-12090 |
KE3#..RHD..(DLX,STD) |
1 | ||
| 78180-12091 |
KE3#..RHD..(DLX,STD) |
1 | ||
| 78180-12093 |
KE30,35,36,5#..RHD..(DLX,STD) |
1 | ||
| 78180-12093 |
KE55..3FC,4F;KE30,35,36,50..RHD..(DLX,STD) |
1 | ||
| 78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT | ||||
| 78124-12040 |
KE3#,5#,TE3#,47,51..RHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78181-12050 |
KE3#,TE3#..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
KE3#,5#,TE3#,47,51 |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78186-10010 |
KE3#,50..DLX,STD |
1 | ||
| 78186-12040 |
KE3#,50..DLX,STD |
1 | ||
| 78186-12020 |
KE3#..DLX,STD |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78186-10010 |
KE3#,50..DLX,STD |
1 | ||
| 78186-12040 |
KE3#,50..DLX,STD |
1 | ||
| 78186-12020 |
KE3#..DLX,STD |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78186-10010 |
KE3#,50..DLX,STD |
1 | ||
| 78186-12040 |
KE3#,50..DLX,STD |
1 | ||
| 78186-12020 |
KE3#..DLX,STD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-12090 |
KE3#..RHD |
1 | ||
| 78310-12250 |
KE3#..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-12090 |
KE3#..RHD |
1 | ||
| 78310-12250 |
KE3#..RHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-13055 |
KE3#,5# |
1 | ||
| Common parts | ||||
| 78375-14010 | ||||
| 90119-06182 | ||||
| 90170-11003 | ||||
| 90463-08567 | ||||
| 90464-00065 | ||||
| 90468-14003 | ||||
| 90468-14009 | ||||
| 91611-40812 | ||||
| 91611-60612 | ||||
| 91631-60608 | ||||
| 91651-40612 | ||||
| 91656-40620 | ||||
| 93315-15010 | ||||
| 96160-00600 | ||||
