Toyota Corolla/trueno KE35 FUEL TANK & TUBE

KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979

Engine 3KH

Transmission 2FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(7408- )CP,HT,SED

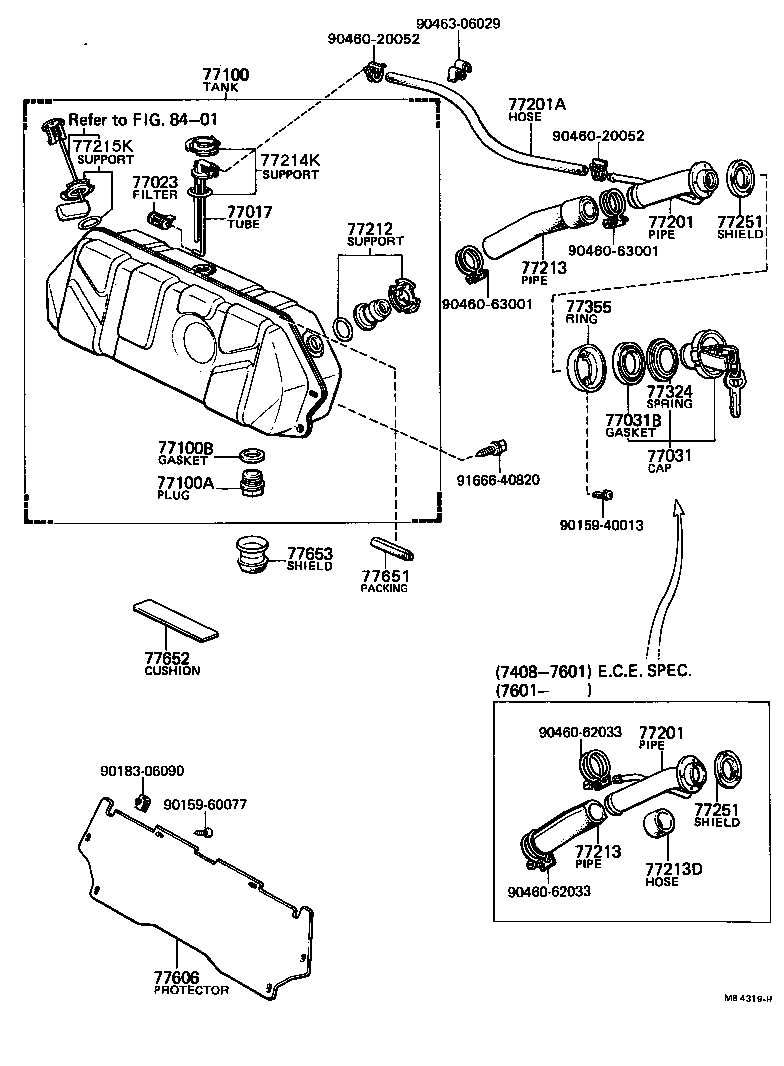

Click highlighted areas on diagram

Part #	Description	Period	Qty
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050	KE30,35,TE3#,47	07/1977 - 08/1977	1
77031 - CAP ASSY, FUEL TANK
69058-12010	KE30,35,TE3#,47	08/1974 - 05/1975	1
69058-12030	KE30,35,50,TE3#,47,51	08/1975 - 06/1977	1
69058-12011	KE30,35,TE3#,47	05/1975 - 08/1975	1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12031	KE3#,50,TE3#,47,51	08/1974 - 08/1976	1
77100 - TANK ASSY, FUEL
77100-12901	KE30,35..DLX,STD	08/1974 - 01/1977	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	KE3#,5#,TE3#,47,51	08/1974 - 05/1979	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	KE3#,5#,TE3#,47,51	07/1975 - 05/1979	1
90430-12038	KE3#,TE3#,47	08/1974 - 07/1975	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12150	KE35 ECE SPEC	08/1974 - 01/1975	1
77201-12100	KE30,35,TE3#,47	08/1974 - 01/1976	1
77201-12130	KE30,35 ECE SPEC	01/1975 - 01/1976	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-12150	KE35 ECE SPEC	08/1974 - 01/1975	1
77201-12100	KE30,35,TE3#,47	08/1974 - 01/1976	1
77201-12130	KE30,35 ECE SPEC	01/1975 - 01/1976	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-18002	KE30,35,TE3#,47	08/1974 - 01/1976	1
90445-18023	KE30,35,TE3#	01/1976 - 05/1978	1
77212 - SUPPORT KIT, FUEL TANK INLET
04772-12020	KE30,35,55,TE3#,47..CP,HT,SED	08/1974 - 07/1981	1
77213 - HOSE, FUEL TANK SUB INLET
77213-12080	KE30,35 ECE SPEC	08/1974 - 01/1976	1
77213-12050	KE30,35,TE3#	08/1974 - 01/1976	1
77213 - HOSE, FUEL TANK SUB INLET
77213-12080	KE30,35 ECE SPEC	08/1974 - 01/1976	1
77213-12050	KE30,35,TE3#	08/1974 - 01/1976	1
77214K - SUPPORT KIT, FUEL TANK TUBE
04772-12010	KE30,35,55,TE3#,47..CP,HT,SED	08/1974 - 07/1981	1
77215K - SUPPORT KIT, FUEL TANK GAGE
04772-12020	KE30,35,55,TE3#,47..CP,HT,SED	08/1974 - 07/1981	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-12010	KE3#,5#,TE3#,47,51	08/1974 - 07/1981	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-12010	KE3#,5#,TE3#,47,51	08/1974 - 07/1981	1
77324 - SPRING, FUEL TANK CAP
77324-12011	KE3#,50,TE3#,47,51	08/1974 - 08/1976	1
77355 - RING, INLET BOX
77371-12030	KE35,TE37	08/1974 - 08/1976	1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-12070	KE30,35,55,TE3#..HT,SED	08/1974 - 07/1981	1
77651 - PACKING, FUEL TANK BRACKET
77276-12010	KE30,35,TE3#,47	08/1974 - 01/1976	1
77652 - CUSHION, FUEL TANK, NO.1
77652-12030	KE30,35,55,TE3#,47..CP,HT,SED	08/1974 - 07/1981	1
77653 - SHIELD, FUEL TANK DRAIN PLUG
77292-12010	KE30,35,55,TE3#,47..CP,HT,SED	08/1974 - 07/1981	1
Common parts
90159-40013
90159-60077
90183-06090
90460-20052
90460-62033
90460-63001
90463-06029
91666-40820
Linked diagrams
8401

(7408-7511)KE30,35,TE3#,47

Click highlighted areas on diagram

Part #	Description	Period	Qty
77135 - BRACKET, CHECK VALVE
77277-12030	KE3#..RHD AUSTRALIA SPEC	08/1974 - 11/1975	1
77241 - TUBE, FUEL MAIN, NO.1
77251-12020	KE30,35,50,TE3#,47,51	08/1974 - 01/1977	1
77251-12021	KE30,35,50,TE3#,47,51	01/1977 - 07/1978	1
77241 - TUBE, FUEL MAIN, NO.1
77251-12020	KE30,35,50,TE3#,47,51	08/1974 - 01/1977	1
77251-12021	KE30,35,50,TE3#,47,51	01/1977 - 07/1978	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06020	KE3#,TE3#,47 *H,L=200	08/1974 - 04/1975	1
95331-06012	KE3#,50,TE3#,47,51 *H,L=120	04/1975 - 01/1977	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06020	KE3#,TE3#,47 *H,L=200	08/1974 - 04/1975	1
95331-06012	KE3#,50,TE3#,47,51 *H,L=120	04/1975 - 01/1977	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95331-06012	KE30,35,TE47 *H,L=120	08/1974 - 09/1974	1
95331-06019	KE30,35,50,TE3#,47,51 *H,L=190	08/1975 - 01/1977	1
95331-06016	KE30,35,TE3#,47 *H,L=160	09/1974 - 08/1975	1
95331-06016	KE30,35,50,TE3#,47,51 *H,L=160	01/1977 - 06/1977	1
95332-06016	KE30,35,5#,TE3#,47,51 *H,L=160	06/1977 - 04/1979	1
77242 - TUBE, FUEL MAIN, NO.2
77025-12010	KE30,35	08/1974 - 01/1977	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95331-06016	KE30,35,TE47 *H,L=160	08/1974 - 10/1974	2
77259-12050	KE30,35,TE3#,47	10/1974 - 08/1976	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-12030	KE30,35,TE3#	06/1975 - 10/1975	1
77261-12050	KE30,35,TE3#,47	08/1974 - 06/1975	1
77261-12040	KE30,35..RHD AUSTRALIA SPEC	08/1974 - 11/1975	1
77261-12011	KE30,35..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-12030	KE30,35,TE3#	06/1975 - 10/1975	1
77261-12050	KE30,35,TE3#,47	08/1974 - 06/1975	1
77261-12040	KE30,35..RHD AUSTRALIA SPEC	08/1974 - 11/1975	1
77261-12011	KE30,35..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95331-04012	KE3#..RHD *H,L=120,AUSTRALIA SPEC	08/1974 - 01/1975	1
95331-04013	KE3#..RHD *H,L=130,AUSTRALIA SPEC	01/1975 - 11/1975	1
95331-04010	KE3#..RHD *H,L=100,AUSTRALIA SPEC	11/1975 - 03/1976	1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-04013	KE30,35,5#,TE3#,47,51 *H,L=130	06/1977 - 04/1979	1
95331-04012	KE30,35,50,TE3#,47,51 *H,L=120	08/1974 - 01/1977	1
95331-04013	KE30,35,50,TE3#,47,51 *H,L=130	01/1977 - 06/1977	1
77254C - HOSE, FUEL, NO.3 (FOR EMISSION TUBE, NO.1)
95331-04030	KE3#..RHD *H,L=300,AUSTRALIA SPEC	08/1974 - 11/1975	1
77255 - TUBE, FUEL EMISSION, NO.2
77262-12010	KE30,35,TE3#,47..EUR,GEN,SA	08/1976 - 01/1977	1
77262-12010	KE30,35,TE3#,47	08/1974 - 08/1976	1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-04005	KE30,35 *H,L=50	08/1974 - 04/1979	1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-04005	KE30,35 *H,L=50	08/1974 - 04/1979	1
77256 - TUBE, FUEL EMISSION, NO.3
77028-12010	KE30,35,TE3#,47	08/1974 - 08/1976	1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95331-04024	KE30,35,TE3#,47..EUR,GEN,SA *H,L=240	08/1976 - 06/1977	1
95332-04024	KE30,35,TE3#,47..EUR,GEN,SA *H,L=240	06/1977 - 04/1979	1
95331-04020	KE30,35,TE3#,47 *H,L=200	08/1974 - 08/1976	1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95331-04005	KE30,35,TE3#,47..EUR,GEN,SA *H,L=50	08/1974 - 04/1979	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10025	KE30,35,TE3#,47	08/1974 - 11/1975	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10025	KE30,35,TE3#,47	08/1974 - 11/1975	1
Common parts
90179-04092
90461-08095
90462-16230
90464-00058
90480-01423
90480-11516
90480-21456
91611-40610
91651-40614
93312-14012
96132-30400
96132-30600

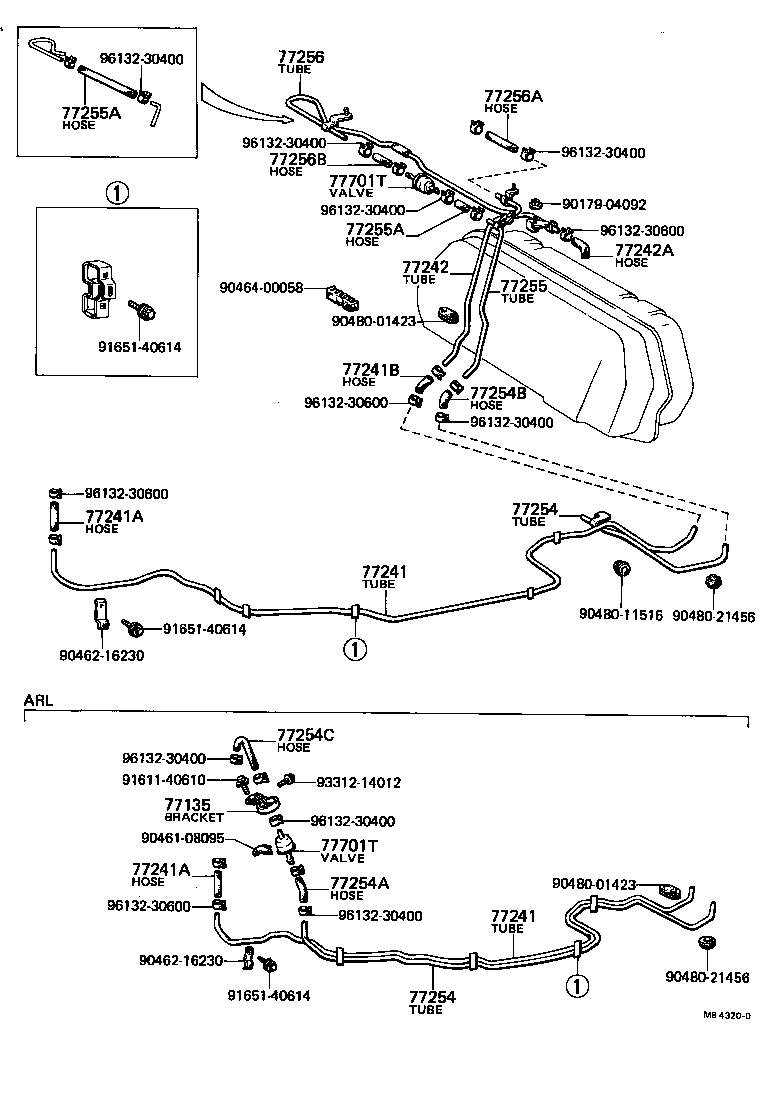

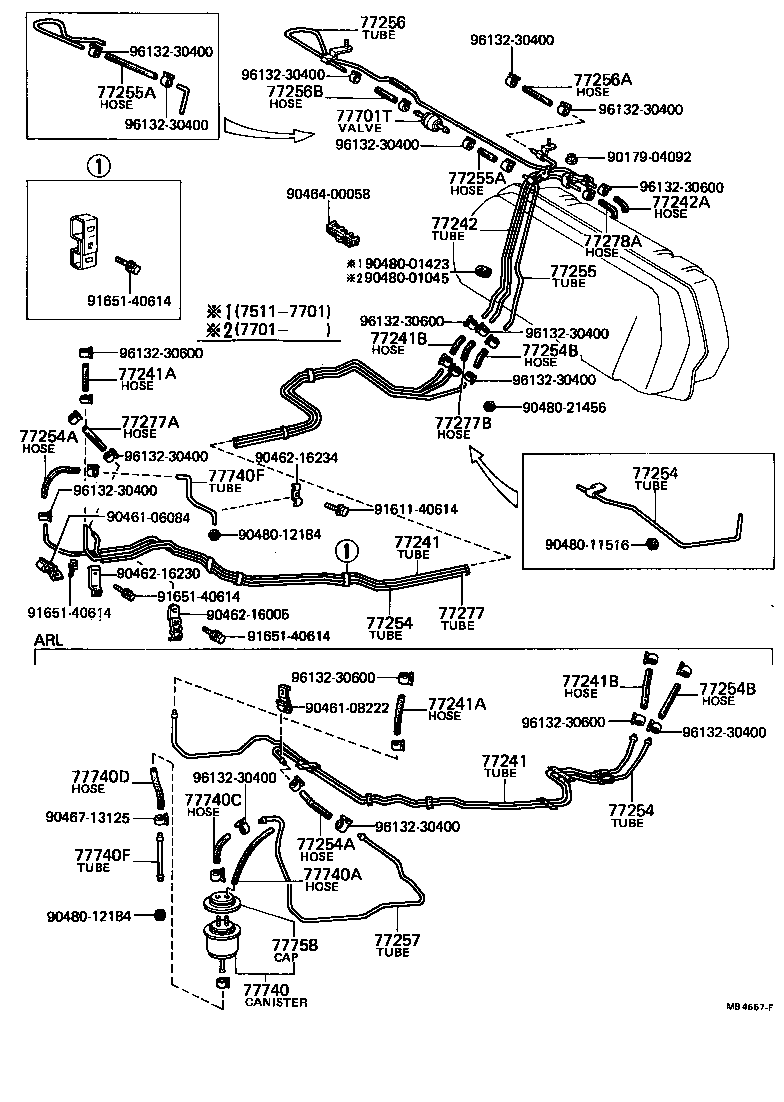

(7511- )CP,HT,SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
77241 - TUBE, FUEL MAIN, NO.1
77251-12020	KE30,35,50,TE3#,47,51	08/1974 - 01/1977	1
77251-12021	KE30,35,50,TE3#,47,51	01/1977 - 07/1978	1
77241 - TUBE, FUEL MAIN, NO.1
77251-12020	KE30,35,50,TE3#,47,51	08/1974 - 01/1977	1
77251-12021	KE30,35,50,TE3#,47,51	01/1977 - 07/1978	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06020	KE3#,TE3#,47 *H,L=200	08/1974 - 04/1975	1
95331-06012	KE3#,50,TE3#,47,51 *H,L=120	04/1975 - 01/1977	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06020	KE3#,TE3#,47 *H,L=200	08/1974 - 04/1975	1
95331-06012	KE3#,50,TE3#,47,51 *H,L=120	04/1975 - 01/1977	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95331-06012	KE30,35,TE47 *H,L=120	08/1974 - 09/1974	1
95331-06019	KE30,35,50,TE3#,47,51 *H,L=190	08/1975 - 01/1977	1
95331-06016	KE30,35,TE3#,47 *H,L=160	09/1974 - 08/1975	1
95331-06016	KE30,35,50,TE3#,47,51 *H,L=160	01/1977 - 06/1977	1
95332-06016	KE30,35,5#,TE3#,47,51 *H,L=160	06/1977 - 04/1979	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95331-06012	KE30,35,TE47 *H,L=120	08/1974 - 09/1974	1
95331-06019	KE30,35,50,TE3#,47,51 *H,L=190	08/1975 - 01/1977	1
95331-06016	KE30,35,TE3#,47 *H,L=160	09/1974 - 08/1975	1
95331-06016	KE30,35,50,TE3#,47,51 *H,L=160	01/1977 - 06/1977	1
95332-06016	KE30,35,5#,TE3#,47,51 *H,L=160	06/1977 - 04/1979	1
77242 - TUBE, FUEL MAIN, NO.2
77025-12010	KE30,35	08/1974 - 01/1977	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95331-06016	KE30,35,TE47 *H,L=160	08/1974 - 10/1974	2
77259-12050	KE30,35,TE3#,47	10/1974 - 08/1976	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-12030	KE30,35,TE3#	06/1975 - 10/1975	1
77261-12050	KE30,35,TE3#,47	08/1974 - 06/1975	1
77261-12040	KE30,35..RHD AUSTRALIA SPEC	08/1974 - 11/1975	1
77261-12011	KE30,35..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-12030	KE30,35,TE3#	06/1975 - 10/1975	1
77261-12050	KE30,35,TE3#,47	08/1974 - 06/1975	1
77261-12040	KE30,35..RHD AUSTRALIA SPEC	08/1974 - 11/1975	1
77261-12011	KE30,35..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77254 - TUBE, FUEL EMISSION, NO.1
77261-12030	KE30,35,TE3#	06/1975 - 10/1975	1
77261-12050	KE30,35,TE3#,47	08/1974 - 06/1975	1
77261-12040	KE30,35..RHD AUSTRALIA SPEC	08/1974 - 11/1975	1
77261-12011	KE30,35..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95331-04012	KE3#..RHD *H,L=120,AUSTRALIA SPEC	08/1974 - 01/1975	1
95331-04013	KE3#..RHD *H,L=130,AUSTRALIA SPEC	01/1975 - 11/1975	1
95331-04010	KE3#..RHD *H,L=100,AUSTRALIA SPEC	11/1975 - 03/1976	1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95331-04012	KE3#..RHD *H,L=120,AUSTRALIA SPEC	08/1974 - 01/1975	1
95331-04013	KE3#..RHD *H,L=130,AUSTRALIA SPEC	01/1975 - 11/1975	1
95331-04010	KE3#..RHD *H,L=100,AUSTRALIA SPEC	11/1975 - 03/1976	1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-04013	KE30,35,5#,TE3#,47,51 *H,L=130	06/1977 - 04/1979	1
95331-04012	KE30,35,50,TE3#,47,51 *H,L=120	08/1974 - 01/1977	1
95331-04013	KE30,35,50,TE3#,47,51 *H,L=130	01/1977 - 06/1977	1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-04013	KE30,35,5#,TE3#,47,51 *H,L=130	06/1977 - 04/1979	1
95331-04012	KE30,35,50,TE3#,47,51 *H,L=120	08/1974 - 01/1977	1
95331-04013	KE30,35,50,TE3#,47,51 *H,L=130	01/1977 - 06/1977	1
77255 - TUBE, FUEL EMISSION, NO.2
77262-12010	KE30,35,TE3#,47..EUR,GEN,SA	08/1976 - 01/1977	1
77262-12010	KE30,35,TE3#,47	08/1974 - 08/1976	1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-04005	KE30,35 *H,L=50	08/1974 - 04/1979	1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-04005	KE30,35 *H,L=50	08/1974 - 04/1979	1
77256 - TUBE, FUEL EMISSION, NO.3
77028-12010	KE30,35,TE3#,47	08/1974 - 08/1976	1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95331-04024	KE30,35,TE3#,47..EUR,GEN,SA *H,L=240	08/1976 - 06/1977	1
95332-04024	KE30,35,TE3#,47..EUR,GEN,SA *H,L=240	06/1977 - 04/1979	1
95331-04020	KE30,35,TE3#,47 *H,L=200	08/1974 - 08/1976	1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95331-04005	KE30,35,TE3#,47..EUR,GEN,SA *H,L=50	08/1974 - 04/1979	1
77257 - TUBE, FUEL EMISSION, NO.4
77268-12030	KE3#..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10025	KE30,35,TE3#,47	08/1974 - 11/1975	1
77740 - CANISTER ASSY, CHARCOAL
77740-12100	KE3#..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960	KE3#..RHD H,L=450,MARK=#,AUSTRALIA SPEC	11/1975 - 04/1976	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95331-04012	KE3#..RHD *H,L=120,AUSTRALIA SPEC	11/1975 - 03/1976	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
95331-08010	KE3#..RHD *H,L=100,AUSTRALIA SPEC	11/1975 - 04/1976	1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-12020	KE3#..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-12020	KE3#..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
77758 - CAP, CHARCOAL CANISTER
77758-30020	KE3#..RHD AUSTRALIA SPEC	11/1975 - 04/1976	1
Common parts
90179-04092
90461-06084
90461-08222
90462-16005
90462-16230
90462-16234
90464-00058
90467-13125
90480-01045
90480-01423
90480-11516
90480-12184
90480-21456
91611-40614
91651-40614
96132-30400
96132-30600

KE35R-CD (1974)

(7408- )CP,HT,SED

(7408-7511)KE30,35,TE3#,47

(7511- )CP,HT,SED

Part Price Details
