KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7604)KE35,TE37

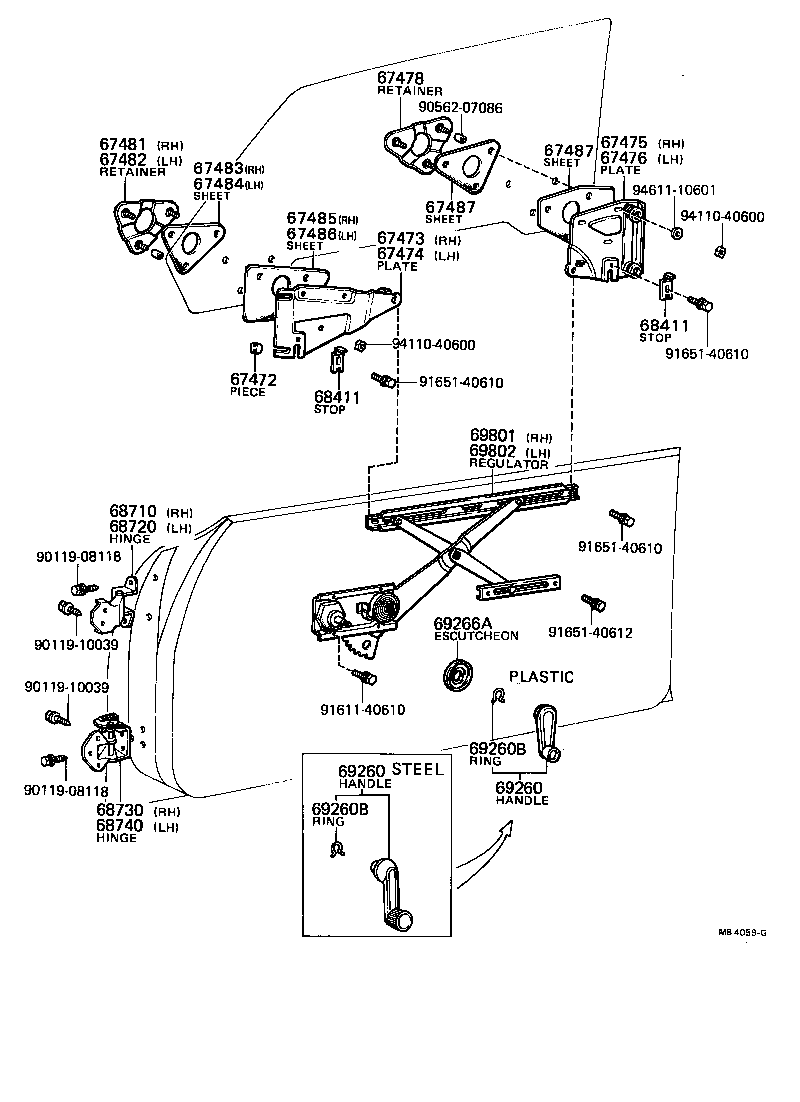

Click highlighted areas on diagram

diagram 67472 67473 67474 67475 67476 67478 67481 67482 67483 67484 67485 67486 67487 67487 68411 68411 68710 68720 68730 68740 69260 69260 69260B 69260B 69266A 69801 69802 9011908118 9011908118 9011910039 9011910039 9056207086 9161140610 9165140610 9165140610 9165140610 9165140612 9411040600 9411040600 9461110601
Part # Description Qty Price
67472 - PIECE, FRONT DOOR GLASS GUIDE
67479-14030

KE35,TE47

 4
69986-30030

KE35,TE37

 4
67473 - PLATE, FRONT DOOR GLASS HOLDER, FRONT RH
69951-12060

KE35

 1
67474 - PLATE, FRONT DOOR GLASS HOLDER, FRONT LH
69952-12020

KE35

 1
67475 - PLATE, FRONT DOOR GLASS HOLDER, REAR RH
69903-12030

KE35,55,TE37..HT

 1
67476 - PLATE, FRONT DOOR GLASS HOLDER, REAR LH
69904-12020

KE35,55,TE37..HT

 1
67478 - RETAINER, FRONT DOOR GLASS, REAR
69963-12010

KE35,55,TE37..HT

RH

 1
69964-12010

KE35,55,TE37..HT

LH

 1
67481 - RETAINER, FRONT DOOR GLASS, FRONT RH
69961-12030

KE35,55,TE37..HT

 1
67482 - RETAINER, FRONT DOOR GLASS, FRONT LH
69961-12030

KE35,55,TE37..HT

 1
67483 - SHEET, FRONT DOOR GLASS FRONT OUTSIDE, RH
67481-12010

KE35,TE37

 1
67484 - SHEET, FRONT DOOR GLASS FRONT OUTSIDE, LH
67481-12010

KE35,TE37

 1
67485 - SHEET, FRONT DOOR GLASS FRONT INSIDE, RH
67483-12010

KE35,TE37

 1
67486 - SHEET,FRONT DOOR GLASS FRONT INSIDE, LH
67483-12010

KE35,TE37

 1
67487 - SHEET, FRONT DOOR GLASS, REAR
67484-12010

KE35,TE37

OUTER

 2
67482-12020

KE35,TE37

INNER

 1
67487 - SHEET, FRONT DOOR GLASS, REAR
67484-12010

KE35,TE37

OUTER

 2
67482-12020

KE35,TE37

INNER

 1
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67215-12020

KE35,55,TE37..HT

 4
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67215-12020

KE35,55,TE37..HT

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12050

KE3#,55,TE3#..DV,HT,SED,WG

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12050

KE3#,55,TE3#..DV,HT,SED,WG

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20050

KE3#,TE3#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20050

KE3#,TE3#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-14010

KE3#,TE47

 2
69260-1201006

KE3#,50,TE3#,47,51

BROWN,BROWN,TRIM0#,4#

 2
69260-12010

KE3#,TE3#,47

 2
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-14010

KE3#,TE47

 2
69260-1201006

KE3#,50,TE3#,47,51

BROWN,BROWN,TRIM0#,4#

 2
69260-12010

KE3#,TE3#,47

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

KE3#,TE47

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

KE3#,TE47

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-2201005

KE3#,5#,TE3#,47,51

BEIGE,BEIGE,TRIM4#

 2
69285-22010

KE3#,50,TE3#,47,51

WHITE

 2
69285-2201001

KE3#,5#,TE3#,47,51

BLACK,BLACK,TRIM0#,2#

 2
69266-22010

KE3#,TE3#,47

 2
69285-2201004

KE3#,5#,TE47,51

BLUE,BLUE,TRIM8#

 2
69285-2201006

KE3#,50,TE3#,47,51

BROWN,BROWN,TRIM0#,4#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12121

KE35,TE37

 1
69810-12120

KE35

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12120

KE35

 1
69820-12121

KE35,TE37

 1
Common parts
90119-08118
90119-10039
90562-07086
91611-40610
91651-40610
91651-40612
94110-40600
94611-10601

(7604- )HT

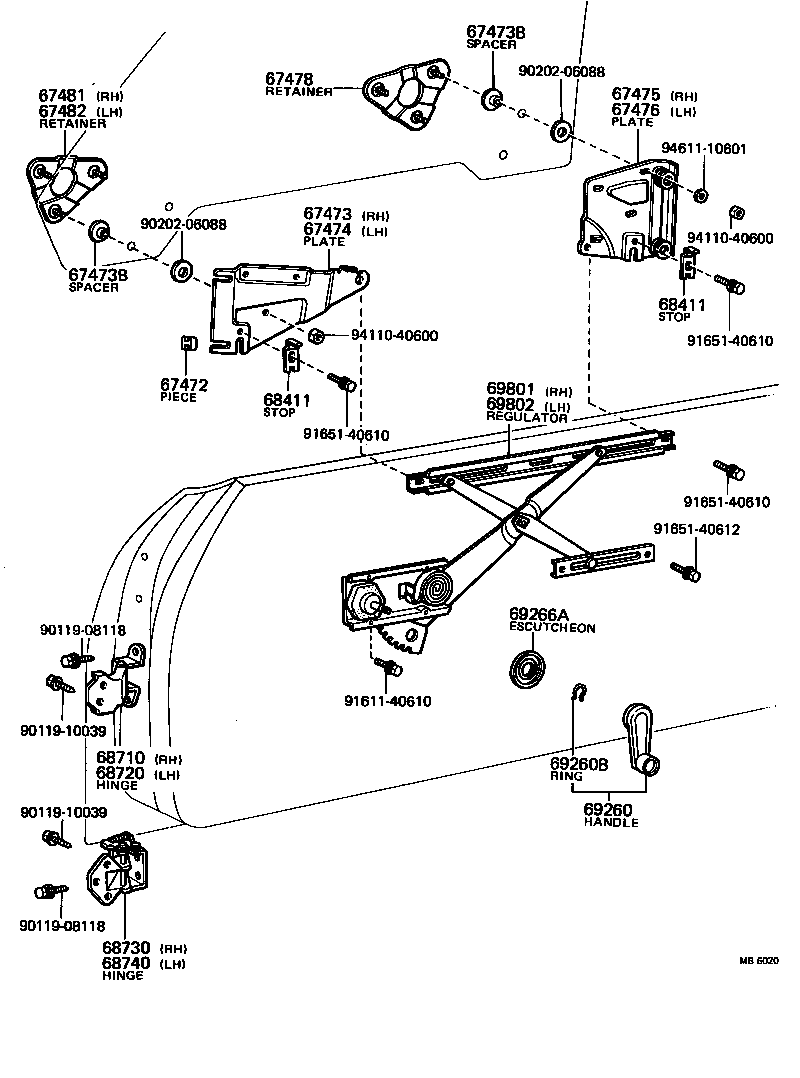

Click highlighted areas on diagram

diagram 67472 67473 67473B 67473B 67474 67475 67476 67478 67481 67482 68411 68411 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 9011908118 9011908118 9011910039 9011910039 9020206088 9020206088 9161140610 9165140610 9165140610 9165140610 9165140612 9411040600 9411040600 9461110601
Part # Description Qty Price
67472 - PIECE, FRONT DOOR GLASS GUIDE
67479-14030

KE35,TE47

 4
69986-30030

KE35,TE37

 4
67473 - PLATE, FRONT DOOR GLASS HOLDER, FRONT RH
69951-12060

KE35

 1
67474 - PLATE, FRONT DOOR GLASS HOLDER, FRONT LH
69952-12020

KE35

 1
67475 - PLATE, FRONT DOOR GLASS HOLDER, REAR RH
69903-12030

KE35,55,TE37..HT

 1
67476 - PLATE, FRONT DOOR GLASS HOLDER, REAR LH
69904-12020

KE35,55,TE37..HT

 1
67478 - RETAINER, FRONT DOOR GLASS, REAR
69963-12010

KE35,55,TE37..HT

RH

 1
69964-12010

KE35,55,TE37..HT

LH

 1
67481 - RETAINER, FRONT DOOR GLASS, FRONT RH
69961-12030

KE35,55,TE37..HT

 1
67482 - RETAINER, FRONT DOOR GLASS, FRONT LH
69961-12030

KE35,55,TE37..HT

 1
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67215-12020

KE35,55,TE37..HT

 4
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67215-12020

KE35,55,TE37..HT

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12050

KE3#,55,TE3#..DV,HT,SED,WG

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12050

KE3#,55,TE3#..DV,HT,SED,WG

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20050

KE3#,TE3#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20050

KE3#,TE3#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-14010

KE3#,TE47

 2
69260-1201006

KE3#,50,TE3#,47,51

BROWN,BROWN,TRIM0#,4#

 2
69260-12010

KE3#,TE3#,47

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

KE3#,TE47

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-2201005

KE3#,5#,TE3#,47,51

BEIGE,BEIGE,TRIM4#

 2
69285-22010

KE3#,50,TE3#,47,51

WHITE

 2
69285-2201001

KE3#,5#,TE3#,47,51

BLACK,BLACK,TRIM0#,2#

 2
69266-22010

KE3#,TE3#,47

 2
69285-2201004

KE3#,5#,TE47,51

BLUE,BLUE,TRIM8#

 2
69285-2201006

KE3#,50,TE3#,47,51

BROWN,BROWN,TRIM0#,4#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-12121

KE35,TE37

 1
69810-12120

KE35

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-12120

KE35

 1
69820-12121

KE35,TE37

 1
Common parts
90119-08118
90119-10039
90202-06088
91611-40610
91651-40610
91651-40612
94110-40600
94611-10601
