KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

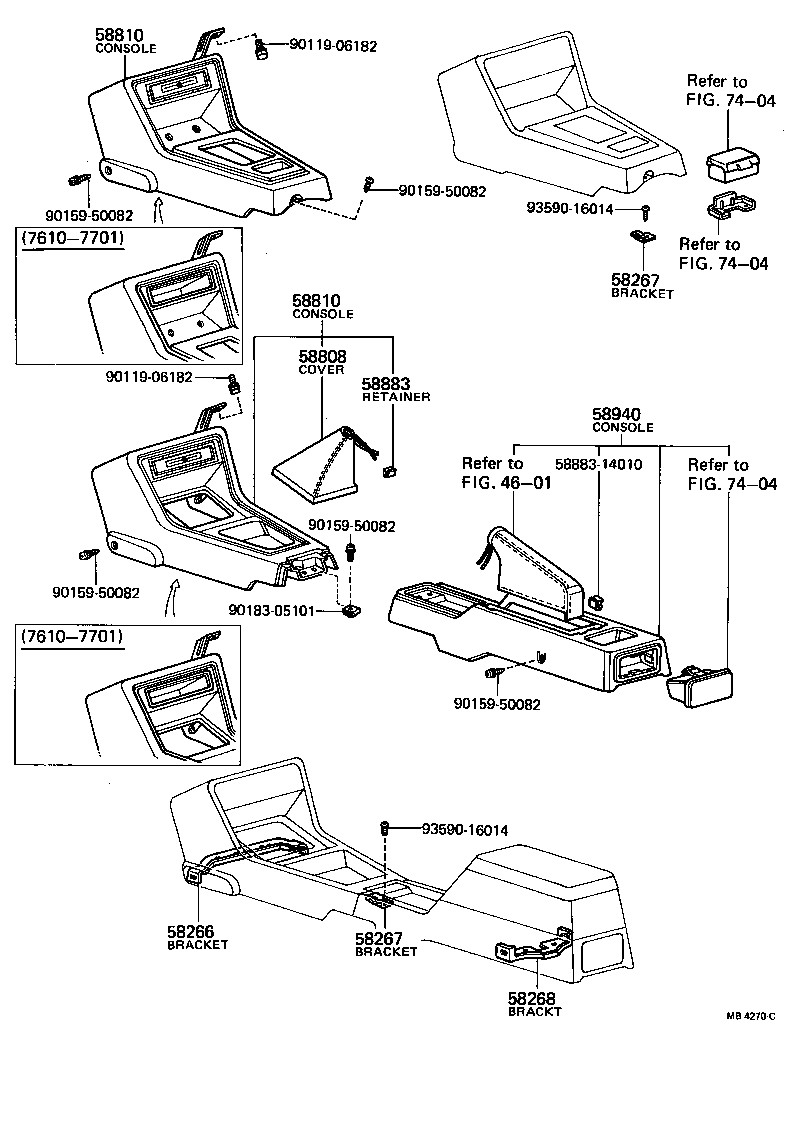

(7408-7701)KE30,35,TE3#

Click highlighted areas on diagram

diagram 4601 58266 58267 58267 58268 58808 58810 58810 58883 5888314010 58940 7404 7404 7404 9011906182 9011906182 9015950082 9015950082 9015950082 9015950082 9015950082 9018305101 9359016014 9359016014
Part # Description Qty Price
58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER
58852-12040

KE30,35,TE31..ATM

 1
58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER
58852-12040

KE30,35,TE31..ATM

 1
58810 - CONSOLE ASSY
58810-1214006

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
58810-1214001

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214101

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214106

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
58810 - CONSOLE ASSY
58810-1214006

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
58810-1214001

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214101

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214106

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
Common parts
58883-14010
90119-06182
90159-50082
90183-05101
93590-16014
Linked diagrams
4601
7404

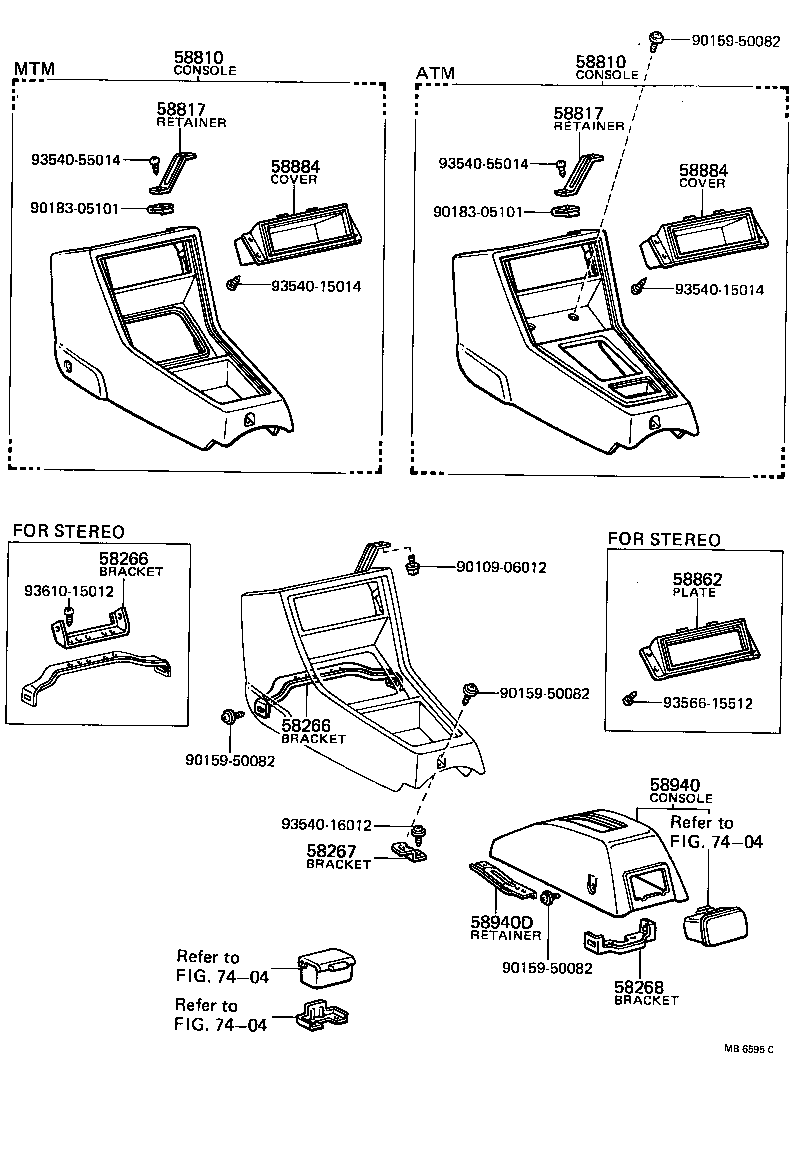

(7701- )DV,HT,SED,WG..DLX,STD

Click highlighted areas on diagram

diagram 58266 58266 58267 58268 58810 58810 58817 58817 58862 58884 58884 58940 58940D 7404 7404 7404 9010906012 9015950082 9015950082 9015950082 9015950082 9018305101 9018305101 9354015014 9354015014 9354016012 9354055014 9354055014 9356615512 9361015012
Part # Description Qty Price
58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER
58852-12040

KE30,35,TE31..ATM

 1
58810 - CONSOLE ASSY
58810-1214006

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
58810-1214001

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214101

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214106

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
58810 - CONSOLE ASSY
58810-1214006

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
58810-1214001

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214101

KE30,35,TE31..ATM

SEMI CONSOLE,BLACK,BLACK,TRIM0#,2#

 1
58810-1214106

KE30,35,TE31..ATM

SEMI CONSOLE,BROWN,BROWN,TRIM0#,4#

 1
58862 - PLATE, CONSOLE FINISH
55423-12030

KE30,35,TE31..ATM

 1
Common parts
90109-06012
90159-50082
90183-05101
93540-15014
93540-16012
93540-55014
93566-15512
93610-15012
Linked diagrams
7404
