KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )

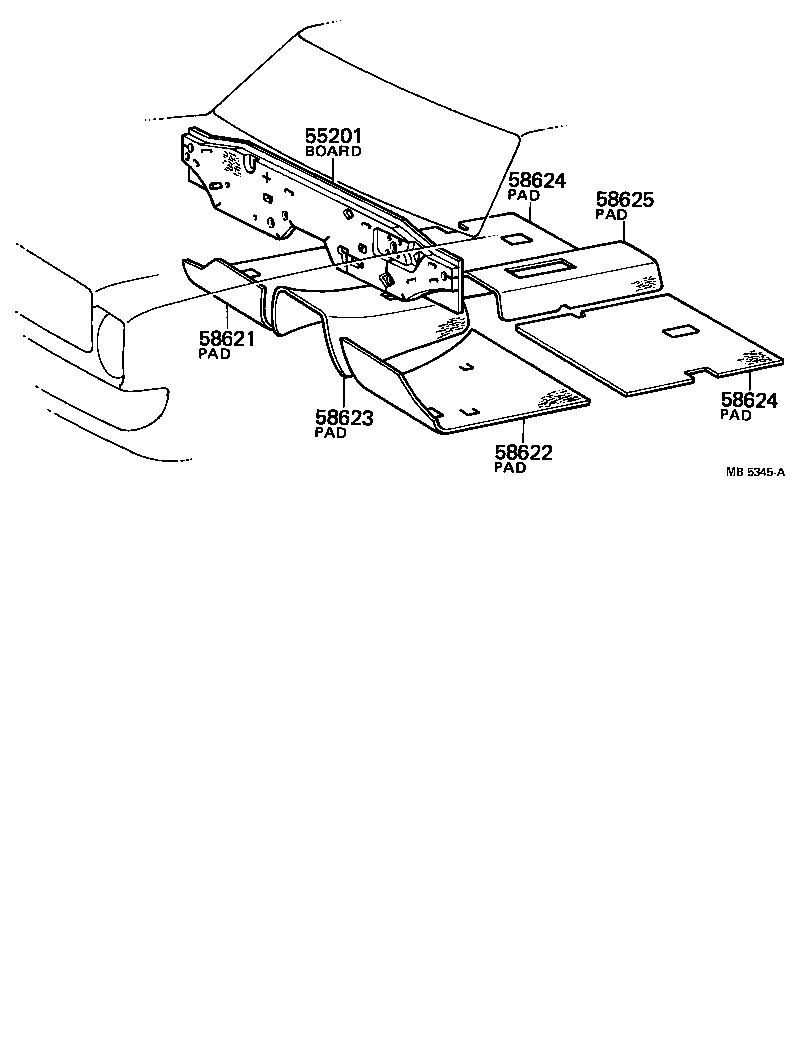

Click highlighted areas on diagram

diagram 55201 58621 58622 58623 58624 58624 58625
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55210-12020

KE3#,50..RHD

 1
55210-12031

KE3#,50,TE3#,47,51..RHD

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-12040

KE3#,50,TE3#,47,51

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-12040

KE3#,50,TE3#,47,51

 2
58625 - PAD, FLOOR SILENCER, REAR CENTER
58626-12010

KE3#,50,TE3#,47,51

 1
