Toyota Corolla/trueno KE35 COWL VENTILATOR

KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979

Engine 3KH

Transmission 2FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

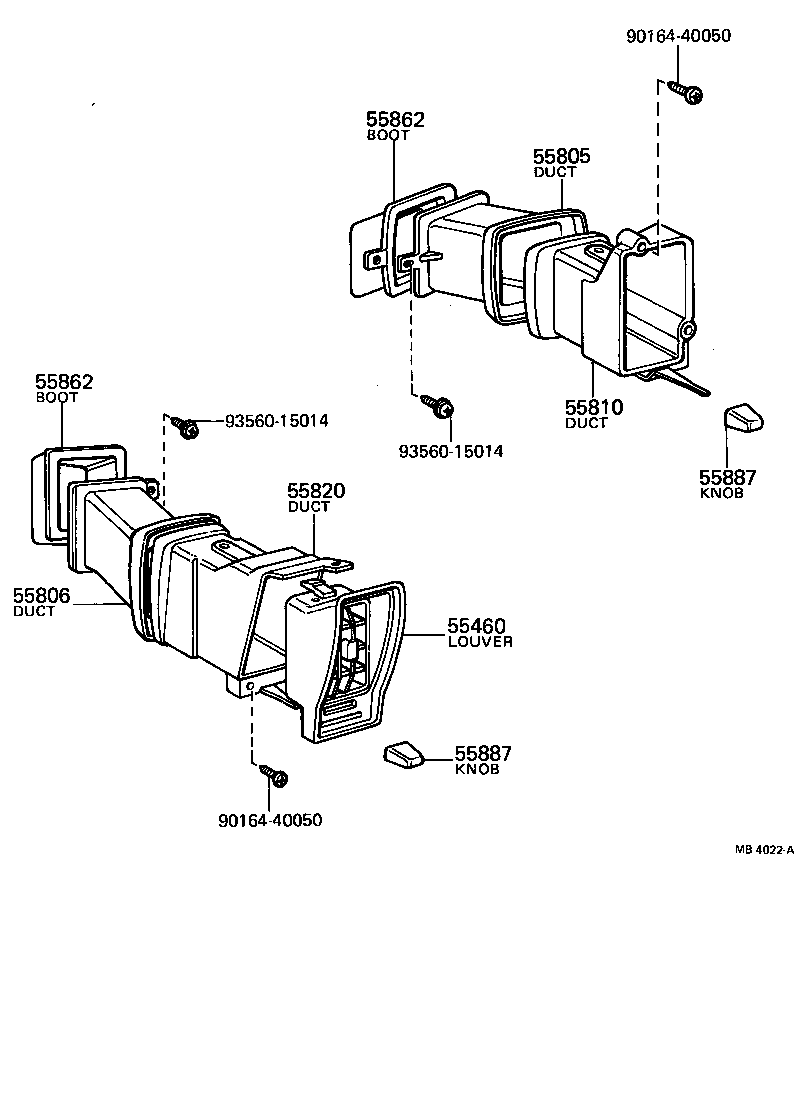

(7408-7701)RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
55460 - LOUVER ASSY, SIDE VENTILATOR, LH
55660-1201001	KE3#,50,TE3#,47,51..RHD BRACK;BLACK,BLACK	08/1974 - 01/1977	1
55660-1201006	KE3#,TE3#,47..RHD BROWN,BROWN	08/1974 - 12/1975	1
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55841-12010	KE3#,TE3#..RHD	08/1974 - 01/1977	1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55842-12010	KE3#,TE3#..RHD	08/1974 - 01/1977	1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55830-12010	KE3#,TE3#..RHD	08/1974 - 05/1976	1
55830-12011	KE3#,TE3#..RHD	05/1976 - 01/1977	1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55840-12010	KE3#,50,TE3#,47,51..RHD	08/1974 - 05/1976	1
55840-12011	KE3#,50,TE3#,47,51..RHD	05/1976 - 01/1977	1
55862 - BOOT, SIDE VENTILATOR
55844-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD LH	08/1974 - 07/1981	1
55843-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD RH	08/1974 - 07/1981	1
55862 - BOOT, SIDE VENTILATOR
55844-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD LH	08/1974 - 07/1981	1
55843-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD RH	08/1974 - 07/1981	1
55887 - KNOB, SIDE VENTILATOR BUTTERFLY CONTROL
55897-12901	KE3#,50,TE3#,47,51 RH	08/1974 - 01/1977	1
55898-12901	KE3#,50,TE3#,47,51 LH	08/1974 - 01/1977	1
55887 - KNOB, SIDE VENTILATOR BUTTERFLY CONTROL
55897-12901	KE3#,50,TE3#,47,51 RH	08/1974 - 01/1977	1
55898-12901	KE3#,50,TE3#,47,51 LH	08/1974 - 01/1977	1
Common parts
90164-40050
93560-15014

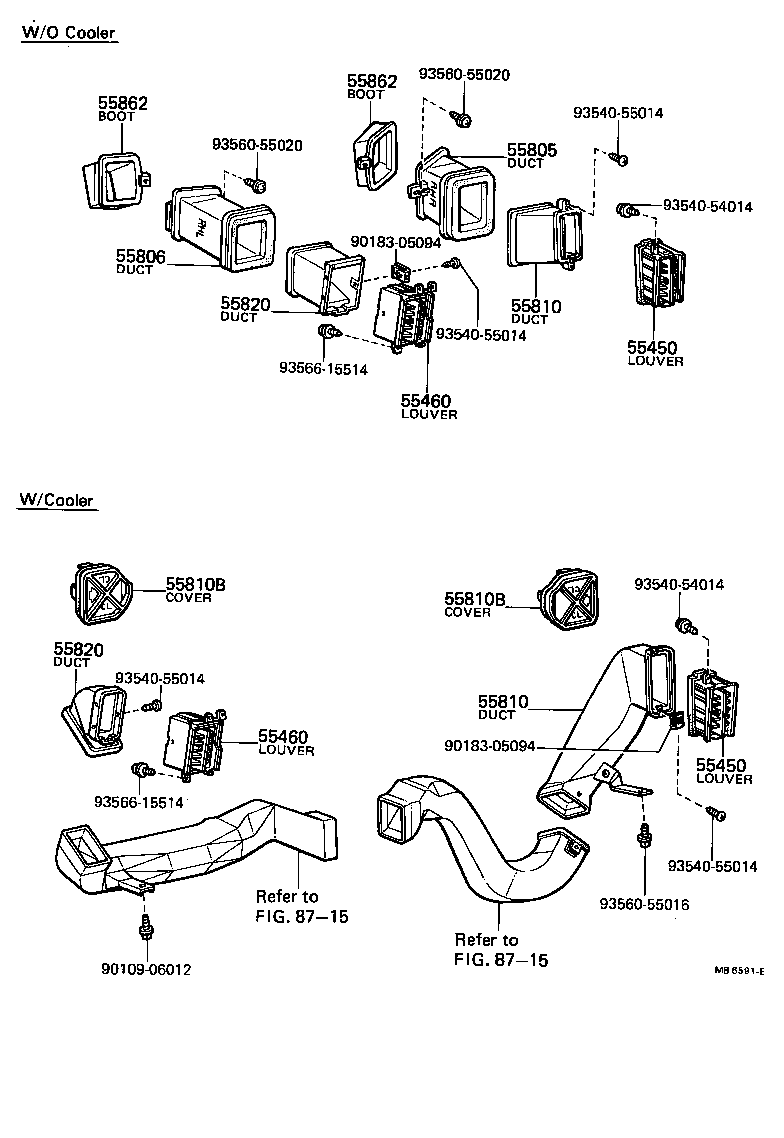

(7701- )DV,HT,SED,WG..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
55460 - LOUVER ASSY, SIDE VENTILATOR, LH
55660-1201001	KE3#,50,TE3#,47,51..RHD BRACK;BLACK,BLACK	08/1974 - 01/1977	1
55660-1201006	KE3#,TE3#,47..RHD BROWN,BROWN	08/1974 - 12/1975	1
55460 - LOUVER ASSY, SIDE VENTILATOR, LH
55660-1201001	KE3#,50,TE3#,47,51..RHD BRACK;BLACK,BLACK	08/1974 - 01/1977	1
55660-1201006	KE3#,TE3#,47..RHD BROWN,BROWN	08/1974 - 12/1975	1
55805 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH
55841-12010	KE3#,TE3#..RHD	08/1974 - 01/1977	1
55806 - DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH
55842-12010	KE3#,TE3#..RHD	08/1974 - 01/1977	1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55830-12010	KE3#,TE3#..RHD	08/1974 - 05/1976	1
55830-12011	KE3#,TE3#..RHD	05/1976 - 01/1977	1
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55830-12010	KE3#,TE3#..RHD	08/1974 - 05/1976	1
55830-12011	KE3#,TE3#..RHD	05/1976 - 01/1977	1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55840-12010	KE3#,50,TE3#,47,51..RHD	08/1974 - 05/1976	1
55840-12011	KE3#,50,TE3#,47,51..RHD	05/1976 - 01/1977	1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55840-12010	KE3#,50,TE3#,47,51..RHD	08/1974 - 05/1976	1
55840-12011	KE3#,50,TE3#,47,51..RHD	05/1976 - 01/1977	1
55862 - BOOT, SIDE VENTILATOR
55844-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD LH	08/1974 - 07/1981	1
55843-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD RH	08/1974 - 07/1981	1
55862 - BOOT, SIDE VENTILATOR
55844-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD LH	08/1974 - 07/1981	1
55843-12010	KE3#,55,TE3#..(DV,HT,SED,WG)..RHD RH	08/1974 - 07/1981	1
Common parts
90109-06012
90183-05094
93540-54014
93540-55014
93560-55016
93560-55020
93566-15514
