KE35R-CD (1974)
Toyota Corolla/Trueno
Production
Aug 1974
-
Aug 1979
Engine
3KH
Transmission
2FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7805-7908)KE30..GEN ; (7807-7908)LHD..K40..SR ;(7807-7908)KE35..RHD..K40..DLX ; (

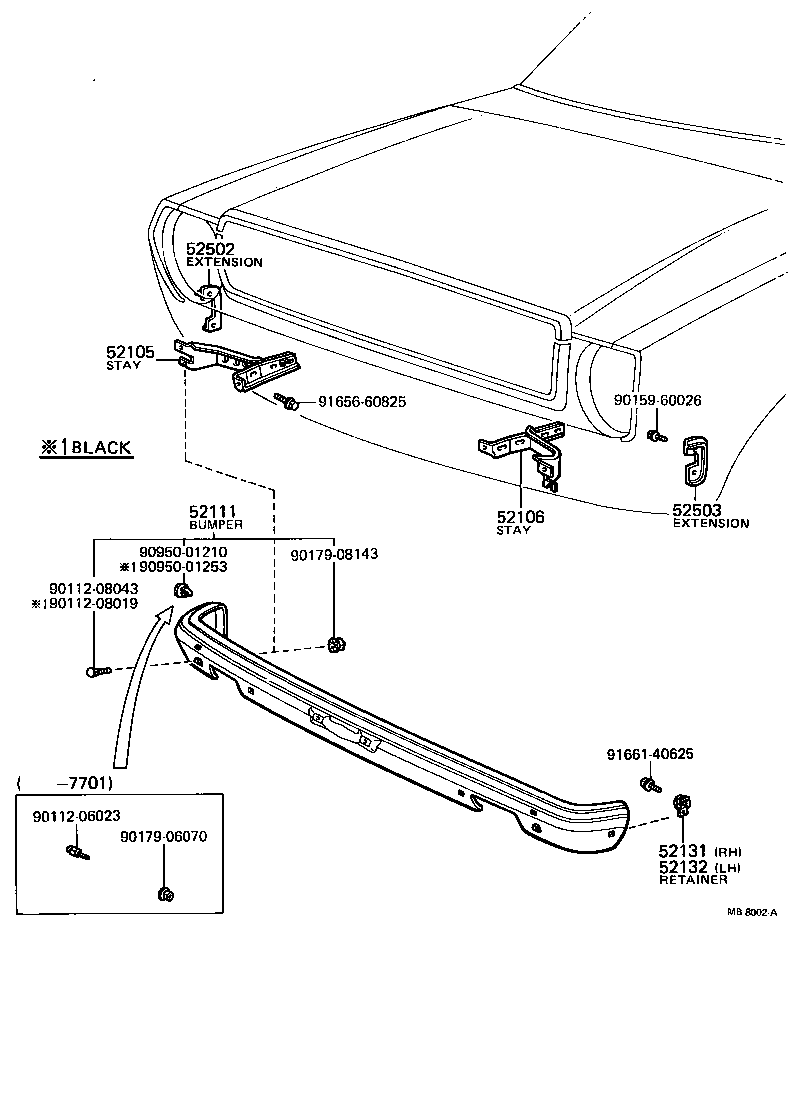

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-19205 |
KE3#,TE3# |
1 | ||
| 52111-19205 |
KE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN);KE30..LHD..(A20,K50);KE30,36..LHD..K40..EUG;KE30,36..LHD..K40..GEN;KE30,36,38,55,TE3#..RHD |
1 | ||
| 52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52541-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| 52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52542-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| Common parts | ||||
| 90179-08143 | ||||
| 90189-06017 | ||||
| 90950-01027 | ||||
| 90950-08009 | ||||
| 91651-40820 | ||||
| 91651-41025 | ||||
| 91656-60825 | ||||
(7408-7904)DV,HT,SED,WG ; (7904- )KE3#,55..DV,HT,SED,WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-19205 |
KE3#,TE3# |
1 | ||
| 52111-19205 |
KE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN);KE30..LHD..(A20,K50);KE30,36..LHD..K40..EUG;KE30,36..LHD..K40..GEN;KE30,36,38,55,TE3#..RHD |
1 | ||
| 52131 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52145-12020 |
KE3# |
1 | ||
| 52132 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52145-12020 |
KE3# |
1 | ||
| 52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52541-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| 52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52542-12010 |
KE3#,55,TE3#..DV,HT,SED,WG |
1 | ||
| Common parts | ||||
| 90112-06023 | ||||
| 90112-08019 | ||||
| 90112-08043 | ||||
| 90159-60026 | ||||
| 90179-06070 | ||||
| 90179-08143 | ||||
| 90950-01210 | ||||
| 90950-01253 | ||||
| 91656-60825 | ||||
| 91661-40625 | ||||
