KE35R-CD (1974)
Toyota Corolla/Trueno

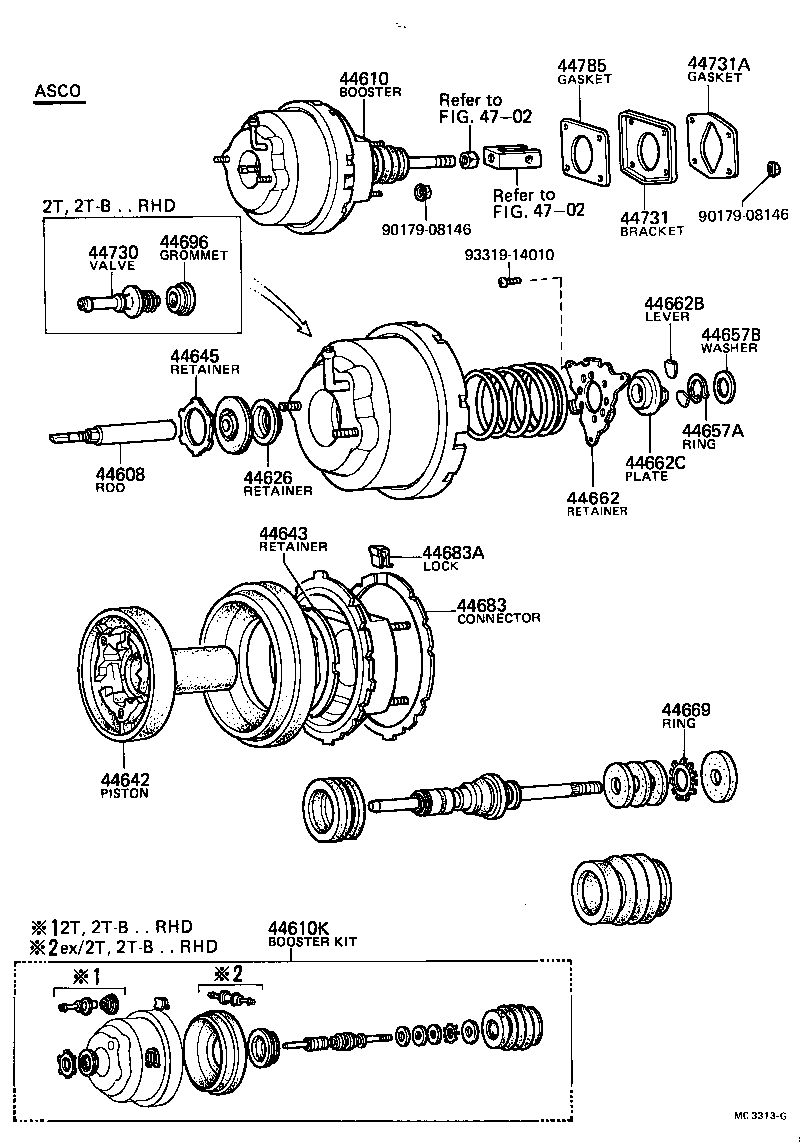

(7408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12070 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44606-12070 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44608-10011 |
KE3#,50..ARL,EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44608-12080 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44608-10011 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44608-10011 |
KE36;KE30,35,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44606-12070 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12070 |
KE30..RHD..(EUR,GEN);KE35,36,50..RHD..(EUR,GEN,SA) AISIN,5INCH BOOSTER |
1 | ||
| 44610-12070 |
KE3#,50..RHD..(EUR,GEN) AISIN,5INCH BOOSTER |
1 | ||
| 44610-12070 |
KE3#,50..RHD..(ARL,GEN) AISIN,5INCH BOOSTER |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-12040 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 04443-12050 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 04443-12050 |
KE3#,50..ARL,EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 04443-12040 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 04443-12040 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 04443-12050 |
KE36;KE30,35,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-10010 |
KE3#,50..ARL,EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44642-10010 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44642-12070 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44642-10010 |
KE36;KE30,35,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44642-12070 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44642-12070 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-12070 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44643-12070 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44643-12070 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44645-22020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN JKK |
1 | ||
| 44645-22020 |
KE3#,50..EUR,GEN JKK |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-20100 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-12070 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44653-12070 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44653-12070 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-12070 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44682-12070 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44682-12070 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 4702 | ||||

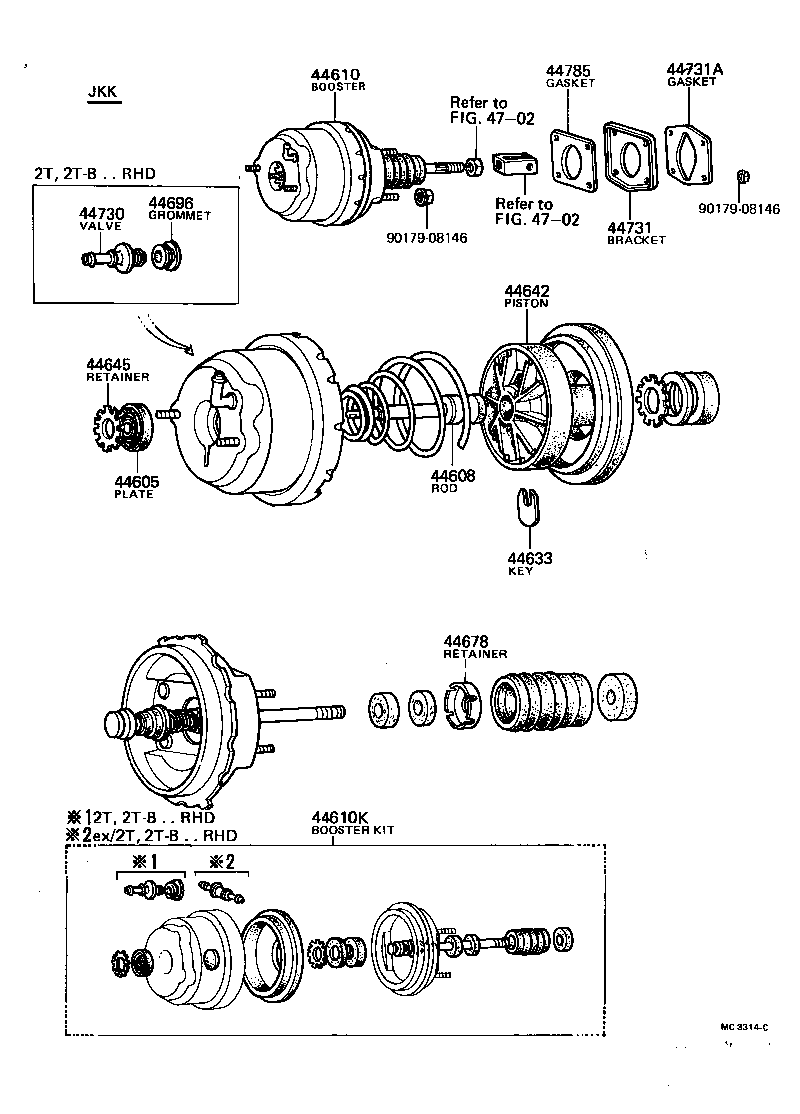

(7408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN JKK |
1 | ||
| 44605-22021 |
KE3#,50..EUR,GEN JKK |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12070 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44606-12070 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44608-10011 |
KE3#,50..ARL,EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44608-12080 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44608-10011 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44608-10011 |
KE36;KE30,35,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44606-12070 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12070 |
KE30..RHD..(EUR,GEN);KE35,36,50..RHD..(EUR,GEN,SA) AISIN,5INCH BOOSTER |
1 | ||
| 44610-12070 |
KE3#,50..RHD..(EUR,GEN) AISIN,5INCH BOOSTER |
1 | ||
| 44610-12070 |
KE3#,50..RHD..(ARL,GEN) AISIN,5INCH BOOSTER |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-12040 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 04443-12050 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 04443-12050 |
KE3#,50..ARL,EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 04443-12040 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 04443-12040 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 04443-12050 |
KE36;KE30,35,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
KE3#,50..EUR,GEN JKK |
1 | ||
| 44633-22020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN JKK |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-10010 |
KE3#,50..ARL,EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44642-10010 |
KE3#,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44642-12070 |
KE3#,50..ARL,EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44642-10010 |
KE36;KE30,35,50..EUR,GEN JKK,5INCH BOOSTER |
1 | ||
| 44642-12070 |
KE3#,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44642-12070 |
KE36;KE30,35,50..EUR,GEN AISIN,5INCH BOOSTER |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 AISIN |
1 | ||
| 44645-22020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN JKK |
1 | ||
| 44645-22020 |
KE3#,50..EUR,GEN JKK |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
KE3#,50..EUR,GEN JKK |
1 | ||
| 44678-22020 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN JKK |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(7408-7807)KE30,35,50 ; (7408-7807)KE36..ARL,EUR,GEN ; (7807- )KE3#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-12020 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44772-12060 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-12020 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44772-12060 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-12020 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44772-12060 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-12020 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44772-12060 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
2 | ||
| 44730E - CLAMP, VACUUM CHECK VALVE | ||||
| 44758-12030 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44758-12100 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730E - CLAMP, VACUUM CHECK VALVE | ||||
| 44758-12030 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44758-12100 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730E - CLAMP, VACUUM CHECK VALVE | ||||
| 44758-12030 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44758-12100 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730E - CLAMP, VACUUM CHECK VALVE | ||||
| 44758-12030 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44758-12100 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
KE36..ARL,EUR,GEN;KE30,35,50,TE3#,47,51 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-12060 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44773-13010 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-12060 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44773-13010 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-12060 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44773-13010 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-12060 |
KE3#,50..RHD..(ARL,GEN) |
1 | ||
| 44773-13010 |
KE30,35,50..RHD;KE36..RHD..(ARL,EUR,GEN) |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
KE30,35,50;KE36..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 91611-40812 | ||||
| 91651-40612 | ||||
| 91651-60612 | ||||
| 91656-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
