KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)A20

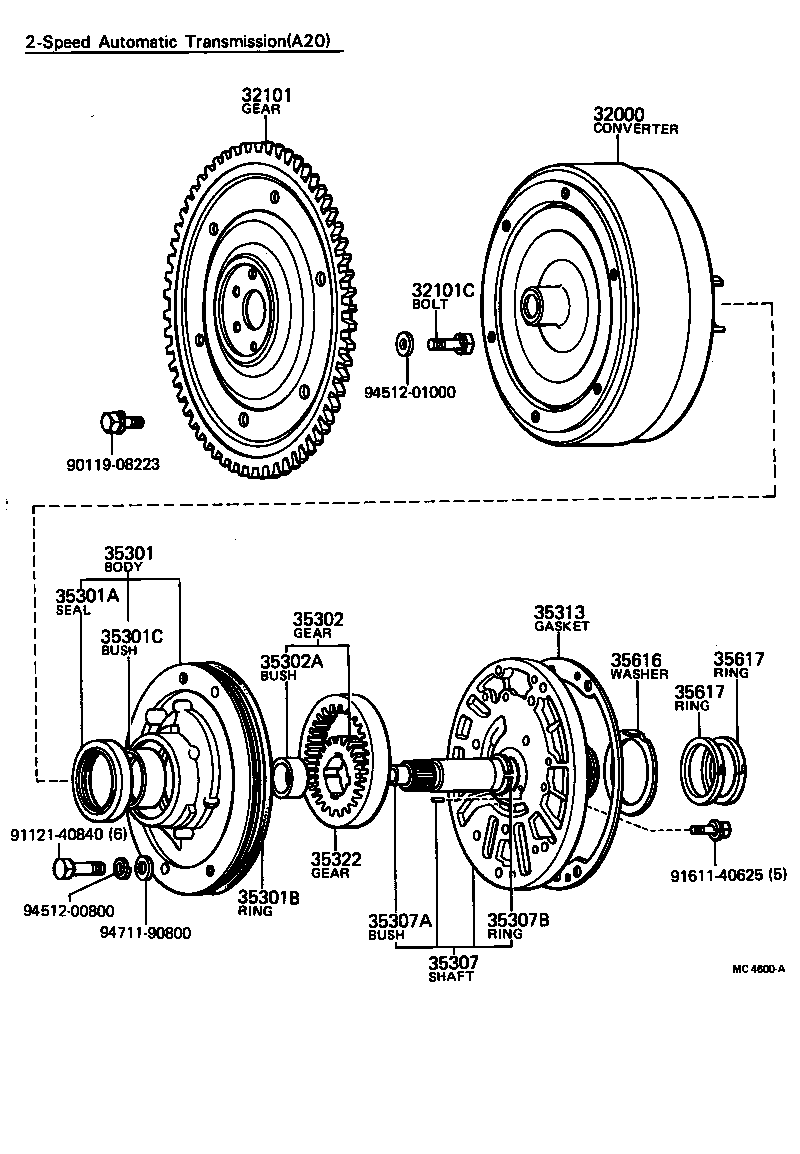

Click highlighted areas on diagram

diagram 32000 32101 32101C 35301 35301A 35301B 35301C 35302 35302A 35307 35307A 35307B 35313 35322 35616 35617 35617 9011908223 9112140840 9161140625 9451200800 9451201000 9471190800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-12012

KE30,35..A20

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-12020

KE30,35..A20

 1
32101-12011

KE30,35..A20

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90119-10078

KE30,35..A20

 6
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-12010

KE30,35..A20

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-42083

KE30,35..A20

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99102

KE30,35..A20

 1
35301C - BUSH, BIMETAL FORMED (FOR FRONT OIL PUMP BODY)
90999-73036

KE30,35..A20

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35302-12010

KE30,35..A20

 1
35302A - BUSH, BIMETAL FORMED (FOR FRONT OIL PUMP DRIVE GEAR)
90999-73037

KE30,35..A20

 1
35307 - SHAFT SUB-ASSY, STATOR
35307-12012

KE30,35..A20

 1
35307A - BUSH, BIMETAL FORMED (FOR STATOR SHAFT)
90999-73047

KE30,35..A20

 1
35307B - RING, SHAFT SNAP (FOR STATOR SHAFT)
90520-25116

KE30,35..A20

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-12011

KE30,35..A20

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-31010

KE30,35..A20

 1
35616 - WASHER, CLUTCH DRUM THRUST
35616-12011

KE30,35..A20

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-12010

KE30,35..A20

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-12010

KE30,35..A20

 2
Common parts
90119-08223
91121-40840
91611-40625
94512-00800
94512-01000
94711-90800
