KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )3KC,3KH,4KC

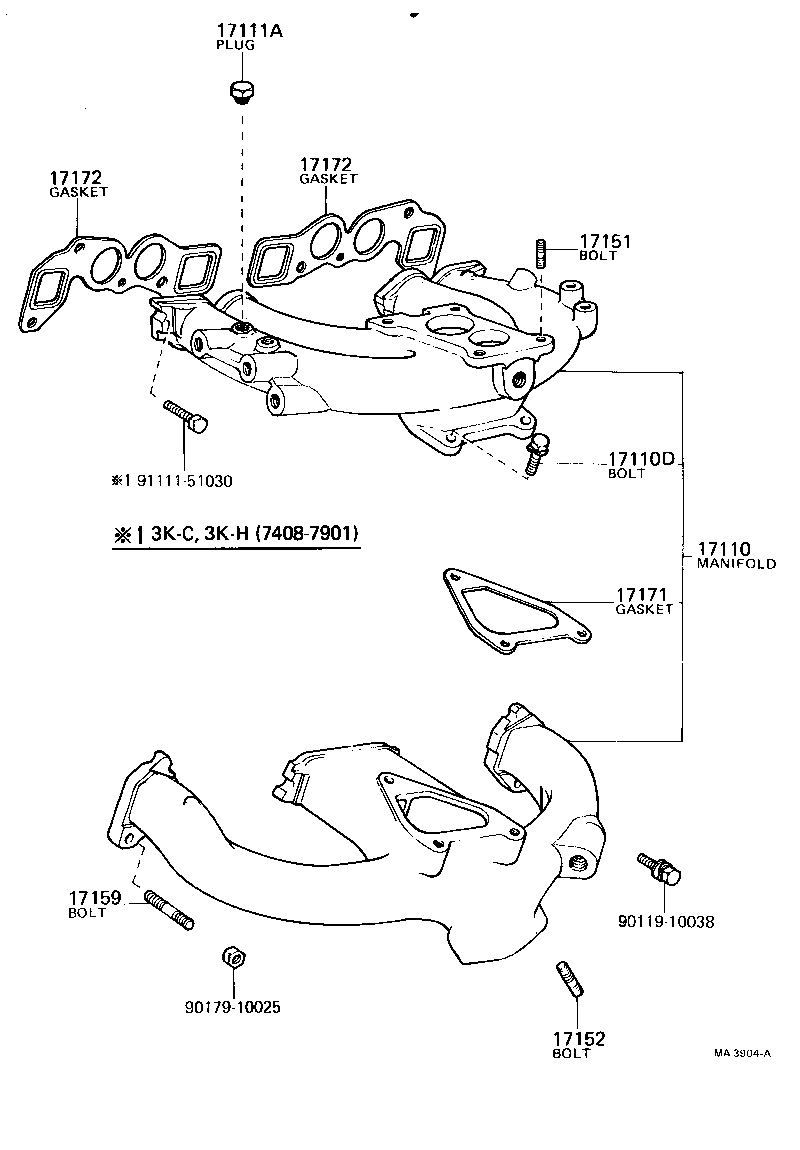

Click highlighted areas on diagram

diagram 17110 17110D 17111A 17151 17152 17159 17171 17172 17172 9011910038 9017910025 9111151030
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-24042

3KC,3KH..KE3#,50

 1
17110-24040

3KC,3KH..KE3#

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-40820

3KC,3KH..KE3#,50

 3
17111A - PLUG, NO.1
90345-51005

3K#..KE3#

 2
90345-51005

3K#..KE3#,50

 3
90345-51005

3K#,4KC..KE3#,5#

 3
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

3K#,4KC..KE3#,5#

L=39,S=13&13

 8
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

3K#..KE3#,50

L=37,S=20&13

 3
90116-10007

3K#..KE3#,50

L=41,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10021

3K#..KE3#,50

L=42,S=14&14

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-24010

3K#,4KC..KE3#,5#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24010

3K#..KE3#

3KB=1(FR)

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24010

3K#..KE3#

3KB=1(FR)

 2
Common parts
90119-10038
90179-10025
91111-51030
