KE35R-CD (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408- )3K#,4KC

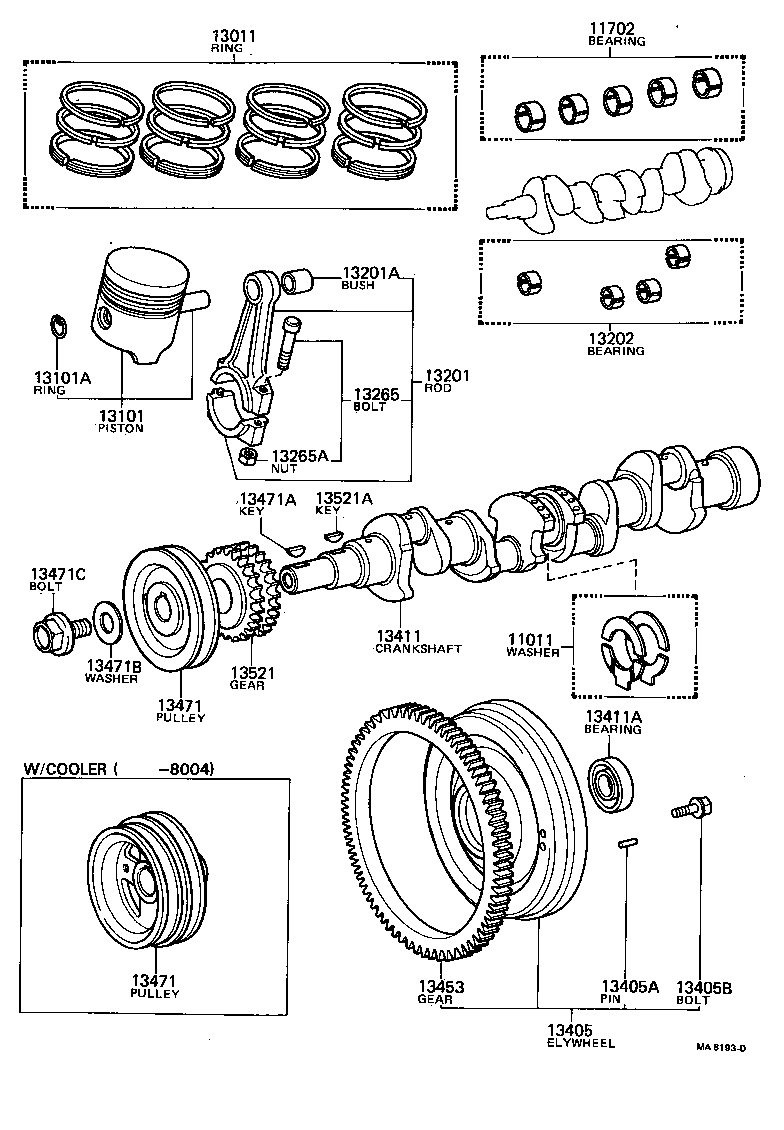

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13471 13471 13471A 13471B 13471C 13521 13521A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-22010

3K#,4KC..KE3#,5#

STD

 1
11013-22010

3K#,4KC..KE3#,5#

O/S 0.250

 1
11012-22010

3K#,4KC..KE3#,5#

O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11706-22020

3K#..KE3#

U/S 0.75

 1
11704-22020

3K#,4KC..KE3#,5#

U/S 0.25,U/S 0.25

 1
11703-22020

3K#,4KC..KE3#,5#

U/S 0.05

 1
11702-22020

3K#,4KC..KE3#,5#

STD

 1
11705-22020

3K#,4KC..KE3#,5#

U/S 0.50

 1
13011 - RING SET, PISTON
13013-24010

3K#..KE3#

O/S 0.50

 1
13011-24010

3K#..KE3#

STD

 1
13012-24010

3K#..KE3#

O/S 0.25

 1
13015-24010

3K#..KE3#

O/S 1.00

 1
13014-24010

3K#..KE3#

O/S 0.75

 1
13101 - PISTON SUB-ASSY, W/PIN
13102-24010

3K#..KE3#

O/S 0.25

 4
13101-24010

3K#..KE3#

STD

 4
13104-24010

3K#,4KC..KE3#,5#

O/S 0.75,O/S 0.75

 4
13105-24010

3K#,4KC..KE3#,5#

O/S 1.00,O/S 1.00

 4
13103-24010

3K#,4KC..KE3#,5#

O/S 0.50,O/S 0.50

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-21088

3K#,4KC..KE3#,5#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-22011

3K#..KE30,35,36,50

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73070

3K#,4KC..KE3#,5#

 4
13202 - BEARING SET, CONNECTING ROD
13204-22010

3K#..KE3#,50

U/S 0.25

 1
13202-22010

3K#..KE3#,50

STD

 1
13206-22010

3K#..KE3#

U/S 0.75

 1
13203-22010

3K#..KE3#,50

U/S 0.05

 1
13205-22010

3K#..KE3#,50

U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-29015

3K#,4KC..KE3#,5#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

3K#,4KC..KE3#,5#

 8
13411 - CRANKSHAFT
13411-24030

3K#..KE3#,50

 1
13471 - PULLEY, CRANKSHAFT
13471-24040

3K#..KE3#,50

 1
13471 - PULLEY, CRANKSHAFT
13471-24040

3K#..KE3#,50

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

3K#,4KC..KE3#,5#

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13059

3K#,4KC..KE3#,5#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12050

3K#..KE3#,50

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22010

3K#,4KC..KE3#,5#

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

3K#,4KC..KE3#,5#

 1
