KE35L-MSBW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 3KB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KB

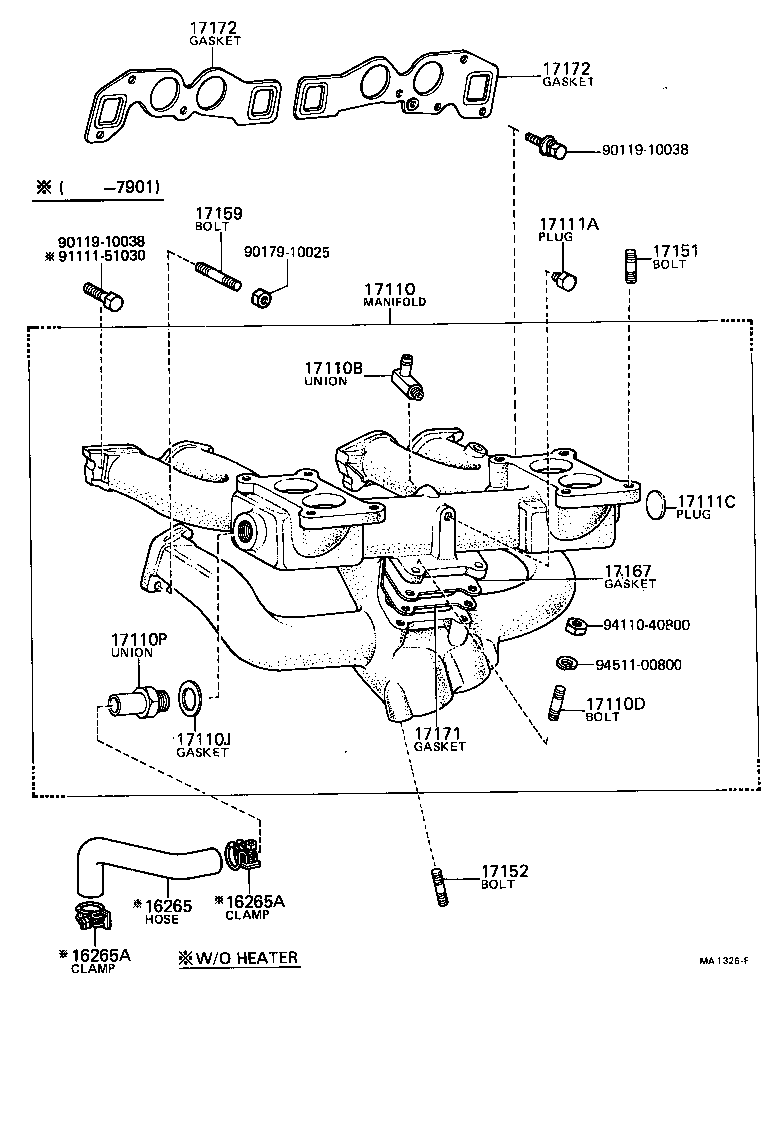

Click highlighted areas on diagram

diagram 16265 16265A 16265A 17110 17110B 17110D 17110J 17110P 17111A 17111C 17151 17152 17159 17167 17171 17172 17172 9011910038 9011910038 9017910025 9111151030 9411040800 9451100800
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-24050

3KB..KE35

 1
17110-24051

3KB..KE35

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-08041

3KB..KE35

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
90116-08212

3KB..KE35

L=38,S=12&12

 3
17110J - GASKET, MANIFOLD TO HEATER WATER PIPE UNION
90430-20018

3KB..KE35

 1
17110P - UNION, MANIFOLD TO HEATER WATER PIPE UNION
90404-20008

3KB..KE35

 1
90404-20190

3KB..KE35

 1
17111A - PLUG, NO.1
90345-51005

3K#..KE3#

 2
90345-51005

3K#,4KC..KE3#,5#

 3
17111C - PLUG, NO.3
96412-82500

3KB..KE35

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

3K#,4KC..KE3#,5#

L=39,S=13&13

 8
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

3K#..KE3#,50

L=37,S=20&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10021

3K#..KE3#,50

L=42,S=14&14

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-24010

3KB..KE35

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-24010

3K#,4KC..KE3#,5#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24020

3KB..KE35

RR

 1
17172-24010

3K#..KE3#

3KB=1(FR)

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24020

3KB..KE35

RR

 1
17172-24010

3K#..KE3#

3KB=1(FR)

 2
Common parts
90119-10038
90179-10025
91111-51030
94110-40800
94511-00800
