KE35L-KSB (1974)

Toyota Corolla/Trueno

Production Aug 1974 - Aug 1979
Engine 3KB
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KB

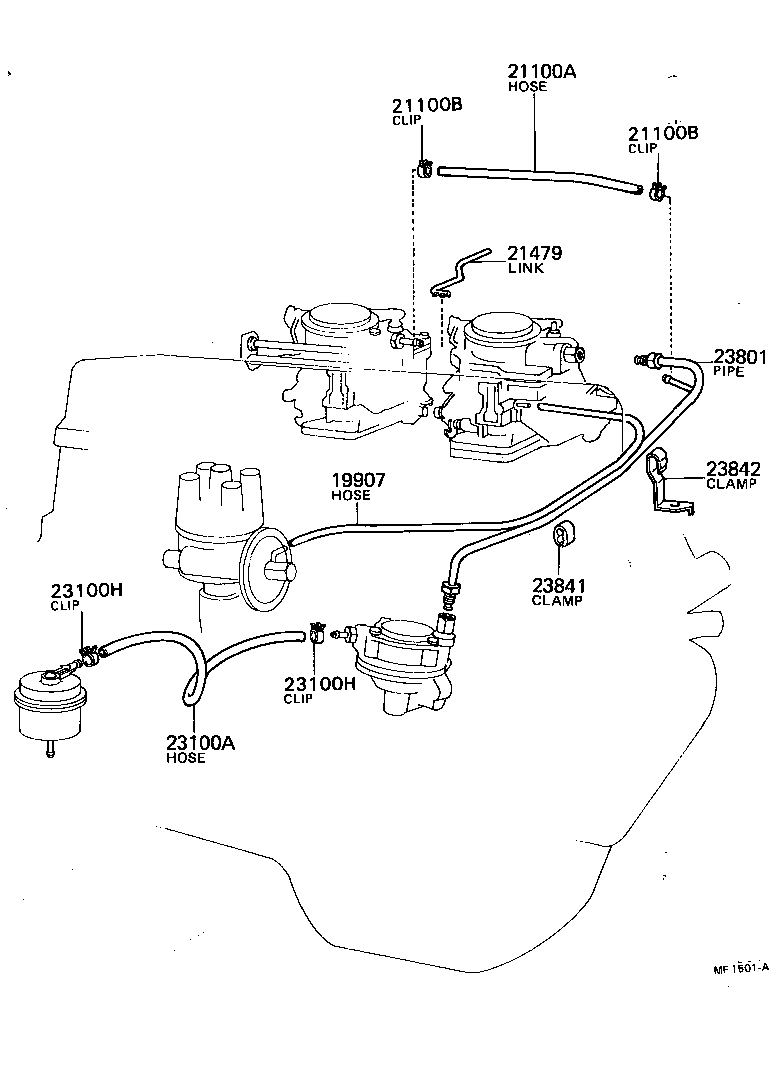

Click highlighted areas on diagram

diagram 19907 21100A 21100B 21100B 21479 23100A 23100H 23100H 23801 23841 23842
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
90445-07003

3KB..KE35

 1
95411-19960

3KB..KE35

*H,L=450

 1
21100A - HOSE(FOR CARBURETOR)
95332-06024

3KB..KE35

L=240

 1
95331-06024

3KB..KE35

L=240

 1
95332-06030

3KB..KE35

*H,L=240

 1
21100B - CLIP(FOR CARBURETOR)
96132-30600

3KB..KE35

 2
21100B - CLIP(FOR CARBURETOR)
96132-30600

3KB..KE35

 2
21479 - LINK, CHOKE LEVER, NO.2
21477-24011

3KB..KE35

 1
23100A - HOSE, FUEL
95331-06038

3K#..KE3#,50

L=380

 1
95332-06038

3K#..KE3#,50

L=380

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

3K#,4KC..KE3#,5#

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

3K#,4KC..KE3#,5#

 4
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-24022

3KB..KE35

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23842-11010

3KH,3KB..KE3#

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
90461-08532

3K#,4KC..KE3#,5#

 1
