KE35L-KDC (1975)
Toyota Corolla/Trueno
Production
Aug 1975
-
Jun 1976
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7701)LHD

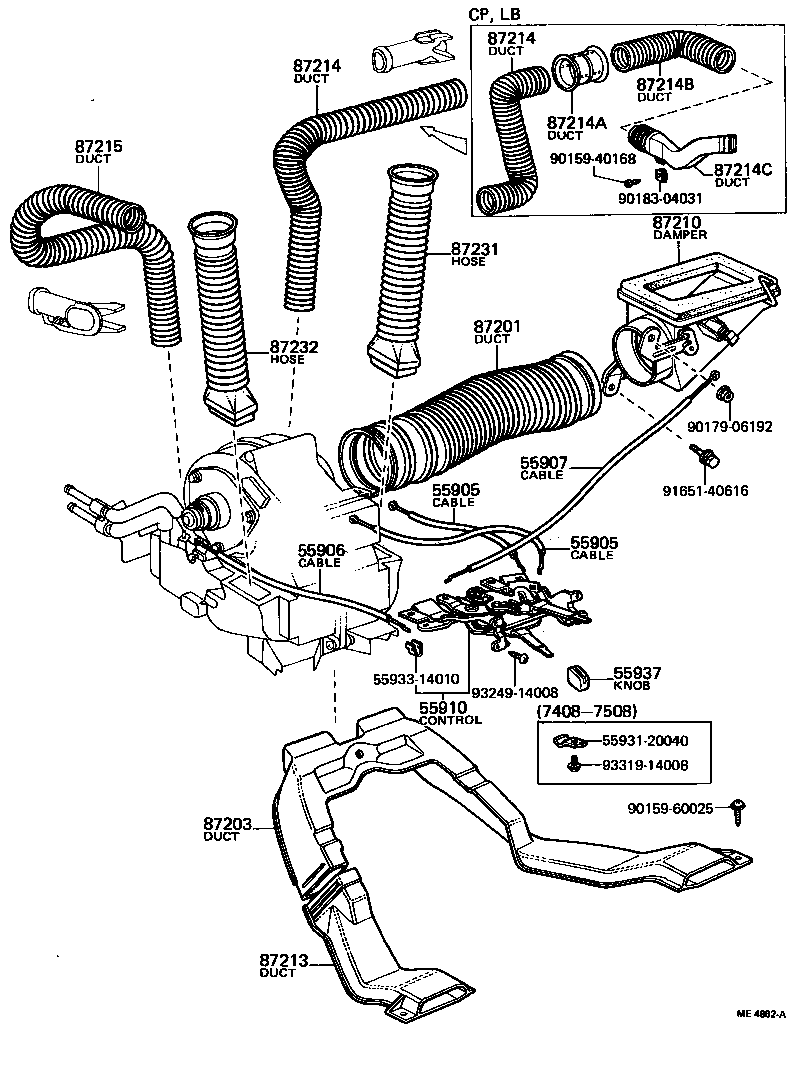

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55909-12040 |
KE3#..LHD BOOST VENTILATOR DUMPER |
1 | ||
| 55906-12040 |
TE3#;KE3#..ARL,EUR,GEN DEFROSTER DUMPER |
1 | ||
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55909-12040 |
KE3#..LHD BOOST VENTILATOR DUMPER |
1 | ||
| 55906-12040 |
TE3#;KE3#..ARL,EUR,GEN DEFROSTER DUMPER |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55907-12040 |
KE3#..LHD |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55908-12070 |
KE3#..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12912 |
KE3#..LHD |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12040 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
2 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-12020 |
KE30,35,36,50,TE47,51..LHD |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-12020 |
KE30,35,36,50,TE47,51..LHD |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-12050 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-12050 |
TE3#;KE3#,50,TE47,51..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 55931-20040 | ||||
| 55933-14010 | ||||
| 90159-40168 | ||||
| 90159-60025 | ||||
| 90179-06192 | ||||
| 90183-04031 | ||||
| 91651-40616 | ||||
| 93249-14008 | ||||
| 93319-14008 | ||||
