KE35L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Jun 1976
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7701)LHD

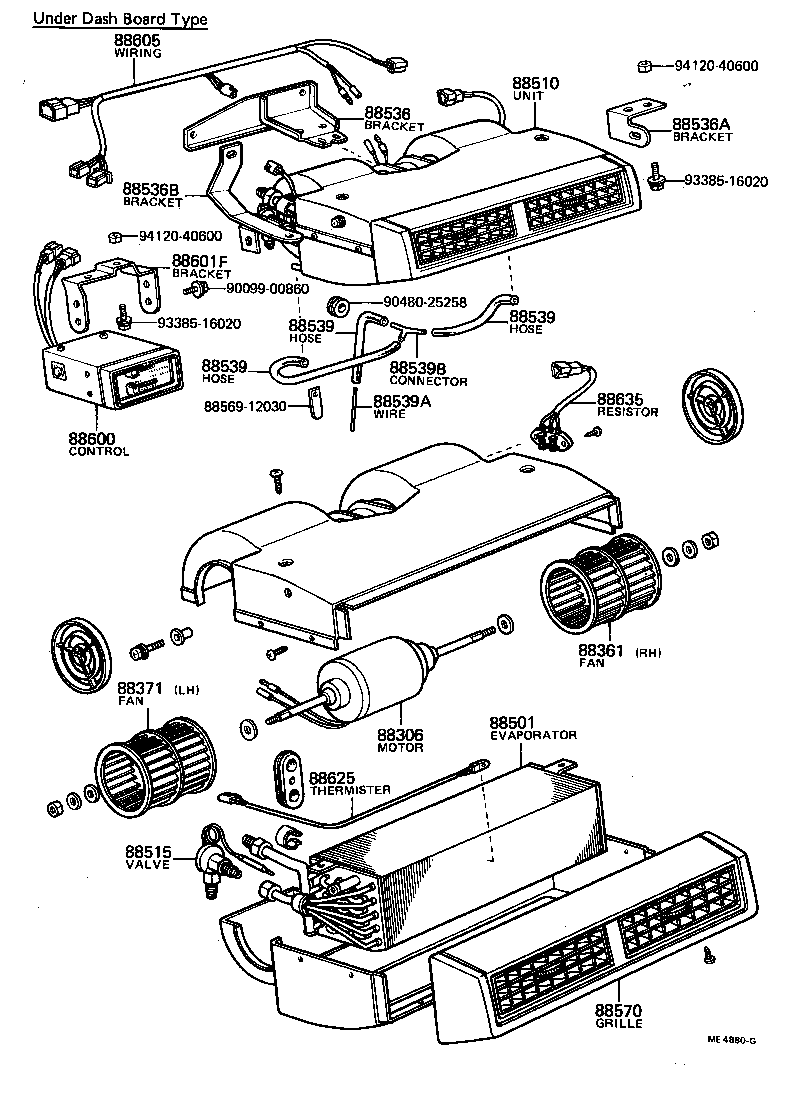

Click highlighted areas on diagram

diagram 88306 88361 88371 88501 88510 88515 88536 88536A 88536B 88539 88539 88539 88539A 88539B 8856912030 88570 88600 88601F 88605 88625 88635 9009900860 9048025258 9338516020 9338516020 9412040600 9412040600
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30300

KE3#..LHD

 1
88361 - FAN, COOLER BLOWER, NO.1
88541-10010

KE3#..LHD

 1
88371 - FAN, COOLER BLOWER, NO.2
88541-10020

KE3#..LHD

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30520

KE3#..LHD

 1
88510 - UNIT ASSY, COOLER
88510-12071

KE3#..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-10010

KE3#..LHD

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-12080

KE3#..LHD

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-12090

KE3#..LHD

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-12100

KE3#..LHD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22011

KE3#..LHD

 2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22011

KE3#..LHD

 2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22011

KE3#..LHD

 2
88539A - WIRE, DRAIN HOSE(FOR COOLER)
88895-12020

KE3#..LHD

 1
88539B - CONNECTOR, COOLER DRAIN HOSE
88894-22010

KE3#..LHD

 1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-12050

KE3#..LHD

 1
88600 - CONTROL ASSY, AIR CONDITIONER
88660-10010

KE3#..LHD

 1
88601F - BRACKET, COOLER CONTROL SWITCH
88899-12100

KE3#..LHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-12080

KE3#..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-22010

KE3#..LHD

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-30330

KE3#..LHD

 1
Common parts
88569-12030
90099-00860
90480-25258
93385-16020
94120-40600
