KE35L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Jun 1976
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7701)

Click highlighted areas on diagram

diagram 8202 86011 86011A 86011C 86011C 8602 86120 86211 86212 86213 9016450048 9017906070 9018305094 9331914006 9331915008 9331915008 9331915008 9338515012
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-19055

KE3#,50,TE47,51..ARL,EUR,GEN

AM(LW/MW)

 1
86011-19065

KE3#,50,TE47,51..ARL,EUR,GEN

AM(LW/MW/UKW)

 1
86011C - FILTER, NOISE
90980-05009

KE3#,50,TE47,51..ARL,EUR,GEN

IGNITION COIL

 1
90980-05019

KE3#,50,TE47,51..ARL,EUR,GEN

AM/FM,WIPER MOTOR

 1
86011C - FILTER, NOISE
90980-05009

KE3#,50,TE47,51..ARL,EUR,GEN

IGNITION COIL

 1
90980-05019

KE3#,50,TE47,51..ARL,EUR,GEN

AM/FM,WIPER MOTOR

 1
86120 - RECEIVER ASSY, RADIO
86120-12090

KE3#,50,TE47,51..ARL,EUR,GEN

AM(MW)

 1
86120-12160

KE3#,50,TE47,51..ARL,EUR,GEN

AM(LW/MW)

 1
86120-12150

KE3#,50,TE47,51..ARL,EUR,GEN

AM(LW/MW/UKW)

 1
86211 - BRACKET, RADIO, NO.1
86214-12010

KE3#..ARL,EUR,GEN

 1
86212 - BRACKET, RADIO, NO.2
86214-12020

KE3#..ARL,EUR,GEN

 1
Common parts
90164-50048
90179-06070
90183-05094
93319-14006
93319-15008
93385-15012
Linked diagrams
8202
8602

(7408-7701)KE30,35..LHD

Click highlighted areas on diagram

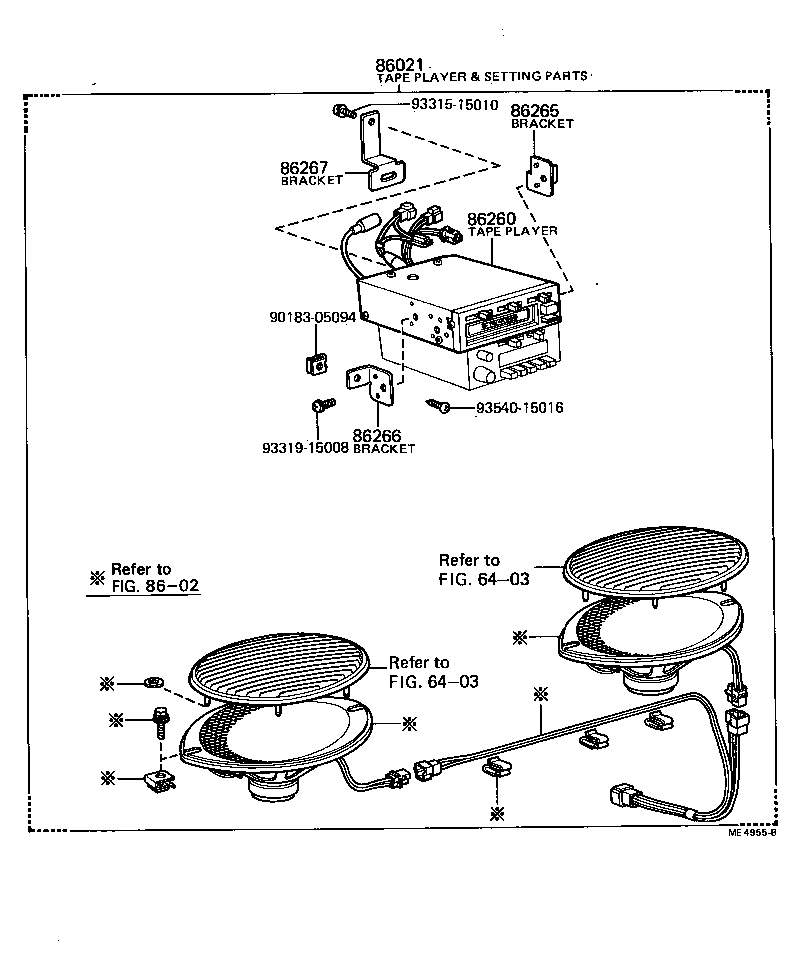

diagram 6403 6403 8602 86021 86260 86265 86266 86267 9018305094 9331515010 9331915008 9354015016
Part # Description Qty Price
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-19085

KE30,35..LHD

8-TRACK

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-12100

KE30,35..LHD

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-12110

KE30,35..LHD

 1
Common parts
90183-05094
93315-15010
93319-15008
93540-15016
Linked diagrams
6403
8602
