KE35L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Jun 1976
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7701)

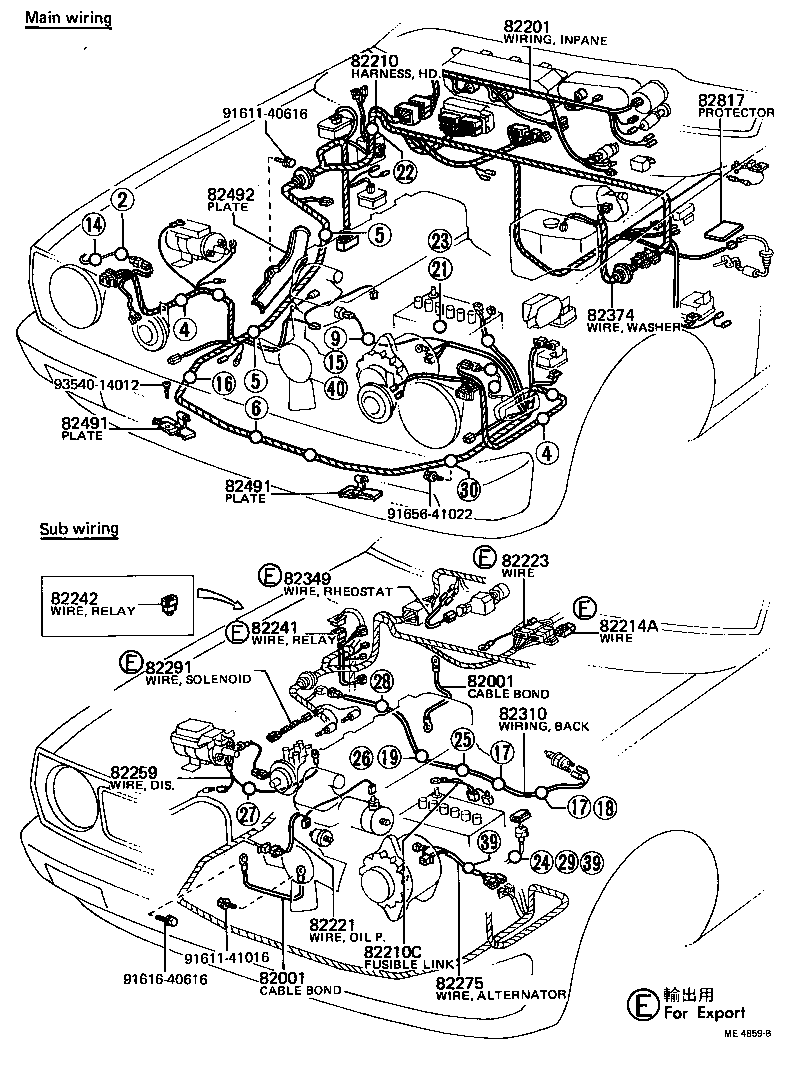

Click highlighted areas on diagram

diagram 82001 82001 82201 82210 82210C 82214A 82221 82223 82241 82242 82259 82275 82291 82310 82349 82374 82491 82491 82492 82817 9161140616 9161141016 9161640616 9165641022 9354014012
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07093

KE3#

ENGINE-APRON

 1
90980-07090

KE3#..ARL,EUR,GEN

RADIO TUNER-BODY

 1
90980-07058

KE3#,5#

L=370

 1
82001 - CABLE, BOND, NO.1
90980-07093

KE3#

ENGINE-APRON

 1
90980-07090

KE3#..ARL,EUR,GEN

RADIO TUNER-BODY

 1
90980-07058

KE3#,5#

L=370

 1
82201 - WIRING SUB-ASSY, INSTRUMENT PANEL
82201-12120

KE3#..LHD..DLX

 1
82201-12122

KE3#..LHD..(DLX,STD)

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-12641

KE3#..LHD..MTM

 1
82210-12642

KE3#..LHD..MTM

 1
82210-12640

KE3#..LHD..MTM

 1
82210C - FUSIBLE LINK
90982-08021

KE3#,50,TE3#,47,51..DLX,LT,SR,ST,STD

 1
82259 - WIRE, DISTRIBUTOR
82259-12010

KE3#,TE3#,47

 1
82275 - WIRE, ALTERNATOR
82261-12010

KE3#

 1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-12130

KE3#..LHD..MTM

 1
82310-12070

KE3#..LHD..MTM

 1
82374 - WIRE, WASHER
82375-12020

KE3#,TE47..LHD

 1
82375-12030

KE3#,TE47..LHD

 1
82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1
82829-12010

KE3#,50,TE3#,47,51

LH

 1
82817-12080

KE3#,50,TE3#,47,51

RH

 1
82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1
82829-12010

KE3#,50,TE3#,47,51

LH

 1
82817-12080

KE3#,50,TE3#,47,51

RH

 1
82492 - PLATE, WIRING HARNESS PROTECTOR, NO.2
53797-12030

KE3#,50,TE47,51..LHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12090

KE35,TE3#,47

 1
Common parts
91611-40616
91611-41016
91616-40616
91656-41022
93540-14012

(7408-7701)KE3#,TE3#,47

Click highlighted areas on diagram

diagram 82046 82046 82216 82223A 82341 82350 82350 82350 82410 82410 82412 82420 82420 82470 82471 82510 82510 82817 82817 9015950098 9015950098 9324016010 9351015010 9452500500 9452500600
Part # Description Qty Price
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-12030

KE30,35,TE3#,47

 1
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-12030

KE30,35,TE3#,47

 1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-12010

KE30,35,TE47

 1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-12140

KE30,35,TE3#

 1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-12140

KE30,35,TE3#

 1
82420 - WIRING ASSY, CHASSIS
82420-12100

KE30,35,TE3#

 1
82420 - WIRING ASSY, CHASSIS
82420-12100

KE30,35,TE3#

 1
82510 - WIRING ASSY, ROOF
82510-12020

KE3#,TE3#

 1
82510 - WIRING ASSY, ROOF
82510-12020

KE3#,TE3#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12090

KE35,TE3#,47

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12090

KE35,TE3#,47

 1
Common parts
90159-50098
93240-16010
93510-15010
94525-00500
94525-00600

(7408-7701)

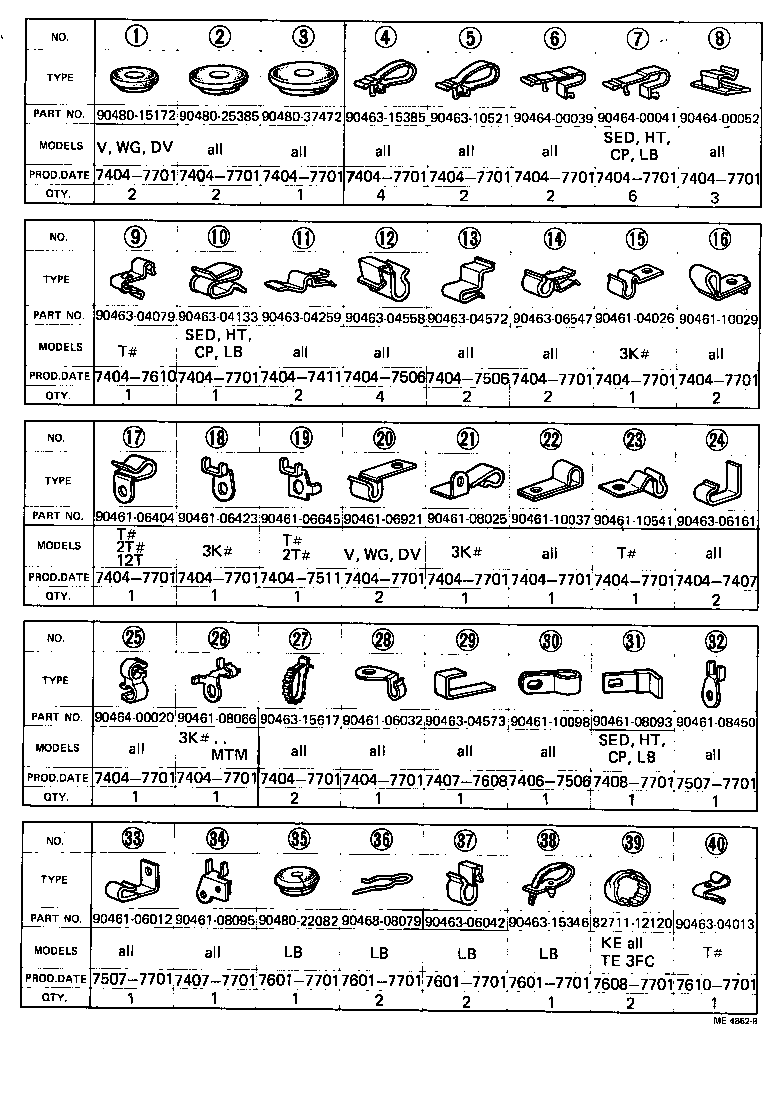

Click highlighted areas on diagram
