KE35L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Jun 1976
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-8002)KE30,35,36..LHD

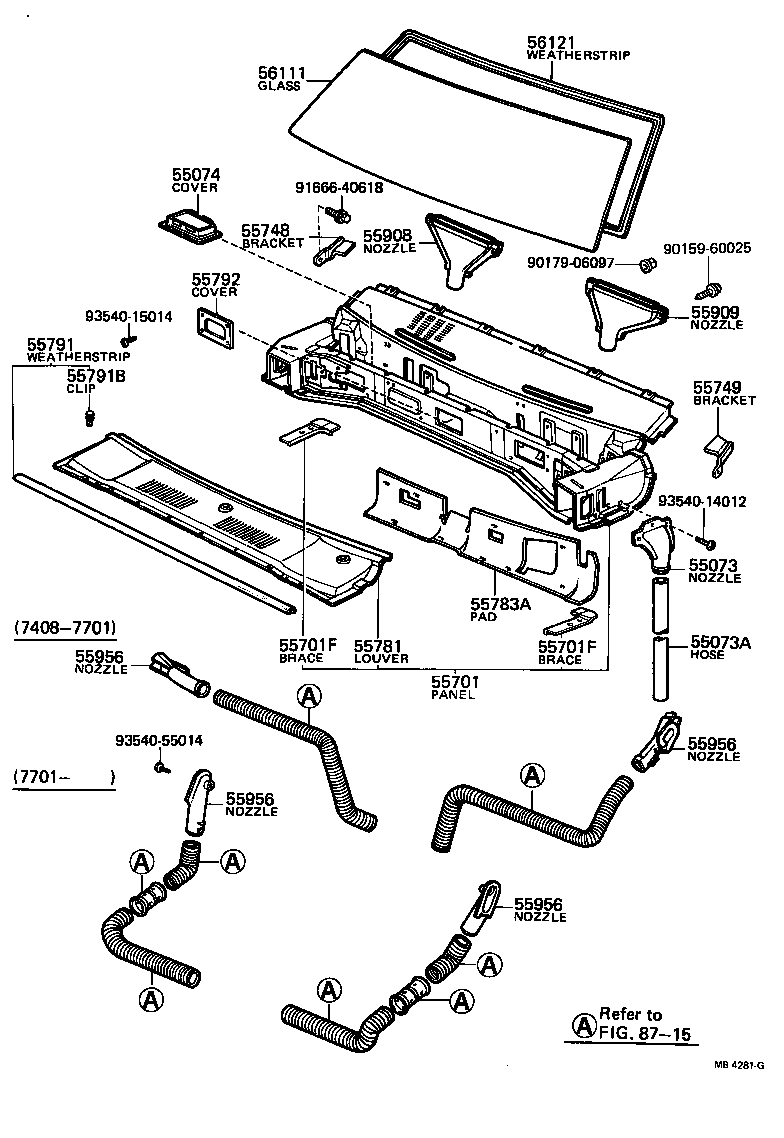

Click highlighted areas on diagram

diagram 55073 55073A 55074 55701 55701F 55701F 55748 55749 55781 55783A 55791 55791B 55792 55908 55909 55956 55956 55956 55956 56111 56121 8715 9015960025 9017906097 9166640618 9354014012 9354015014 9354055014
Part # Description Qty Price
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-20010

KE3#,TE47

 2
55073A - HOSE(FOR EXTRACT NOZZLE)
90445-33004

KE3#,TE47

 2
55701 - PANEL SUB-ASSY, COWL
55700-12040

KE3#..LHD

 1
55781 - LOUVER, COWL VENTILATOR
55711-12070

KE30,35,36..LHD

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-12010

KE3#,55,TE3#..DV,HT,SED,WG

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-07050

KE3#,50,TE3#,47,51

 8
55792 - COVER, WIPER MOTOR SERVICE HOLE
55071-20010

KE3#,5#,TE3#,47,51

 3
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55091-12010

KE3#,5#,TE3#,47,51

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55092-12010

KE3#,5#,TE3#,47,51

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-12140

KE35,55,TE37..HT

 1
Common parts
90159-60025
90179-06097
91666-40618
93540-14012
93540-15014
93540-55014
Linked diagrams
8715
