KE35L-KDC (1975)
Toyota Corolla/Trueno
Production
Aug 1975
-
Jun 1976
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7606)KE3#,50..MTM

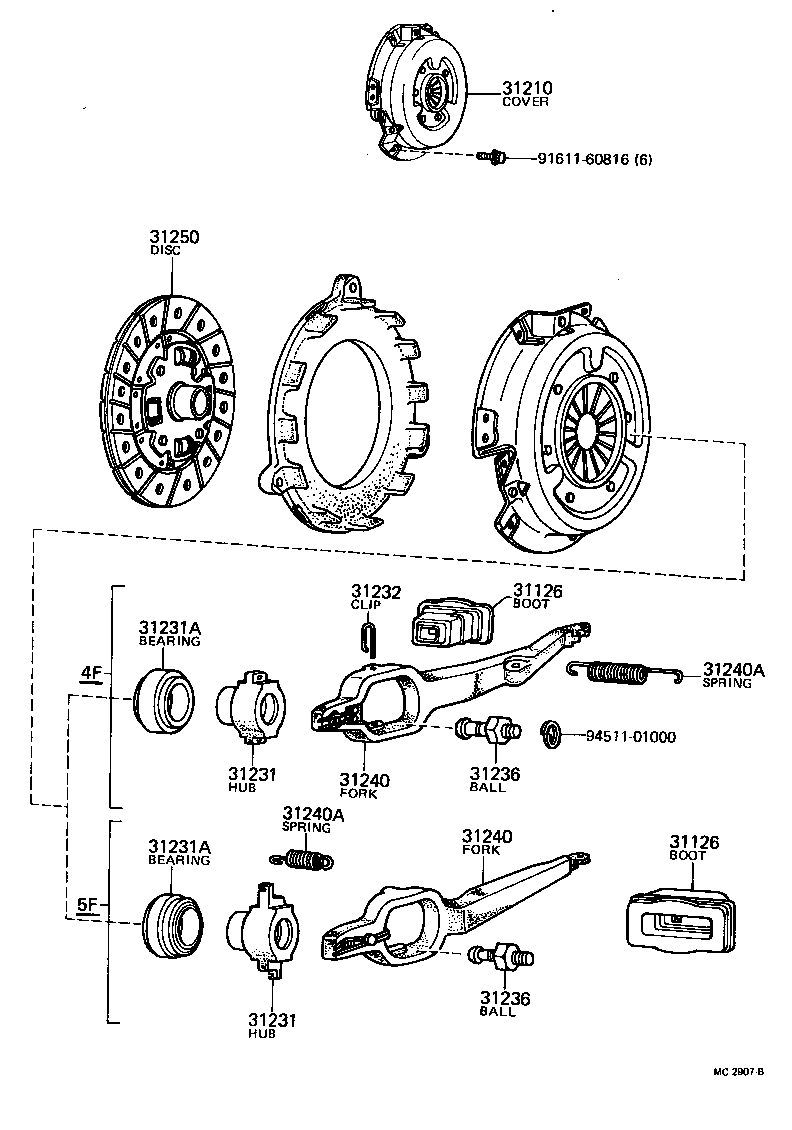

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-12020 |
KE3#,5#..K40 |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-12020 |
KE3#,5#..K40 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-12040 |
KE3#,50..MTM |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-12030 |
KE3#,50..K40 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-12030 |
KE3#,50..K40 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-33080 |
KE3#,50..K40 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-33080 |
KE3#,50..K40 |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-12010 |
KE3#,50..K40 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-30030 |
KE3#,5#..MTM |
1 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-30030 |
KE3#,5#..MTM |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-12010 |
KE3#,5#..K40 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-12010 |
KE3#,5#..K40 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-14139 |
KE3#,50..K40 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-14139 |
KE3#,50..K40 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-12021 |
KE30,35,36,50..K40 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 94511-01000 | ||||
