KE35L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Jun 1976
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7508- )3KC,4KC

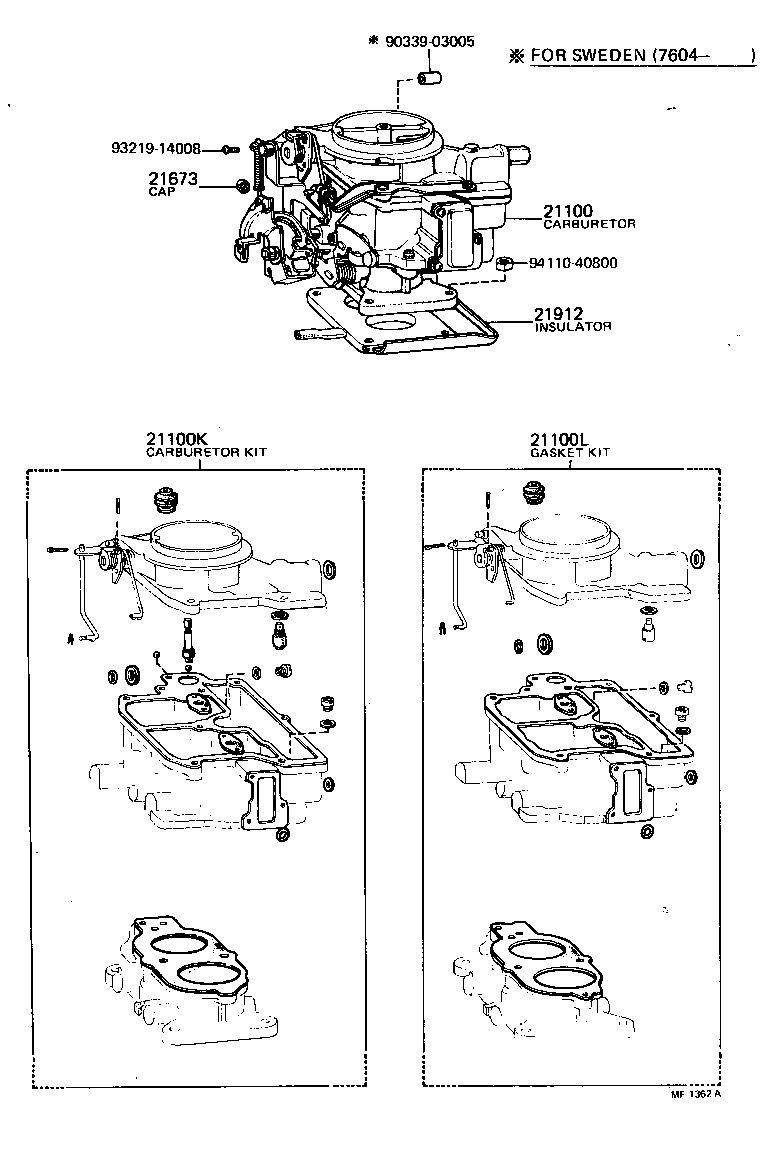

Click highlighted areas on diagram

diagram 21100 21100K 21100L 21673 21912 9033903005 9321914008 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-24370

3KC..KE3#

 1
21100L - GASKET KIT, CARBURETOR
04212-24012

3K#..KE3#,50

 2
21912 - INSULATOR, CARBURETOR HEAT
21912-24060

3KC,3KH..KE3#,50

 1
Common parts
90339-03005
93219-14008
94110-40800
