KE35L-KDC (1975)

Toyota Corolla/Trueno

Production Aug 1975 - Jun 1976
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7902)3K#,4KC..KE30,35,55..HT,SED ; (7902-)3KB ; (7902- )3KH,4KC..KE30,

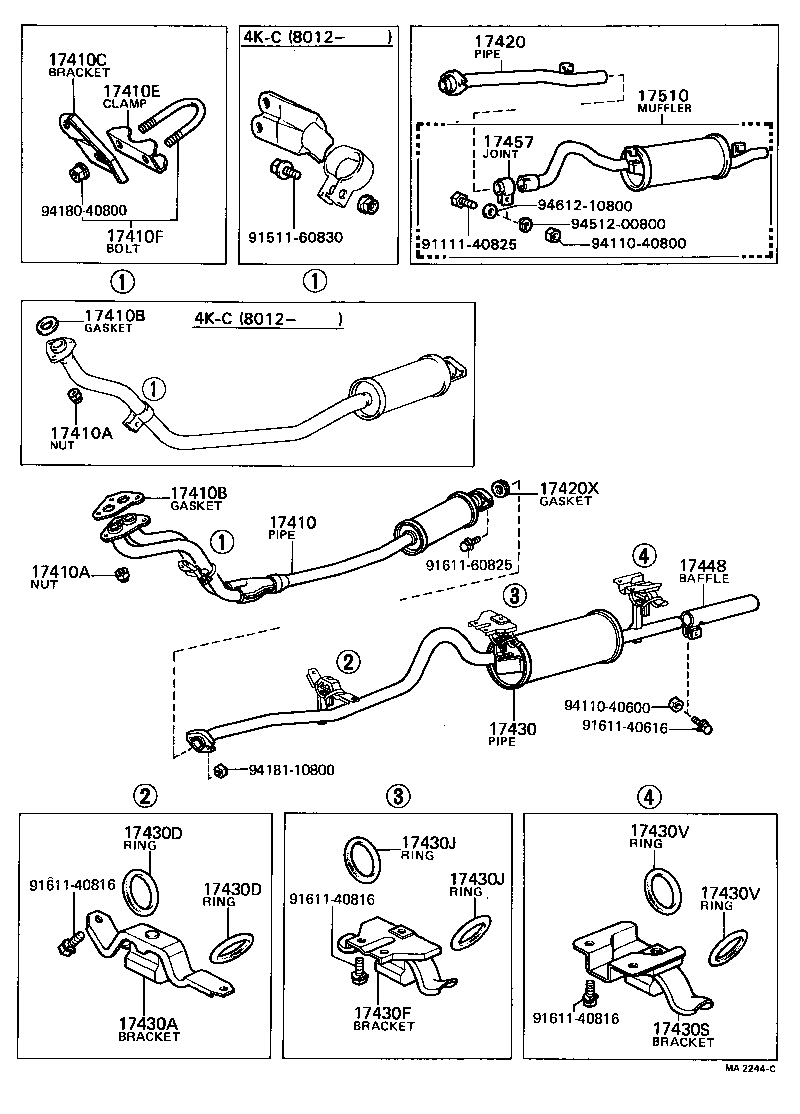

Click highlighted areas on diagram

diagram 17410 17410A 17410A 17410B 17410B 17410C 17410E 17410F 17420 17420X 17430 17430A 17430D 17430D 17430F 17430J 17430J 17430S 17430V 17430V 17448 17457 17510 9111140825 9151160830 9161140616 9161140816 9161140816 9161140816 9161160825 9411040600 9411040800 9418040800 9418110800 9451200800 9461210800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-24100

3K#..KE3#,50

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

3K#,2T#..KE3#,TE3#,47

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

3K#,2T#..KE3#,TE3#,47

 3
17410B - GASKET, EXHAUST PIPE
17451-22010

3K#,4KC..KE3#,5#

 1
17410B - GASKET, EXHAUST PIPE
17451-22010

3K#,4KC..KE3#,5#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24040

3K#..KE3#,50

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04019

3K#,4KC..KE3#,5#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08136

3K#..KE30,35,36,50

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17456-24040

3K#,2T..KE30,35,TE3#,47

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06001

3K#,2T..KE30,35,36,50,TE3#,47,51

FRONT

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-24090

3K#..KE30,35

 1
17430-24140

3K#..KE30,35

ALUMINIZED

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-24010

3K#,2T#..KE30,35,TE3#,47

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34172

3K#,2T#..KE3#,TE3#,47

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34172

3K#,2T#..KE3#,TE3#,47

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-24010

3K#,2T#..KE30,35,TE3#,47

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34172

3K#,2T#..KE30,35,36,TE3#,47

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34172

3K#,2T#..KE30,35,36,TE3#,47

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-24030

3K#,2T#..KE30,35,TE3#,47

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34172

3K#,2T#..KE30,35,36,TE3#,47

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34172

3K#,2T#..KE30,35,36,TE3#,47

 2
17457 - JOINT, EXHAUST PIPE
17504-40010

3K#,2T..KE3#,TE3#,47

 1
17510 - MUFFLER ASSY
17540-24050

3K#..KE30,35

 1
Common parts
91111-40825
91511-60830
91611-40616
91611-40816
91611-60825
94110-40600
94110-40800
94180-40800
94181-10800
94512-00800
94612-10800
