KE35L-CDW (1977)

Toyota Corolla/Trueno

Production Jan 1977 - Aug 1979
Engine 3KH
Transmission 2FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7701- )LHD

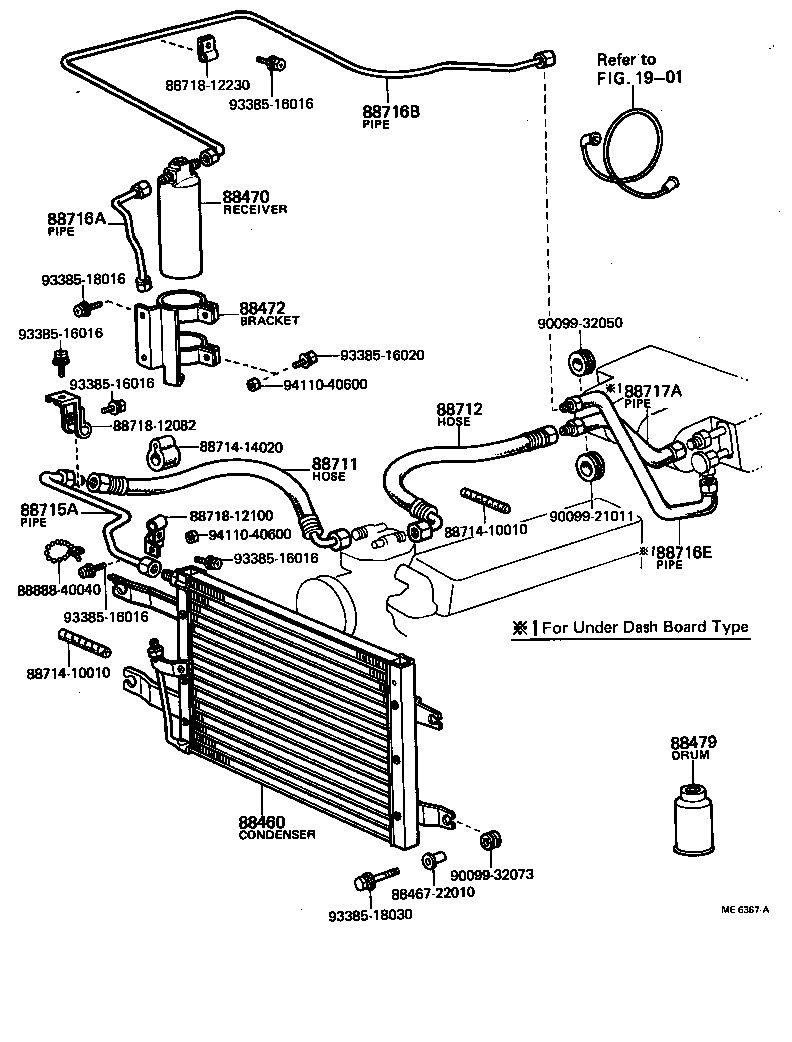

Click highlighted areas on diagram

diagram 1901 88460 8846722010 88470 88472 88479 88711 88712 8871410010 8871410010 8871414020 88715A 88716A 88716B 88716E 88717A 8871812082 8871812100 8871812230 8888840040 9009921011 9009932050 9009932073 9338516016 9338516016 9338516016 9338516016 9338516016 9338516020 9338518016 9338518030 9411040600 9411040600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-12030

KE3#..LHD

 1
88460-12031

KE3#..LHD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-10010

KE3#..LHD

 1
88470-10010

KE3#..LHD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-12120

KE3#..LHD

 1
88472-12120

KE3#..LHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

KE3#..LHD

 2
88434-30010

KE3#..LHD

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14030

KE3#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12110

KE3#..LHD

 1
88712-12160

KE3#..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12040

KE3#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12140

KE3#..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-12180

KE3#..LHD

 1
88716-12180

KE35..LHD

 1
88716-12261

KE35,50..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12220

KE3#..LHD

 1
88716-12220

KE3#..LHD

 1
88716-12261

KE30,35,36,50,TE47,51..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12080

KE3#..LHD

 1
88717-12080

KE3#..LHD

 1
Common parts
88467-22010
88714-10010
88714-14020
88718-12082
88718-12100
88718-12230
88888-40040
90099-21011
90099-32050
90099-32073
93385-16016
93385-16020
93385-18016
93385-18030
94110-40600
Linked diagrams
1901
