KE30R-KDW (1977)
Toyota Corolla/Trueno
(7701- )

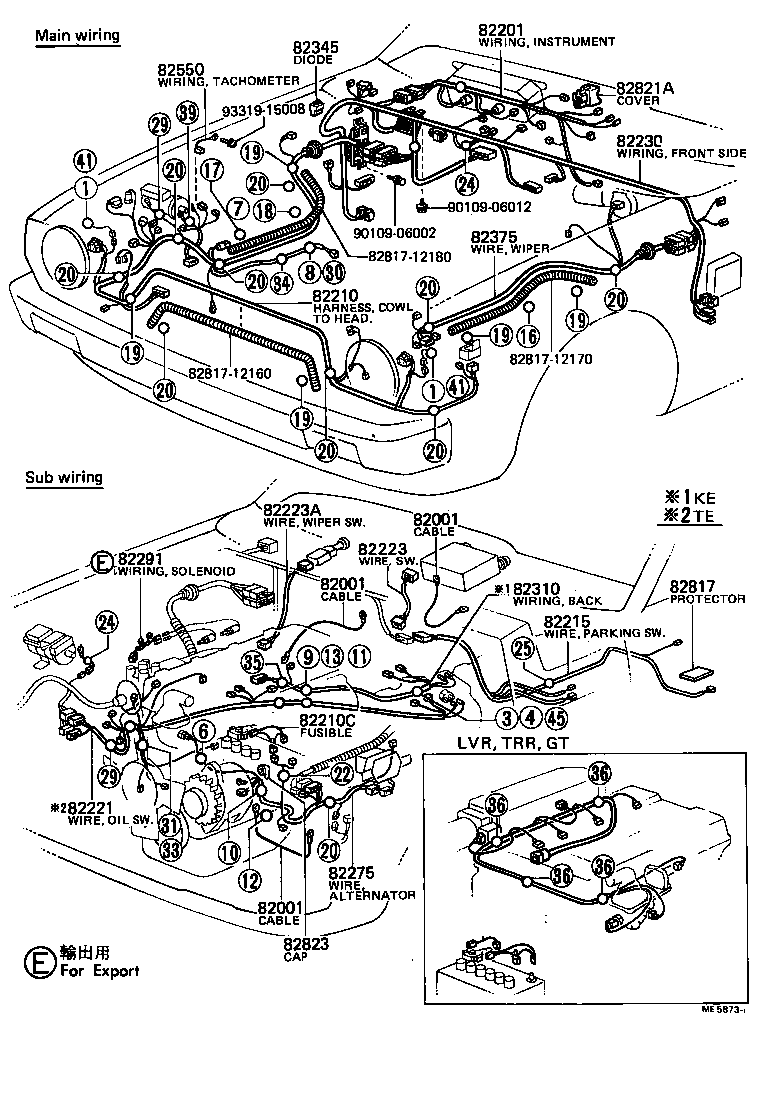

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON |
1 | ||
| 90980-07090 |
KE3#..ARL,EUR,GEN RADIO TUNER-BODY |
1 | ||
| 82046-12100 |
KE30,35,TE3# RR COMBINATION LAMP |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON |
1 | ||
| 90980-07090 |
KE3#..ARL,EUR,GEN RADIO TUNER-BODY |
1 | ||
| 82046-12100 |
KE30,35,TE3# RR COMBINATION LAMP |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON |
1 | ||
| 90980-07090 |
KE3#..ARL,EUR,GEN RADIO TUNER-BODY |
1 | ||
| 82046-12100 |
KE30,35,TE3# RR COMBINATION LAMP |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-12020 |
KE3#,TE31..RHD..DLX |
1 | ||
| 82201-12300 |
KE3#,TE31..RHD |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-12520 |
KE3#..RHD..MTM |
1 | ||
| 82270-12120 |
KE3#,50..RHD |
1 | ||
| 82270-12390 |
KE30,35,36,50..RHD |
1 | ||
| 82270-12121 |
KE3#,50..RHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08021 |
KE3#,50,TE3#,47,51..DLX,LT,SR,ST,STD |
1 | ||
| 82230 - WIRING ASSY, FRONT SIDE | ||||
| 82230-12231 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 82230-12230 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 82230-12500 |
KE3#,50,TE3#,47,51..RHD |
1 | ||
| 82275 - WIRE, ALTERNATOR | ||||
| 82261-12070 |
KE3#,50 |
1 | ||
| 82261-12010 |
KE3# |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-12171 |
KE3#,50..K40 |
1 | ||
| 82310-12120 |
KE3#..RHD..MTM |
1 | ||
| 82310-12160 |
KE3#,50..K40 |
1 | ||
| 82375 - WIRE, WIPER SWITCH | ||||
| 82375-12040 |
KE3#,50,TE3#,47,51..RHD..(DLX,LT,SR,STD) |
1 | ||
| 82375-12130 |
KE3#,50..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12090 |
KE30..A20,K40;KE30..K50..4D |
1 | ||
| Common parts | ||||
| 82817-12160 | ||||
| 82817-12170 | ||||
| 82817-12180 | ||||
| 90109-06002 | ||||
| 90109-06012 | ||||
| 93319-15008 | ||||

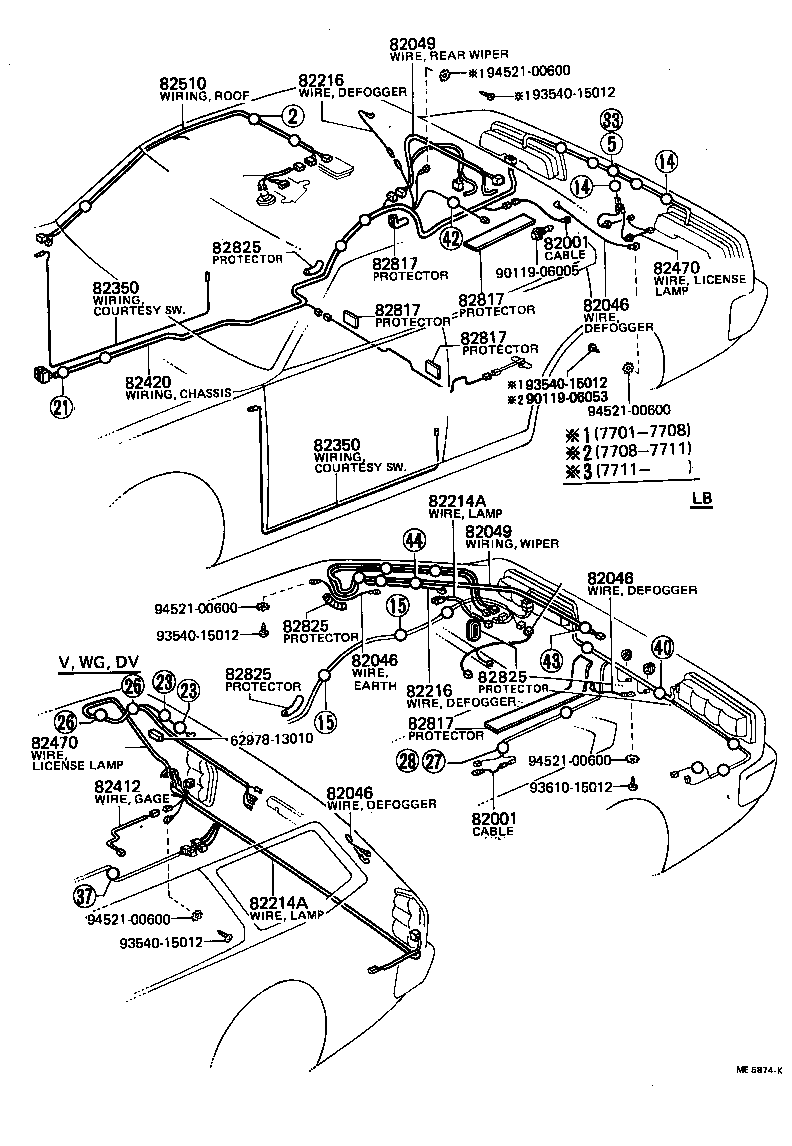

(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON |
1 | ||
| 90980-07090 |
KE3#..ARL,EUR,GEN RADIO TUNER-BODY |
1 | ||
| 82046-12100 |
KE30,35,TE3# RR COMBINATION LAMP |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON |
1 | ||
| 90980-07090 |
KE3#..ARL,EUR,GEN RADIO TUNER-BODY |
1 | ||
| 82046-12100 |
KE30,35,TE3# RR COMBINATION LAMP |
1 | ||
| 90980-07058 |
KE3#,5# L=370 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE30,35,TE3#,47 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE30,35,TE3#,47 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE30,35,TE3#,47 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE30,35,TE3#,47 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-12010 |
KE3#,TE3#,47..RHD |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-12010 |
KE3#,TE3#,47..RHD |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12010 |
KE30,35,TE47 |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12010 |
KE30,35,TE47 |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-12100 |
KE30,35,TE3# |
1 | ||
| 82420-12210 |
KE30,35,TE3#,47 |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-12020 |
KE3#,50,TE3#,47,51 |
1 | ||
| 82510-12130 |
KE30,35,TE3# |
1 | ||
| 82510-12020 |
KE3#,TE3# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12090 |
KE30..A20,K40;KE30..K50..4D |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12090 |
KE30..A20,K40;KE30..K50..4D |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12090 |
KE30..A20,K40;KE30..K50..4D |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12090 |
KE30..A20,K40;KE30..K50..4D |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12090 |
KE30..A20,K40;KE30..K50..4D |
1 | ||
| Common parts | ||||
| 62978-13010 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 93540-15012 | ||||
| 93610-15012 | ||||
| 94521-00600 | ||||

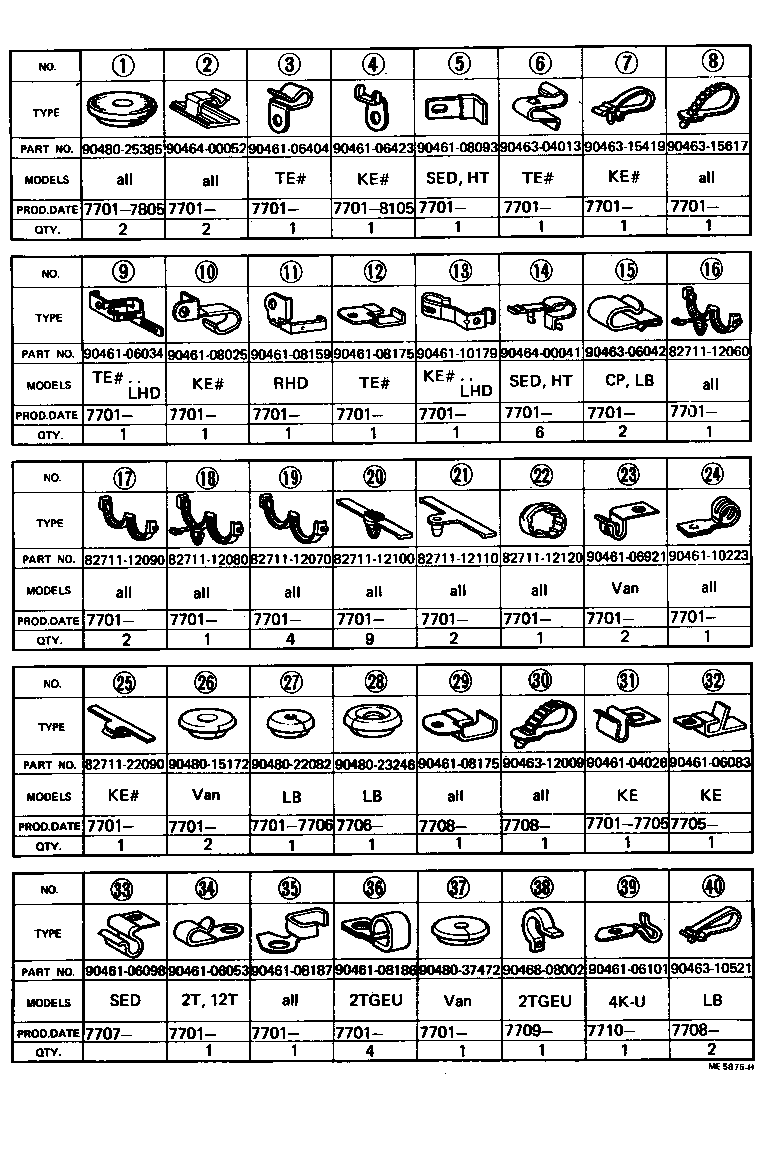

(7701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12060 | ||||
| 82711-12070 | ||||
| 82711-12080 | ||||
| 82711-12090 | ||||
| 82711-12100 | ||||
| 82711-12110 | ||||
| 82711-12120 | ||||
| 82711-22090 | ||||
| 90461-04026 | ||||
| 90461-06034 | ||||
| 90461-06053 | ||||
| 90461-06083 | ||||
| 90461-06098 | ||||
| 90461-06101 | ||||
| 90461-06404 | ||||
| 90461-06423 | ||||
| 90461-06921 | ||||
| 90461-08025 | ||||
| 90461-08093 | ||||
| 90461-08159 | ||||
| 90461-08175 | ||||
| 90461-08186 | ||||
| 90461-08187 | ||||
| 90461-10179 | ||||
| 90461-10223 | ||||
| 90463-04013 | ||||
| 90463-06042 | ||||
| 90463-10521 | ||||
| 90463-12009 | ||||
| 90463-15419 | ||||
| 90463-15617 | ||||
| 90464-00041 | ||||
| 90464-00052 | ||||
| 90468-08002 | ||||
| 90480-15172 | ||||
| 90480-22082 | ||||
| 90480-23246 | ||||
| 90480-25385 | ||||
| 90480-37472 | ||||

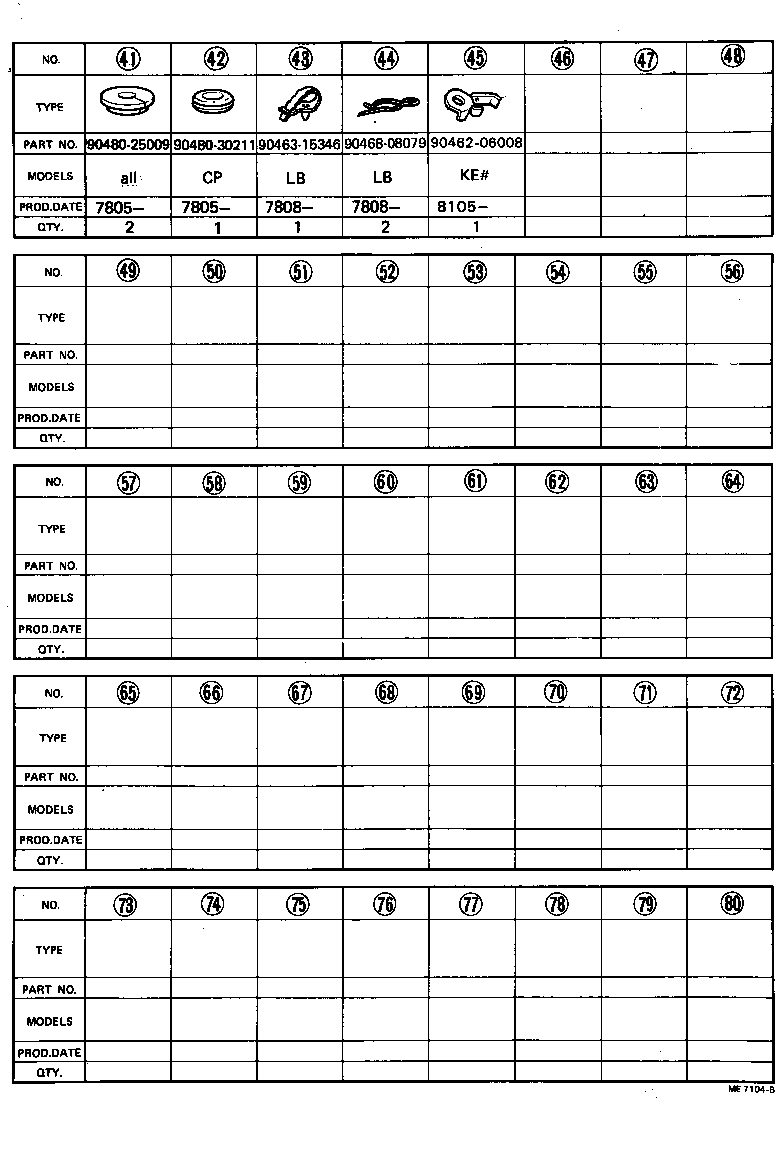

(7805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90462-06008 | ||||
| 90463-15346 | ||||
| 90468-08079 | ||||
| 90480-25009 | ||||
| 90480-30211 | ||||
